fix: draw no text shadow for text-shadow: none - #495
YevheniiKotyrlo wants to merge 4 commits into
Conversation
A box-shadow, text-shadow or drop-shadow() whose value is only known at runtime was matched against a fixed list of token orders. A spelling the list missed was dropped, `inset` without a colour was taken for the colour, and an omitted blur, spread or colour was left out where the compiler writes 0 and currentcolor. A colourless drop-shadow() became an empty filter entry, which React Native's processFilter throws on, and a lone length reached React Native as a number, which processBoxShadow throws on. All three now read their tokens through one reader: the lengths adjacent, a colour and `inset` on either side, in the counts lightningcss accepts for each property, with every shadow of a list read and an invalid one rejecting the whole value.

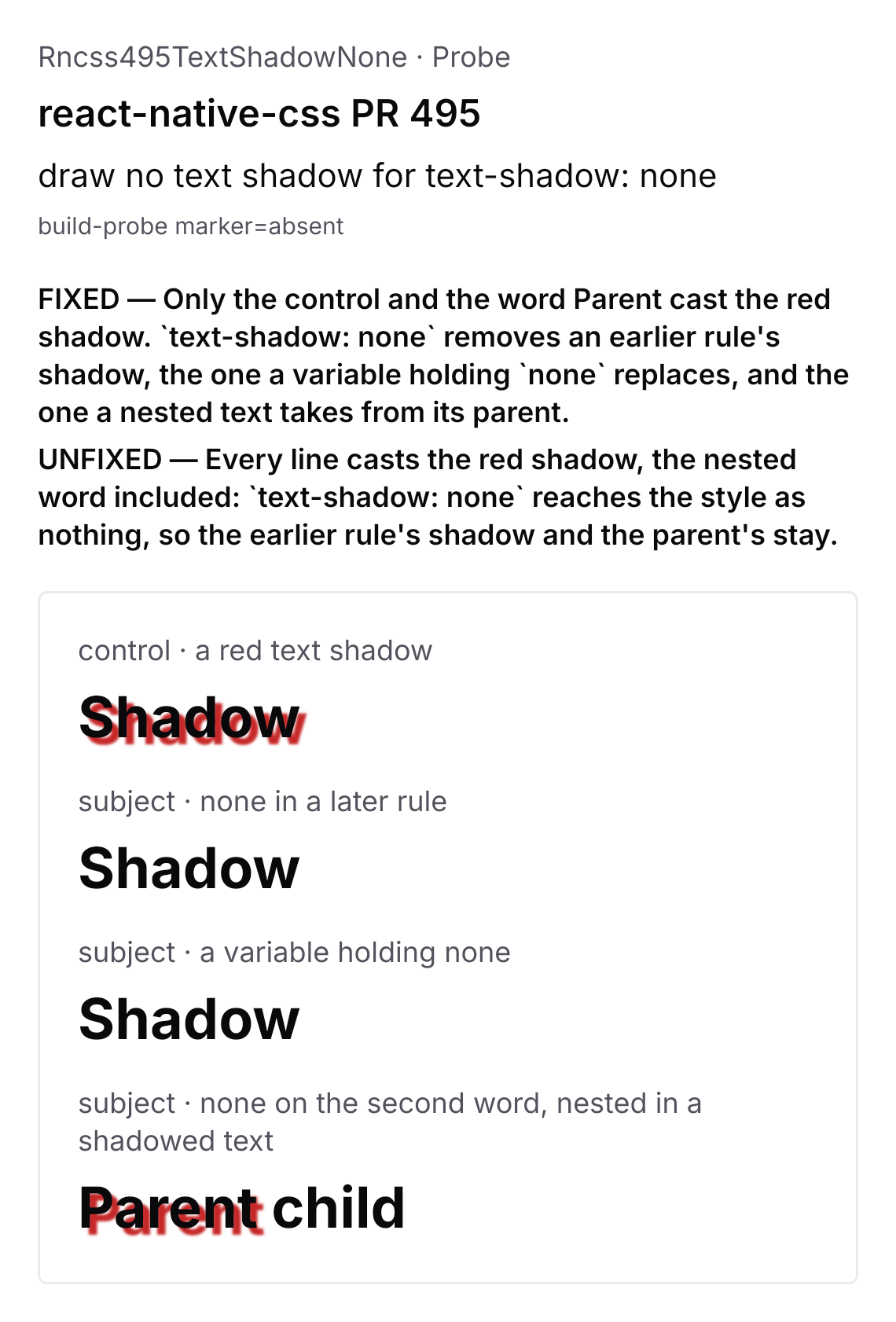

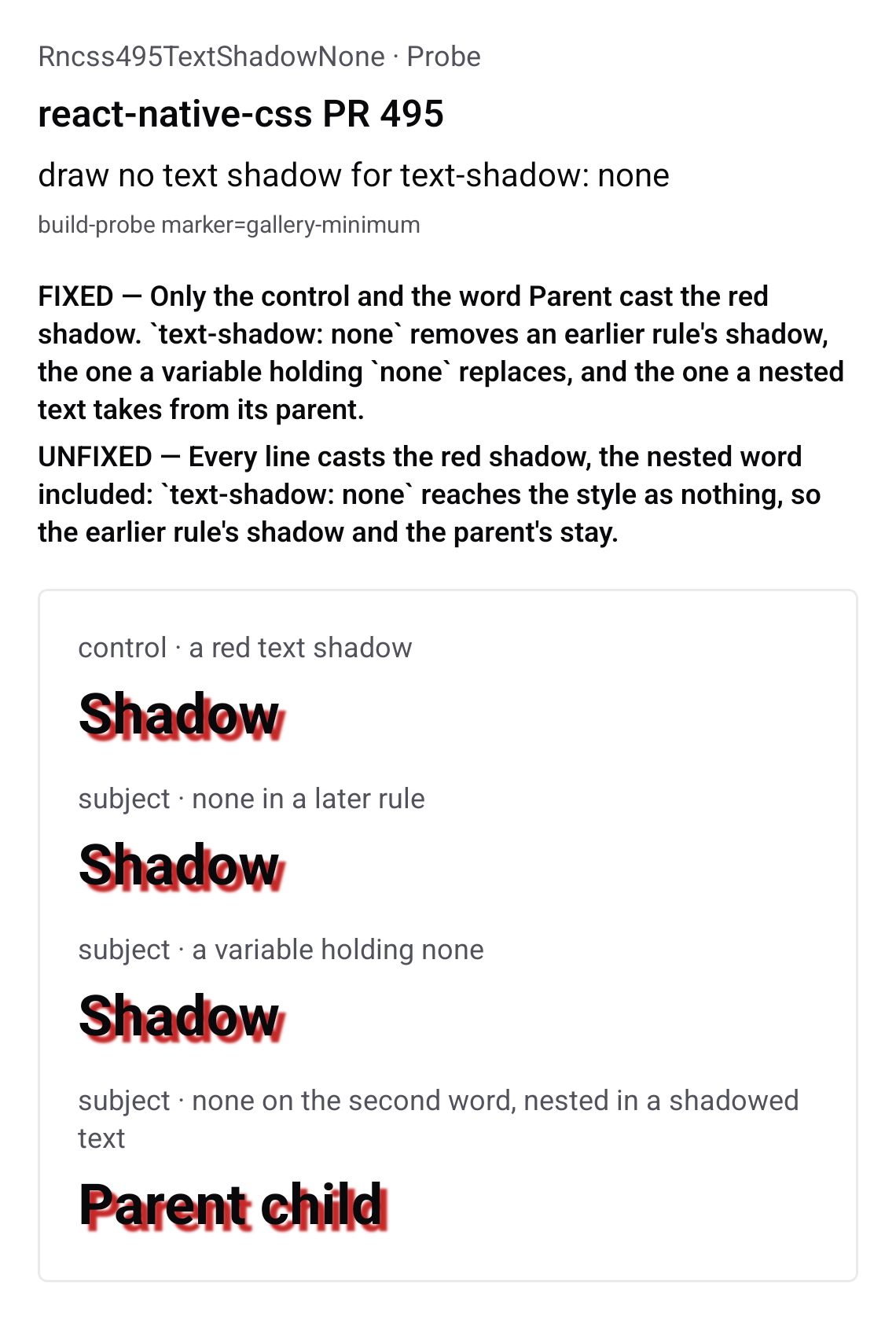

Device evidence — before / afterUNFIXED — Every line casts the red shadow, the nested word included: FIXED — Only the control and the word Parent cast the red shadow.
Android 16 emulator (API 36, GLES on the host GPU), 1140×2400 @ 480dpi, both frames from one run. The variable row's |
…r drop shadow does A written value that is not a shadow is invalid, and browsers ignore the declaration. A variable holding one leaves the declaration invalid at computed-value time, which browsers make unset (css-variables-1 §3.1). The reader can tell neither from the other, so every shadow it rejects sets nothing, and each test row asserts what browsers compute.
lightningcss hands `text-shadow: none` over unparsed, so it resolves at runtime, where the reader answered `none` with nothing: an earlier rule's text shadow survived where CSS removes it, and a nested Text kept its parent's. React Native has no `none`, so the reader writes a transparent shadow with no offset or blur, which draws nothing. The compiler also marked every runtime-parsed shorthand to resolve after the element's other declarations, which a value that reads no variable does not need; resolved there, an earlier rule's `none` would beat a later rule's shadow. Such a value now resolves in its cascade position.
Resolving a runtime-parsed shorthand in place lost what its delay gives a CSS-wide keyword: the placeholder that replaces an earlier rule's value, so `box-shadow: initial` after `box-shadow: 1px 1px red` kept the shadow. The delay stays. `text-shadow: none`, which lightningcss leaves unparsed, compiles instead to the no-shadow the runtime reader writes for a variable holding `none`, so it keeps its cascade position.
e1f0028 to
18f40b2
Compare
This branch has not been deployed
1 participant
Problem
text-shadow: nonenever removes a text shadow. lightningcss handsnoneover unparsed, so it resolves at runtime, and the runtime reader answers it with nothing:.shadowed { text-shadow: 1px 1px red } .plain { text-shadow: none }keeps the red shadow onclass="shadowed plain", and a nestedTextwithtext-shadow: nonekeeps its parent's. Chromium 153, Firefox 155 and WebKit 26.6 draw neither.Solution
React Native has no
none, and a nestedTextinherits every shadow prop its own style leaves unset, sononebecomes a transparent shadow with no offset or blur, which draws nothing and outranks the parent's.The compiler writes that for a literal
none: lightningcss leaves it unparsed, and resolved at runtime it would land after a later rule's text shadow, because a runtime-parsed declaration resolves after its element's others. The runtime reader writes the same for a variable holdingnone, and both read it fromNO_TEXT_SHADOWinsrc/utilities/text-shadow.ts.A variable holding something that is not a text shadow still leaves the earlier value in place, where CSS makes the declaration
unset; that holds for every property, so it is not part of this change. Until #474 lands, a variable holdingnonein an earlier rule still beats a later rule's shadow, as anytext-shadow: var()does.Tests
src/__tests__/native/text-shadow-none.test.tsxcoversnonein a later rule, on a child under a shadowed parent and in a variable resolved at runtime, a later rule's shadow over an earliernone, and a second element'snoneafter a shadow was written over the first's. 4 of the 5 fail on #489, and each of three mutations fails its own case: a literalnoneresolved at runtime, a reader that does not knownone, and the offset compiled as one object, which the later shadow then writes into.Merge order
Stacked on #489, whose text-shadow reader this changes, so #489 lands first.
It also shares lines with #389 (
compiler/declarations.ts,utilities/index.ts), #391 (compiler/declarations.ts,native/styles/functions/filters.ts,utilities/index.ts), #392 (native/styles/shorthands/box-shadow.ts), #393 (compiler/declarations.ts), #413 (compiler/declarations.ts,native/styles/shorthands/box-shadow.ts), #417 (compiler/declarations.ts), #420 (compiler/declarations.ts,utilities/index.ts), #491 (compiler/declarations.ts,utilities/index.ts), #492 (compiler/declarations.ts,utilities/index.ts), #494 (compiler/declarations.ts,utilities/index.ts); whichever lands second rebases.Verification
On Ubuntu with the workflow's steps - build, lint, typecheck,
yarn test,node --test node/__tests__/*.mjs, both library builds, the web export, the unstaged-changes checks and commitlint - everything passes.Device evidence, before and after: #495 (comment)
