fix(native): read a runtime shadow the way the compiler does - #489
YevheniiKotyrlo wants to merge 2 commits into
Conversation
A box-shadow, text-shadow or drop-shadow() whose value is only known at runtime was matched against a fixed list of token orders. A spelling the list missed was dropped, `inset` without a colour was taken for the colour, and an omitted blur, spread or colour was left out where the compiler writes 0 and currentcolor. A colourless drop-shadow() became an empty filter entry, which React Native's processFilter throws on, and a lone length reached React Native as a number, which processBoxShadow throws on. All three now read their tokens through one reader: the lengths adjacent, a colour and `inset` on either side, in the counts lightningcss accepts for each property, with every shadow of a list read and an invalid one rejecting the whole value.

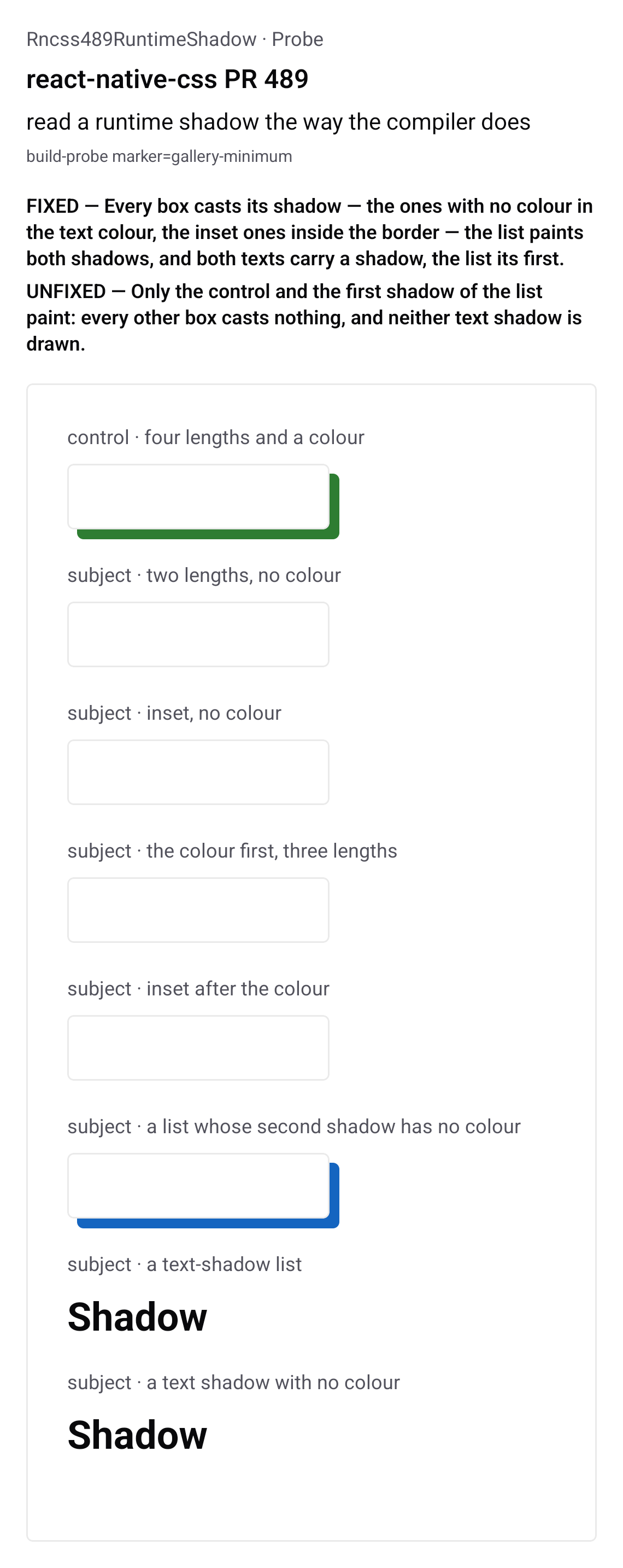

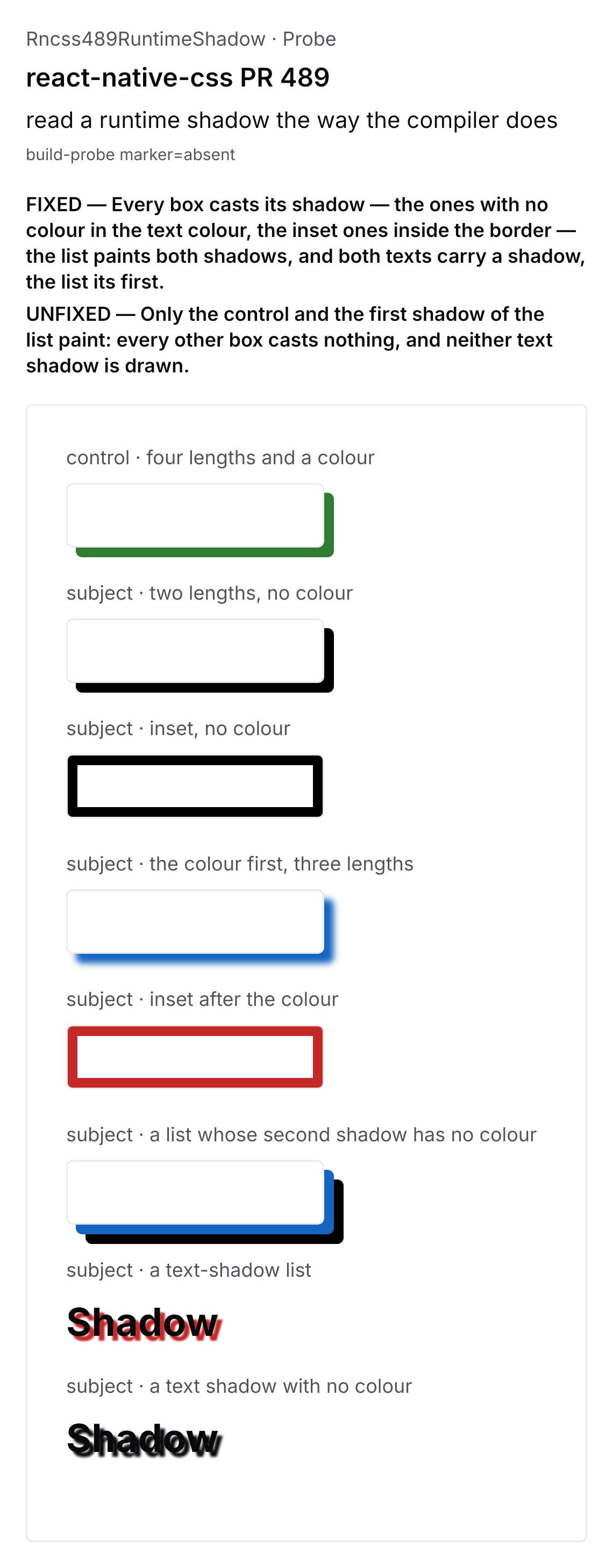

Device evidence — before / afterUNFIXED — Only the control and the first shadow of the list paint: every other box casts nothing, and neither text shadow is drawn. FIXED — Every box casts its shadow — the ones with no colour in the text colour, the inset ones inside the border — the list paints both shadows, and both texts carry a shadow, the list its first.
Android 16 emulator (API 36, GLES on the host GPU), 1140×2400 @ 480dpi, both frames from one run, each composed from scrolled slices because the scene is taller than the screen. Every shadow in the scene is held in a variable the stylesheet declares twice, so it resolves at runtime. |
…r drop shadow does A written value that is not a shadow is invalid, and browsers ignore the declaration. A variable holding one leaves the declaration invalid at computed-value time, which browsers make unset (css-variables-1 §3.1). The reader can tell neither from the other, so every shadow it rejects sets nothing, and each test row asserts what browsers compute.
This branch has not been deployed
1 participant
Problem
On native, a
box-shadow,text-shadowordrop-shadow()whose value is only known at runtime - a variable defined more than once, one with only an@propertyinitial value, or any variable underinlineVariables: false- is matched against a fixed list of token orders. CSS lets the colour andinsetsit on either side of the lengths, so most spellings miss the list:2px 2pxcurrentcolor[]#123456 2px 2px 4px[]inset 2px 2pxcolor: "inset", which React Native rejects, dropping every shadow in the list2px 2px #123456 inset[]2px 2px #123456, 4px 4px2px 2px 4px 1pxcurrentcolortext-shadow: 2px 2px 4pxdrop-shadow(2px 2px)[{}], whichprocessFilterthrows onThe runtime shadow also leaves out an omitted blur and spread where the compiler writes
0, an omittedtext-shadowcolour isblackwhere the compiler writescurrentcolor, and a lone length (--shadow: 2px) reaches React Native asboxShadow: 2, whichprocessBoxShadowthrows on. Tailwind'stext-shadow-md text-shadow-red-500draws no text shadow on native, because the colour utility moves the list to runtime.Solution
The three properties read their tokens through one reader,
shorthands/_shadow.ts: the lengths adjacent, a colour andinseton either side of them, in the counts lightningcss accepts for each property - four lengths andinsetforbox-shadow, four lengths fortext-shadow, three fordrop-shadow(). An omitted blur and spread are0and an omitted colour iscurrentcolor, so the runtime shadow is the object the compiler writes. Every shadow of a list is read, a variable that resolved to part of a shadow is spliced into it, and one invalid shadow makes the whole value invalid, which sets nothing: browsers ignore a written invalid shadow, and a variable holding one leaves the declaration invalid at computed-value time, which the reader cannot tell apart.text-shadowkeeps the first shadow, as the compiler does. Nothing usesshorthandHandler's"object"return any more, so it goes.Tests
src/__tests__/native/shadow-grammar.test.tsxruns every order of colour, lengths andinset, a list, a list held in another variable, a variable holding part of a shadow, and the invalid spellings - held in a variable forbox-shadowanddrop-shadow(), which leave no shadow, and written fortext-shadow, which leaves the earlier rule's - each with variables inlined and resolved at runtime, and with the sheet injected as compiled and as the JSON a device receives. Every expected value is what Chromium 153, Firefox 155 and WebKit 26.6 compute for the same CSS. Onmain122 of the 269 fail. The four runtime cases inbox-shadow.test.tsxthat pinned the old shape, the "known limitation" among them, now expect the compiler's, andeffects.test.tsxadds Tailwind'sinset-shadow-smandtext-shadow-mdwith a text-shadow colour, both failing onmain.Verification
On Ubuntu with the workflow's steps - build, lint, typecheck,
yarn test,node --test node/__tests__/*.mjs, both library builds, the web export, the unstaged-changes checks and commitlint - everything passes merged with #500. Without it,yarn testfails a random Tailwind case in a full run, the harness flake #500 removes.Device evidence, before and after: #489 (comment)
Not run: the iOS and Android example builds.
Unchanged: a negative blur, which lightningcss accepts, still passes through on both paths, and
text-shadow: nonestill sets nothing. A shadow split across two variables that each hold lengths (var(--offsets) var(--blur-spread)) still reads as two shadows, because the compiler stores it as the same list asvar(--a), var(--b).Also unchanged, outside the reader: a variable holding what is not a text shadow leaves an earlier rule's text shadow in place, where browsers make the declaration
unset(css-variables-1 §3.1) - #391 does that for every property. And a written invalidbox-shadowordrop-shadow()clears an earlier rule's value where browsers ignore the declaration, because the runtime holds the key with a placeholder until the value resolves and drops it when the value is invalid, and a filter list leaves out an entry its function rejects.Merge order
It shares lines with #391 (
native/styles/functions/filters.ts), #392 and #413 (native/styles/shorthands/box-shadow.ts); whichever lands second rebases. #413 moves the transparent-colour check intoutilities/transparent-color.ts, which this file then uses, and #391 resets a cleared shorthand insideshorthandHandler, whichtext-shadowno longer goes through, so whichever of the two lands second carries that reset intotext-shadow.ts.
