A Flutter package that provides two seek bar widgets:

• SeekBar: a lightweight progress bar with primary and secondary progress
• AdvancedSeekBar: an enhanced seek bar with indicator, ticks, discrete mode, thumb text, and richer callbacks

Features

• Dart 3 compatible
• Legacy SeekBar for simple media and buffered progress use cases
• AdvancedSeekBar for:
  • continuous or discrete progress
  • min/max value ranges
  • tick marks and tick texts
  • indicator text formatting
  • thumb text
  • RTL layout
  • richer callback payloads
  • interaction controls such as onlyThumbDraggable, seekSmoothly, and userSeekable

Installation

Add the package to your pubspec.yaml:

dependencies:
  seekbar: ^0.1.1

Then run:

flutter pub get

Import

import 'package:seekbar/seekbar.dart';

Basic SeekBar

Use SeekBar when you only need primary progress and buffered progress.

class BasicSeekBarDemo extends StatefulWidget {
  const BasicSeekBarDemo({super.key});

  @override
  State<BasicSeekBarDemo> createState() => _BasicSeekBarDemoState();
}

class _BasicSeekBarDemoState extends State<BasicSeekBarDemo> {
  double _value = 0.35;
  double _buffered = 0.70;

  @override
  Widget build(BuildContext context) {
    return ColoredBox(
      color: Colors.black87,
      child: Padding(
        padding: const EdgeInsets.symmetric(horizontal: 24),
        child: SeekBar(
          value: _value,
          secondValue: _buffered,
          progressColor: Colors.lightBlueAccent,
          secondProgressColor: Colors.lightBlueAccent.withAlpha(89),
          barColor: Colors.white24,
          thumbColor: Colors.white,
          onStartTrackingTouch: () {
            debugPrint('drag start');
          },
          onProgressChanged: (value) {
            setState(() {
              _value = value;
              if (_buffered < value) {
                _buffered = value;
              }
            });
          },
          onStopTrackingTouch: () {
            debugPrint('drag end');
          },
        ),
      ),
    );
  }
}

AdvancedSeekBar

Use AdvancedSeekBar when you need discrete steps, indicator UI, or richer interaction behavior.

class AdvancedSeekBarDemo extends StatefulWidget {
  const AdvancedSeekBarDemo({super.key});

  @override
  State<AdvancedSeekBarDemo> createState() => _AdvancedSeekBarDemoState();
}

class _AdvancedSeekBarDemoState extends State<AdvancedSeekBarDemo> {
  double _value = 50;
  String _event = 'idle';

  @override
  Widget build(BuildContext context) {
    return AdvancedSeekBar(
      min: 0,
      max: 100,
      progress: _value,
      ticksCount: 5,
      showTickTexts: true,
      tickTexts: const ['XS', 'S', 'Medium', 'Large', 'XL'],
      tickMarkType: AdvancedSeekBarTickMarkType.square,
      showThumbText: true,
      indicatorType: AdvancedSeekBarIndicatorType.roundedRectangle,
      indicatorAlwaysShown: true,
      indicatorTextFormat: 'size ${AdvancedSeekBarFormat.tickText}',
      onSeeking: (value) {
        setState(() {
          _value = value.progressDouble;
          _event =
              'progress=${value.progressDouble}, index=${value.thumbIndex}, tick=${value.tickText}';
        });
      },
      onStartTrackingTouch: () {
        setState(() {
          _event = 'start';
        });
      },
      onStopTrackingTouch: () {
        setState(() {
          _event = 'stop';
        });
      },
    );
  }
}

Available AdvancedSeekBar capabilities

• min, max, progress
• progressValueFloat
• ticksCount, showTickTexts, tickTexts
• tickMarkType, tickMarksEndsHide, tickMarksSweptHide
• showThumbText
• indicatorType, indicatorAlwaysShown, indicatorTextFormat
• seekSmoothly, thumbAdjustAuto, userSeekable, onlyThumbDraggable
• r2l
• onChanged, onSeeking, onStartTrackingTouch, onStopTrackingTouch

Callback payload

AdvancedSeekBar exposes AdvancedSeekBarValue during onSeeking:

AdvancedSeekBar(
  onSeeking: (value) {
    debugPrint('progress: ${value.progress}');
    debugPrint('progressDouble: ${value.progressDouble}');
    debugPrint('fromUser: ${value.fromUser}');
    debugPrint('thumbIndex: ${value.thumbIndex}');
    debugPrint('tickText: ${value.tickText}');
  },
)

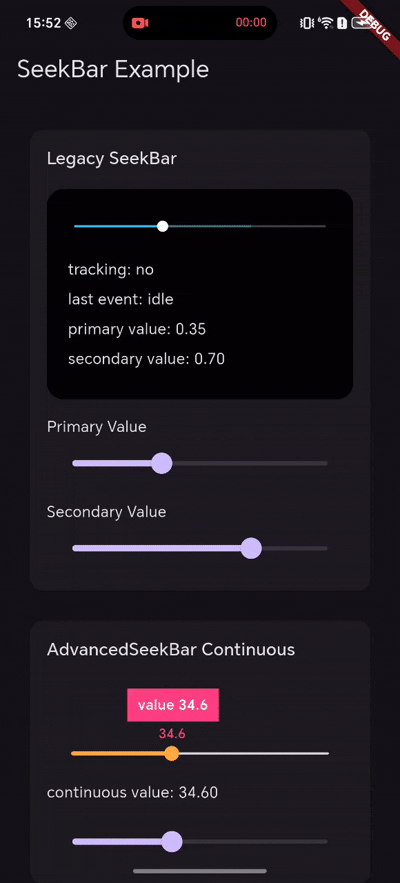

Example app

The repository includes a runnable example application that demonstrates:

• legacy SeekBar
• continuous AdvancedSeekBar
• callback inspection
• hidden interaction parameters such as seekSmoothly, thumbAdjustAuto, and userSeekable

Run it with:

cd example
flutter run

Current scope

The Flutter port already covers the main seek bar interaction patterns, but it does not yet fully mirror every Android IndicatorSeekBar customization API. In particular, custom indicator views, drawable-based thumb/tick assets, and per-section track color builders are not implemented yet.

License

MIT
