feat: reusable AI agent steps with hybrid linking and evals

[rubenfiszel]

Summary

Makes an AI agent a savable, shareable, evaluable artifact instead of inline-only config. An agent is stored as a resource of a new built-in ai_agent resource type bundling its brain (provider/model, system prompt, temperature, output schema, memory…), its tools, and an eval suite. A flow step can link to a saved agent — the brain + tools resolve at runtime from the resource (so edits propagate), while the flow keeps only the local user_message/user_attachments wiring.

Changes

Backend

• FlowModuleValue::AIAgent gains an optional agent field (resource path) for hybrid linking; threaded through the custom deserializer + lockfile resolver. Existing flows are byte-compatible (skip_serializing_if).
• Runtime resolution in windmill-worker/src/ai_executor.rs: a linked step loads brain config + tools from the resource via get_resource_value_interpolated (nested provider $res: resolves for free) and overlays the flow-local inputs.
• Migration 20260627124035_ai_agent_resource_type seeds the ai_agent resource type into the admins workspace (visible everywhere via the list_resource_types admins-union).
• New windmill-api/src/ai_agents.rs: POST /ai_agents/run and /ai_agents/eval_case. Runs an agent by pushing a single-step AIAgent flow-preview job (reuses push + run_wait_result_internal, permissioned as the caller — no new job payload, no privilege escalation). Grading = deterministic assertions (contains/regex/json_path_equals/…) + an LLM judge that itself runs as an inline AIAgent step with a structured {score,pass,summary} schema. Unit-tested.
• Eval-suite types in windmill-ai/src/types.rs; OpenAPI updated.

Frontend

• flows/agentResourceUtils.ts — config↔input_transforms conversion + flow-local schema filter.
• flows/content/AgentResourceBar.svelte — Save as agent / pick a saved agent / Unlink, in the Step Input tab; brain config collapses to the flow inputs when linked. Warns if a non-static brain transform would be dropped on save.
• flows/content/AgentEvalsPanel.svelte — Evals tab: case CRUD (input message, judge checklist, assertions) + Run via the typed AiAgentService.
• Wired into FlowModuleComponent.svelte; docs/reusable-ai-agents.md.

Screenshots

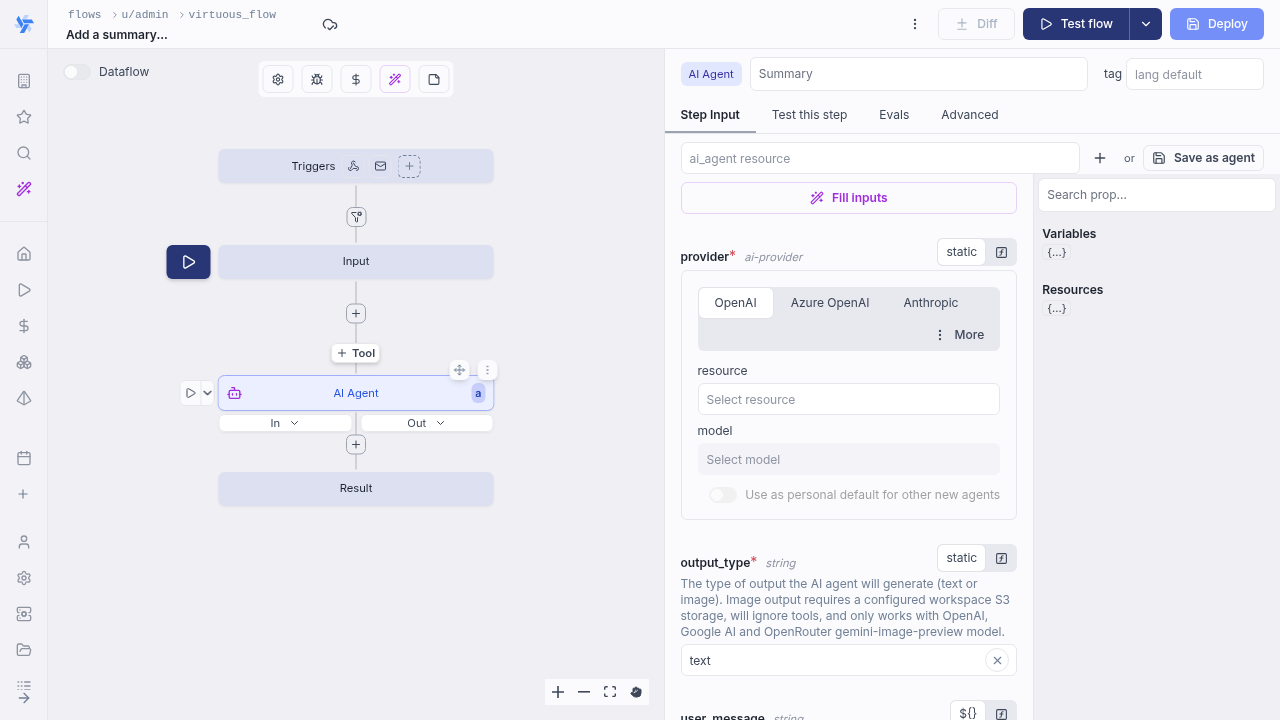

AgentResourceBar (resource picker + "Save as agent") and the new Evals tab in the AI agent step.

Linked state: banner + Unlink, brain config hidden, only flow-local inputs remain.

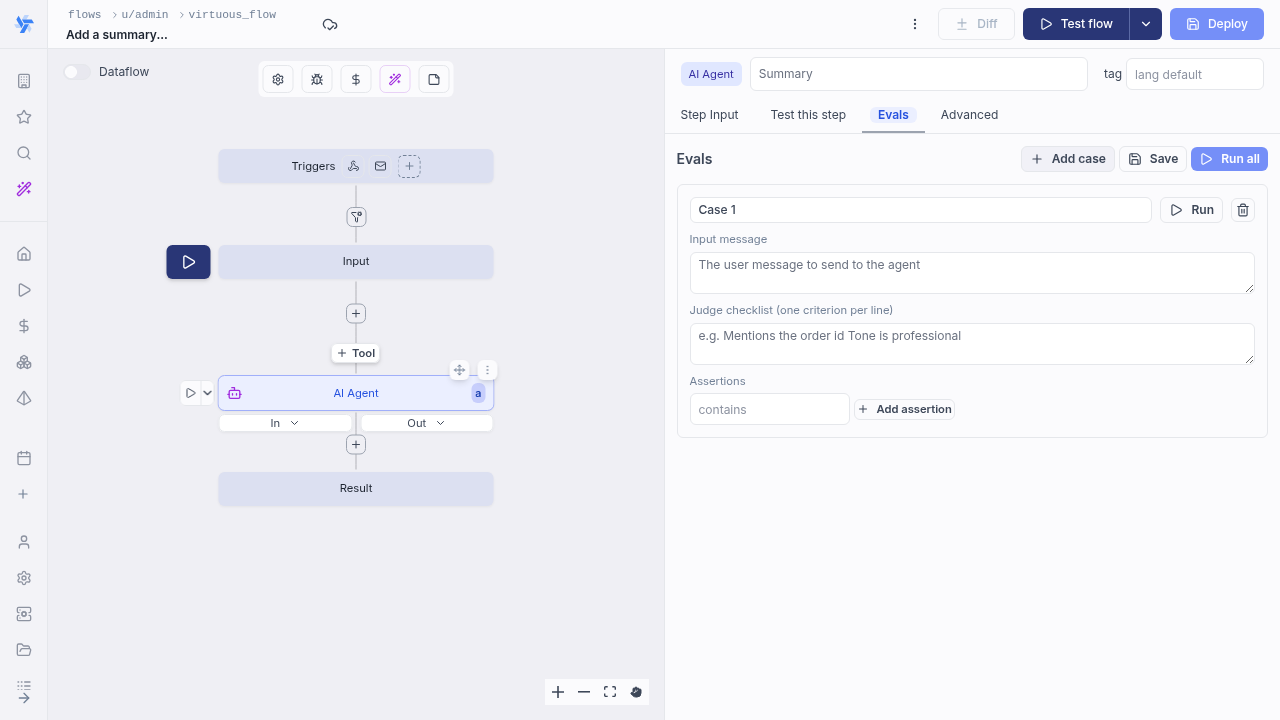

Evals tab: a case with input message, judge checklist, and assertions editor.

Test plan

• cargo check (full backend) green; windmill-api unit tests for the grading logic pass (6 tests)
• Frontend check:fast clean
• Playwright: add AI agent step → Save as agent creates ai_agent resource (verified shape in Postgres) → linked banner + Unlink, brain hidden → Evals tab case editor renders
• Run a live eval/agent with a configured AI provider (not exercised — needs an API key + tokens): confirm pass/fail badge, judge score, latency, per-assertion results; and that a linked agent step in a real flow run resolves the provider's nested $res: under the caller's permissions
• Pick an existing saved agent via the resource picker; Unlink and confirm brain+tools copy back into the step preserving flow-local inputs

🤖 Generated with Claude Code

---

Summary by cubic

Make AI agents reusable. Flow steps can link to a saved ai_agent so updates propagate, and you can run evals with assertions and an LLM judge.

• New Features

  • New ai_agent resource type (brain config, tools, eval suite). AI Agent steps accept an agent link.
  • At runtime, provider/model/tools come from the resource; flows keep only user_message and user_attachments.
  • API: POST /w/{workspace}/ai_agents/run and /w/{workspace}/ai_agents/eval_case to run an agent or grade a case (assertions + LLM judge returning {score, pass, summary}), executed as the caller.
  • Frontend: “Save as agent”, “Use saved agent”, and “Unlink” in Step Input; when linked, only flow‑local inputs are shown. New Evals tab to author cases and run them.
  • Worker resolves linked agent config and overlays flow inputs; OpenAPI/docs updated; grading logic unit‑tested.

• Migration

  • Seeds built‑in ai_agent resource type in admins (visible to all workspaces).
  • Backward compatible: existing flows unchanged; tools default to empty; linking is optional.

^{Written for commit fb25ea8. Summary will update on new commits.}
