feat(webapp): read a file with the whole browser window (BEA-195)

[ssowonny]

TL;DR

• Reading a wide CSV, a big diagram, a rendered HTML file or a PDF through the app's letterbox is over: there's a fullscreen control on every file page.
• It's a URL: ?full=1. Copy it, send it, and a teammate lands fullscreen on the same file — which is what the issue actually asked for.
• Exit button, Esc, or browser Back all leave. The button is always on screen because Esc genuinely cannot reach us from inside the HTML sandbox or the PDF viewer.
• Your scroll position survives both directions — the trap here is that adding a query param looks like a brand-new route to the scroll machine.
• Most of this was written earlier and never opened as a PR; I rebased it onto main, resolved the conflicts, and found one real bug it couldn't have known about (below).

Before / after

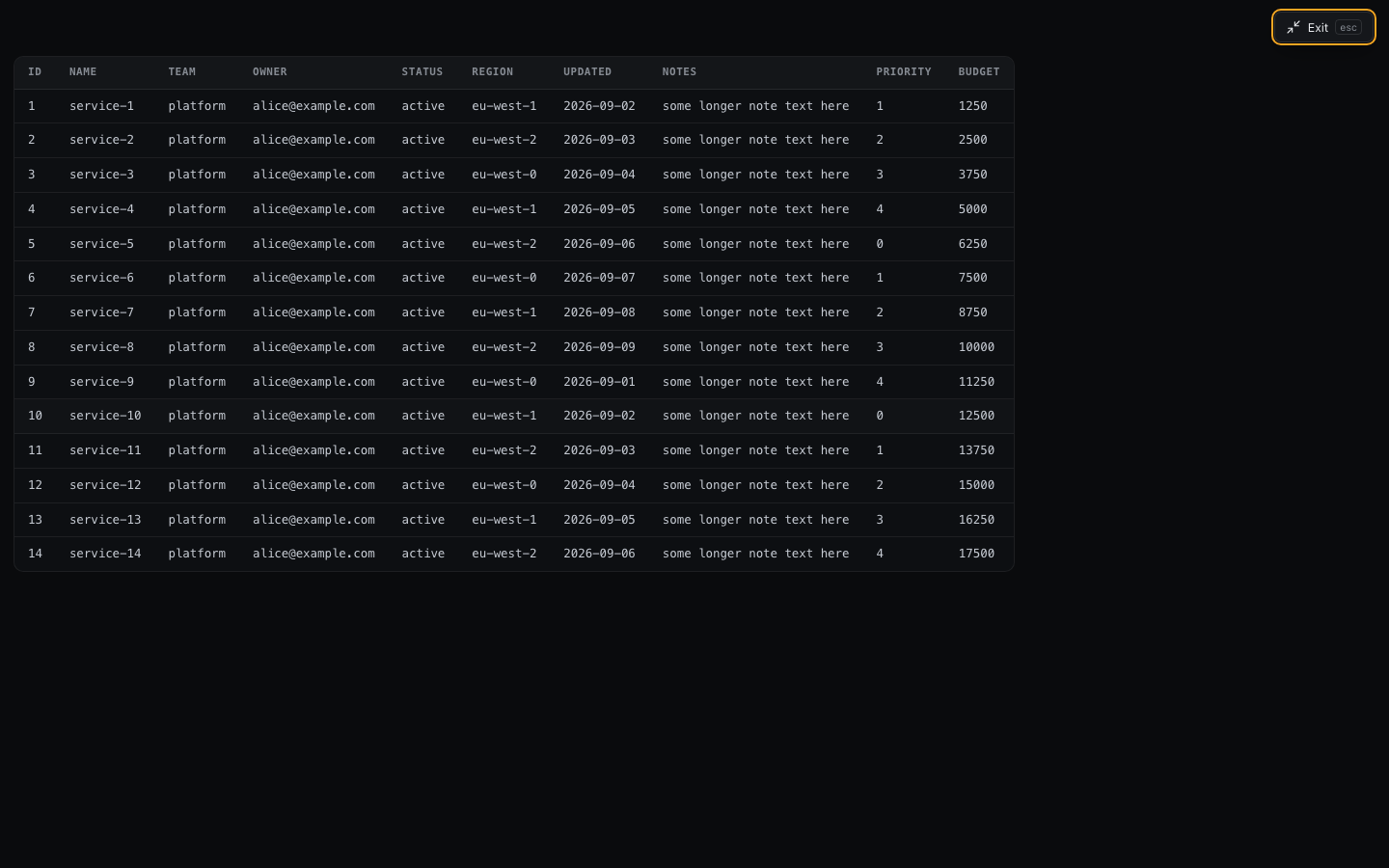

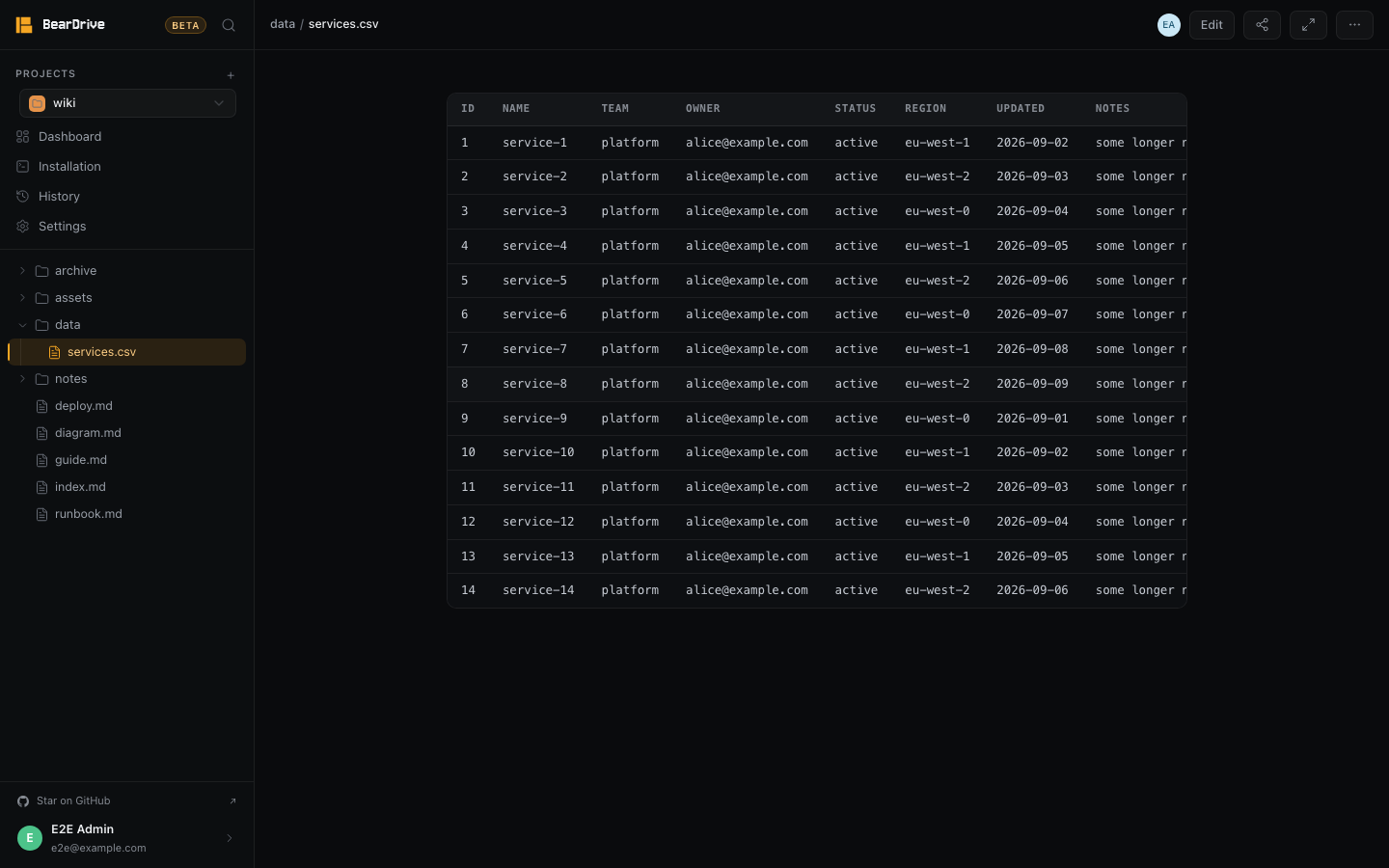

A 10-column CSV at 1440px. Today it's clipped at the reading column; with ?full=1 every column fits.

Today	?full=1

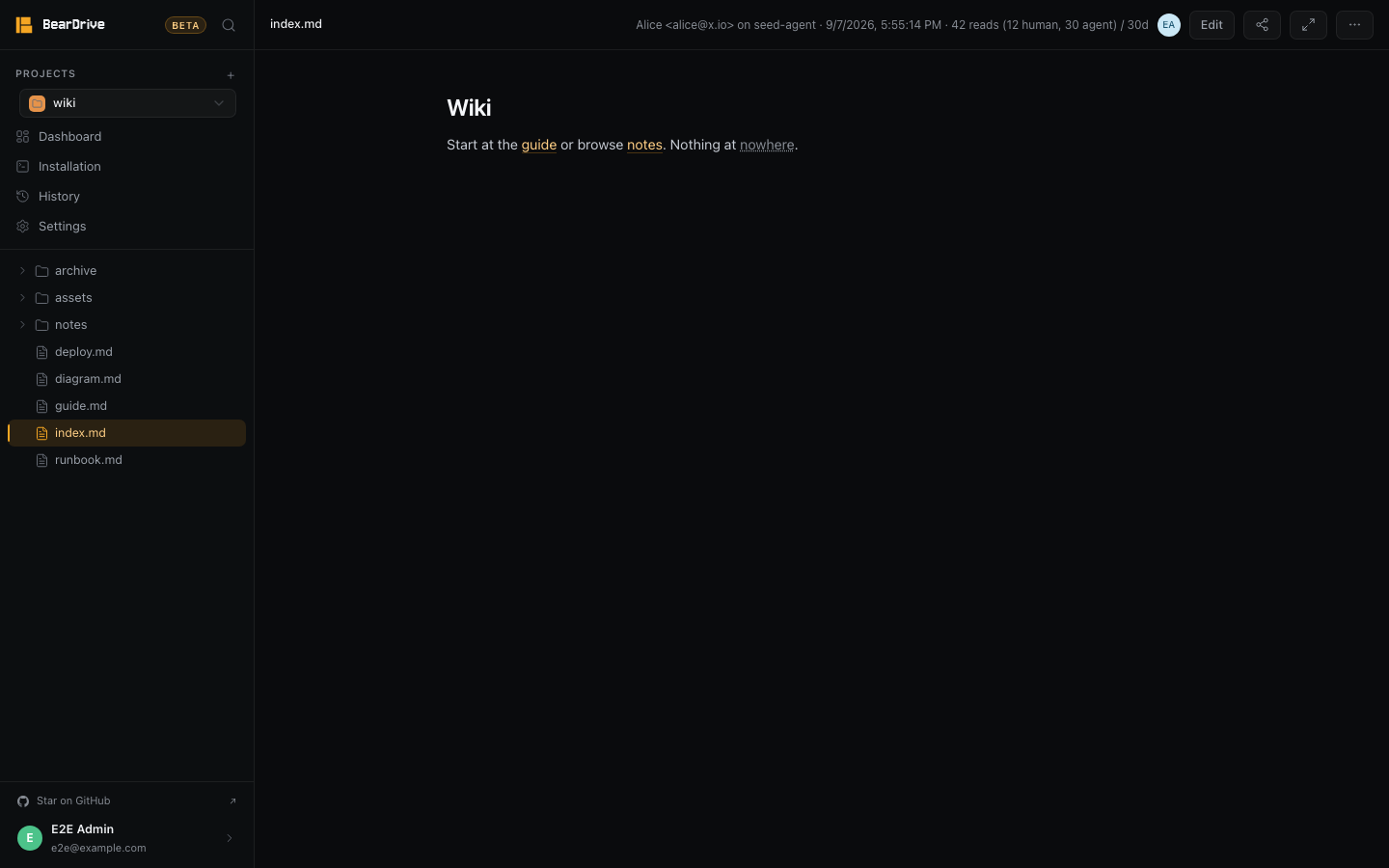

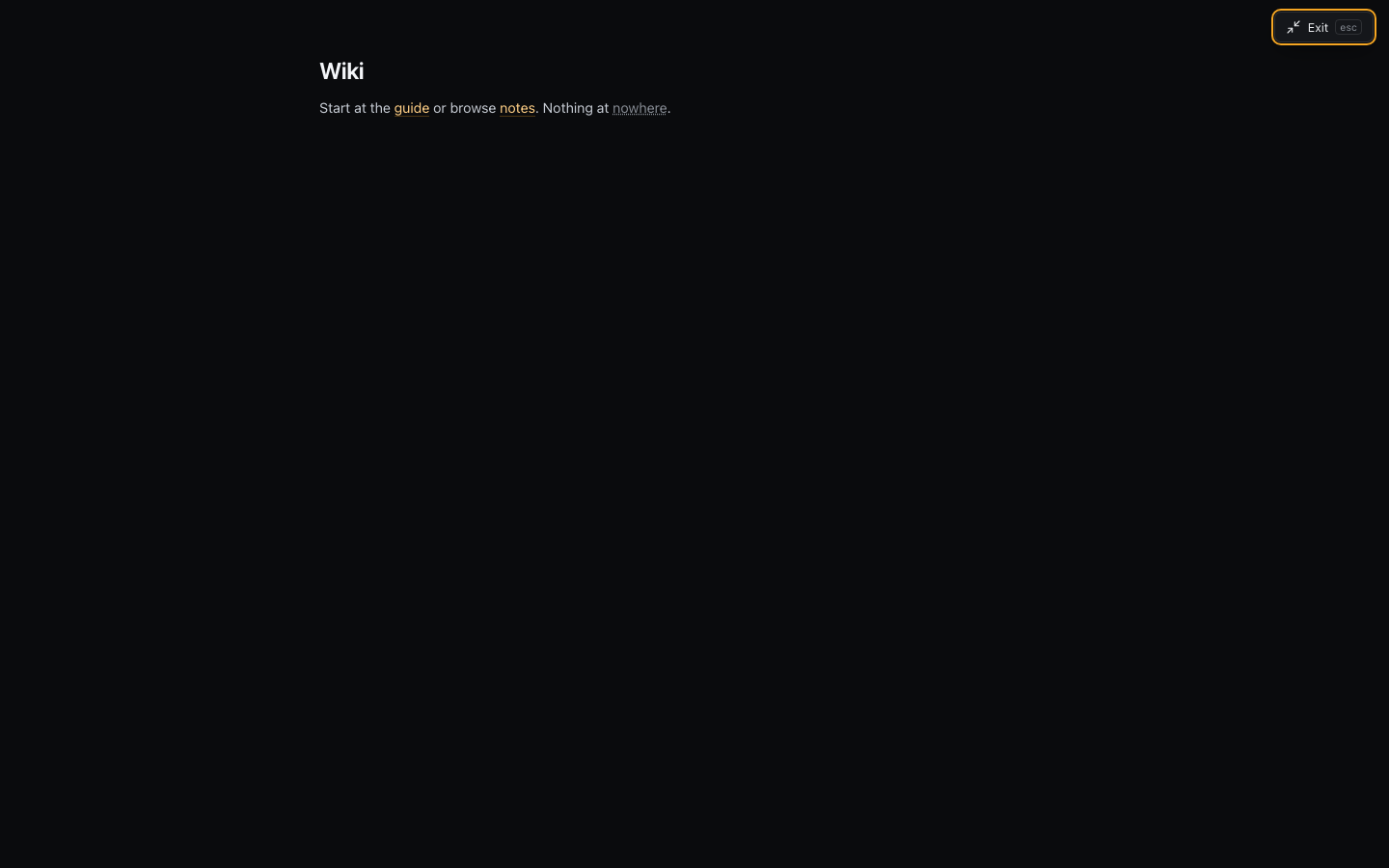

Markdown deliberately keeps its 768px measure — a 2000px line of prose is unreadable, so what prose gains here is the removed chrome, not a wider column:

Today	?full=1

Why a query param

The first path segment after the project id is reserved for view names, and a file path already occupies that slot. ?v=<sha> is the existing precedent and the reasoning is identical: a fullscreen file is the same page with different chrome, exactly as a pinned version is the same page with older bytes. The two compose — ?v=<sha>&full=1 reads a past version fullscreen, banner and all.

The two traps, both real

1. Entering fullscreen threw the reader to the top of the document. routeKey is useLocationPath() — pathname plus search — so a ?full=1 push looked like a fresh route and armed a scroll goal of 0. You ask for more of a document and lose your place in it. Fixed by keying the scroll memo on withoutFull(...), so entering and leaving land in the same slot.

2. Esc can never reach the app from inside an HTML or PDF file. Those render in iframes — HTML under sandbox="allow-scripts" (an opaque origin), PDF as the browser's own viewer. Key events don't cross that boundary. So the Exit control is rendered by AppShell outside the topbar it hides, painted over the content, always visible and never a hover reveal. It is the only exit that works from inside one.

The chrome is hidden by a body class, never unmounted: <article id="content"> survives the toggle and keeps its scrollTop for free, and display: none takes the hidden controls out of the tab order and the accessibility tree together — the same lesson syncSidebarInert already encodes for the off-canvas sidebar.

The bug the earlier work could not have known about

Fullscreen and the print view (BEA-219, merged a few hours ago) overlap: #exit-full is position: fixed over the content, so printing a file opened fullscreen stamped the Exit button onto the page, above a blank strip reserved for it. It's now in the print block's hidden-chrome list with its padding dropped, and there's a regression test — verified to fail when the rule is removed.

Testing

• e2e/fullscreen.spec.ts — 11 specs, one per acceptance criterion: chrome hidden, pasted link with no flash, ?v= composition, Esc/Back/Exit, scroll preserved both directions, no refetch on toggle, Exit over the HTML and PDF iframes, tab order and focus, markdown measure vs HTML frame height, below the 900px breakpoint, and folders/view routes ignoring ?full=1.
• router.test.ts — full parsed, round-tripped, surviving alongside ?v=, and withoutFull idempotent. 138 unit tests pass.
• Full e2e: 236 passed. The 7 admin/org failures reproduce identically on clean main (an org-rename test cascading) — I baselined that with a full run earlier today.
• go test ./... green. check-dist.sh reports the committed bundle fresh.

Architecture changes

Browser gains the fullscreen capability and router gains Route.full, withoutFull, and a fourth urlForPath parameter. architecture/webapp-frontend.md is updated on the branch; excerpt of the change:

✅ added · ❌ removed (strikethrough) · unmarked = unchanged

flowchart TB
    Browser["<div style='text-align:left'><b>Browser</b><br/>folder listing, file view<br/>per-view routes<br/>+moved: /resolve?path= on a tree miss only<br/>+scroll restoration: contentRef, memo, goal from lib/scroll<br/><span style='background:#22c55e55;padding:0 4px;border-radius:3px'>✅ +fullscreen: body.full-view from route.full, Exit / Esc / Back</span></div>"]
    router["<div style='text-align:left'><b>router</b><br/>+parseRoute(url, mode) Route<br/>+Route.version ?v= sha, one past version<br/><span style='background:#22c55e55;padding:0 4px;border-radius:3px'>✅ +Route.full ?full=1, the file page with the chrome hidden</span><br/>+Route.trailingSlash / Route.queryTarget / Route.filters<br/>+historyFilterQuery(filters) / hasHistoryFilters<br/><span style='background:#ef444455;padding:0 4px;border-radius:3px'>❌ <s>+urlForPath(path, projectId, version)</s></span><br/><span style='background:#22c55e55;padding:0 4px;border-radius:3px'>✅ +urlForPath(path, projectId, version, full)</span><br/><span style='background:#22c55e55;padding:0 4px;border-radius:3px'>✅ +withoutFull(url) the same URL minus full — the scroll memo key</span><br/>+urlForView(...) / encodePath / decodePath<br/>+projectByName(projects, seg)</div>"]
    Why["✅ withoutFull exists for the scroll memo.<br/>routeKey is pathname+search, so a ?full=1 push<br/>looked like a fresh route and armed a goal of 0 —<br/>the reader was thrown to the top of the document<br/>the moment they asked for more of it."]
    Browser --> router
    Browser -.- Why
    classDef added fill:#22c55e22,stroke:#22c55e,stroke-width:2px
    classDef noteBox fill:#88888822,stroke:#888888,stroke-dasharray:2 2
    class Why added

Loading

Closes BEA-195.
