VCF Host Preparation and Commissioning

Two PowerShell scripts that automate ESXi host preparation and commissioning for VMware Cloud Foundation 9 / SDDC Manager.

Script	Version	Purpose
HostPrep.ps1	4.4.0	Prepares ESXi hosts — DNS, NTP, certificates, storage detection, disk wipe, advanced settings, password reset
Commission-VCFHosts.ps1	3.1.4	Commissions prepared hosts into SDDC Manager via the REST API

Run HostPrep.ps1 first, then hand the generated CSV to Commission-VCFHosts.ps1.

---

HostPrep.ps1

What it does

Reads a plain text file with one ESXi FQDN per line and runs the following steps on each host in order:

1. DNS validation — forward A record and reverse PTR lookup; flags mismatches before anything else runs
2. Connect — connects directly to the host using the root account via PowerCLI
3. NTP — prompts for the NTP server(s) if -NtpServers was not supplied, then verifies they are configured and ntpd is running and set to start automatically
4. Advanced Settings — sets Config.HostAgent.ssl.keyStore.allowSelfSigned = true, required by SDDC Manager
5. Optional Advanced Settings — applies any extra settings that are enabled, either in the script's built-in block or in an external settings file (see below)
6. Storage type detection — detects the primary storage type for the commissioning CSV (see below) 6b. vSAN disk wipe (optional, -WipeDisk only) — enumerates non-boot disks with existing partitions and wipes them via partedUtil over SSH, preparing disks for clean vSAN commissioning (see below)
7. Certificate regeneration — reads the TLS certificate from port 443 and checks whether the CN matches the host FQDN. If not: temporarily enables SSH, runs /sbin/generate-certificates via the built-in Windows OpenSSH client, disables SSH, reboots, waits for the host to return online. If the host's own configured hostname disagrees with the host list (a fresh host still calling itself localhost.localdomain, say), the script offers to correct it first — see below
8. Password reset (optional) — resets the root password to a VCF 9 compliant value; always runs last so the existing credential stays valid throughout

After all hosts are processed:

• A colourised summary table is printed to the console

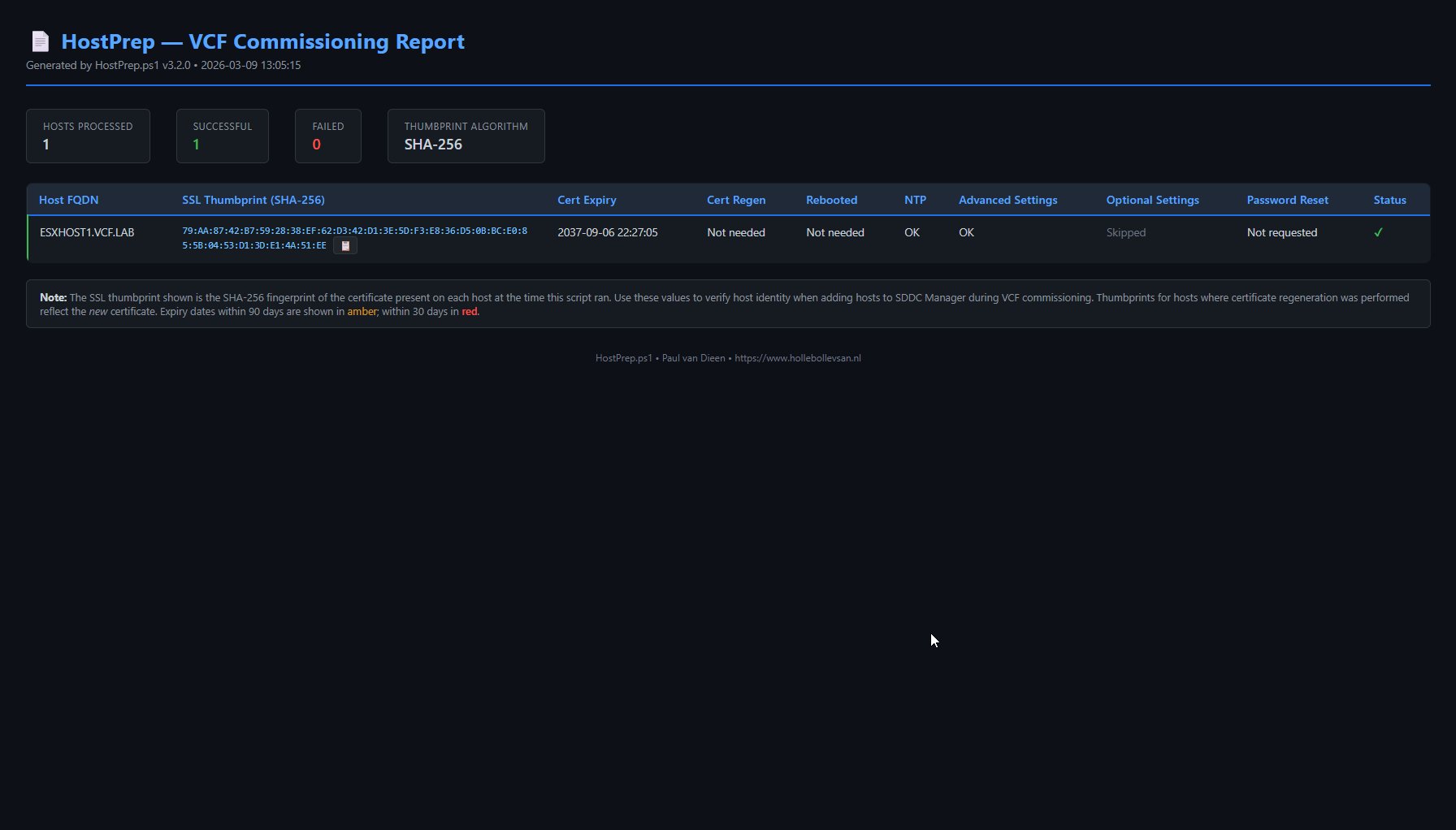

• A self-contained HTML commissioning report is saved next to the script with SHA256 thumbprints, cert expiry, DNS status, and per-step results
• A commissioning CSV is saved for use by Commission-VCFHosts.ps1

vSAN disk wipe

Use -WipeDisk to clean disks on hosts that were previously part of a vSAN cluster before recommissioning them into VCF. The script:

1. Enumerates all storage devices via esxcli
2. Identifies and unconditionally excludes the boot disk (IsBootDrive flag; falls back to ≤ 8 GB size heuristic if the flag is not set)
3. Lists all non-boot disks with existing partition tables
4. Prompts Y/N per host before wiping anything
5. Unmounts any VMFS datastores on target disks via SSH (esxcli storage vmfs unmount) — no vCenter connection required
6. Wipes partition tables via SSH: partedUtil mklabel <device> gpt
7. Disables SSH again when done

Only runs for hosts detected as VSAN. Skipped automatically for VMFS_FC and NFS hosts.

Requires the Windows OpenSSH client (ssh.exe). Without it the script prints per-host manual SSH instructions instead of failing.

# Wipe vSAN disks during host prep
.\HostPrep.ps1 -WipeDisk

# Dry run -- shows which disks would be wiped, no changes made
.\HostPrep.ps1 -WipeDisk -DryRun

Boot disk is always protected. It is excluded at enumeration time and never reaches partedUtil regardless of the Y/N answer.

ESXi hostname mismatch

/sbin/generate-certificates builds the certificate CN from the host's own configured hostname, not from whatever you put in the host list. So a freshly imaged host that still calls itself localhost.localdomain will keep minting localhost.localdomain certificates no matter how many times you regenerate — and each attempt costs a reboot.

When the configured hostname disagrees with the host list, HostPrep offers to fix it:

  ESXi hostname 'localhost.localdomain' does not match expected FQDN 'esxi01.vcf.lab'.
  Fix the hostname on esxi01.vcf.lab so the certificate CN will match? [Y/N]: y
    Setting hostname : esxi01
    Setting domain   : vcf.lab
  Hostname updated to 'esxi01.vcf.lab'. Proceeding with certificate regeneration.

Y sets the hostname and domain from the host list (Set-VMHostNetwork), reads them back to confirm, then continues into certificate regeneration — which reboots the host anyway, so the rename costs no extra reboot. N keeps the old behaviour: regeneration is skipped and the host is flagged CN mismatch in the report. Hosts are never renamed silently.

Hosts on DHCP cannot be fixed this way. If the host obtains its DNS settings from DHCP, it takes its hostname and domain from there too — ESXi accepts a hostname set via Set-VMHostNetwork and silently ignores it. The script detects this and tells you to switch the host to static DNS first (Networking > TCP/IP stacks > Default > Edit settings > Enter settings manually). A VCF host should not depend on DHCP for its identity in any case.

Storage type detection

After connecting to each host, HostPrep.ps1 detects the storage type and writes it to the commissioning CSV:

Detected value	Condition
VMFS_FC	Fibre Channel HBA present
NFS	NFS datastore mounted
VSAN	Default — all other hosts (unclaimed disks)

vSAN OSA vs ESA cannot be auto-detected. On a freshly prepped host disks are unclaimed — no disk groups or storage pools exist yet. If VSAN_ESA or VVOL is intended, edit the StorageType column in the generated CSV before running Commission-VCFHosts.ps1. That script reads the value as-is without prompting.

Requirements

Requirement	Notes
PowerShell 5.1	Included with Windows 10 / Server 2016 and later
VMware PowerCLI	Install-Module -Name VMware.PowerCLI -Scope CurrentUser. Install it for the same PowerShell edition you run HostPrep with — a copy under Windows PowerShell 5.1 is not visible to PowerShell 7, and vice versa. The script checks for PowerCLI at startup and exits with the install command if it is missing
OpenSSH Client	Standard on Windows 10 1809+ / Windows 11 — required for automated cert regen and -WipeDisk. If missing: Add-WindowsCapability -Online -Name OpenSSH.Client~~~~0.0.1.0

One-time PowerCLI setup (run once per user account):

Set-PowerCLIConfiguration -Scope User -ParticipateInCEIP $false -Confirm:$false

SSH authenticates with the root password via ssh.exe's SSH_ASKPASS helper — no key setup, no manual steps, no extra modules. (Earlier versions installed a throwaway ed25519 public key over HTTPS; ESXi 9 removed the /host/ssh_root_authorized_keys endpoint that relied on, so password auth over the built-in client is used instead — see issue #3.) Without the OpenSSH client the script prints per-host manual instructions for the certificate and disk wipe steps.

Usage

# Interactive -- all prompts at runtime
.\HostPrep.ps1

# Custom NTP servers
.\HostPrep.ps1 -NtpServers "ntp1.example.com","ntp2.example.com"

# Simulate all steps without making any changes
.\HostPrep.ps1 -DryRun

# Collect thumbprints and generate report/CSV without making any changes
.\HostPrep.ps1 -WhatIfReport

# Wipe vSAN disks during prep (prompts Y/N per host)
.\HostPrep.ps1 -WipeDisk

# Dry run with disk wipe simulation
.\HostPrep.ps1 -WipeDisk -DryRun

Parameters

Parameter	Type	Default	Description
-NtpServers	string[]	pool.ntp.org	One or more NTP server addresses. If omitted, the script prompts before touching any host, with pool.ntp.org as the default that Enter accepts
-DryRun	switch	—	Simulate all steps, no changes made
-WhatIfReport	switch	—	Read thumbprints and generate report/CSV without changes
-LogPath	string	Next to script	Path for the transcript log
-ReportPath	string	Next to script	Path for the HTML commissioning report
-WipeDisk	switch	—	Wipe non-boot partitioned disks on VSAN hosts via SSH before cert regen
-CsvPath	string	Next to script	Path for the commissioning CSV

Host list file

A plain text file with one FQDN per line. Lines starting with # are treated as comments.

esxi01.vcf.lab
esxi02.vcf.lab
# esxi03.vcf.lab  -- skipped
esxi04.vcf.lab

Optional Advanced Settings

Extra advanced settings, all disabled by default. Whichever source is used, set Enabled to true to apply the setting on every host:

Setting	Description
Config.HostAgent.plugins.hostsvc.esxAdminsGroup	AD group whose members get full ESXi admin access. Change the value to match your AD group name.
LSOM.lsomEnableRebuildOnLSE	Enables automatic vSAN rebuild when a device is flagged as LSE
DataMover.HardwareAcceleratedMove	Enables SSD TRIM — ESXi issues UNMAP to compatible SSDs
DataMover.HardwareAcceleratedInit	Enables SSD TRIM — ESXi issues UNMAP to compatible SSDs

These settings can come from an external file next to the script, so you don't have to edit the script body. On startup the script looks for, in order:

1. HostPrep.Settings.json
2. HostPrep.Settings.psd1

The first file found wins. If neither exists — or the file that was found fails to parse — the script falls back to the built-in $DefaultOptionalAdvancedSettings block near the top of HostPrep.ps1. The source in use is written to the log at startup, along with the labels of any settings that are enabled.

Copy one of the shipped templates to get started:

# JSON -- a top-level array of objects
Copy-Item HostPrep.Settings.example.json HostPrep.Settings.json

# ...or PSD1 -- the array nested under a Settings key
Copy-Item HostPrep.Settings.example.psd1 HostPrep.Settings.psd1

Each entry needs Name, Value, Enabled and Label. Value types matter: strings quoted, integers unquoted, booleans as true/false in JSON and $true/$false in .psd1. A wrong type is accepted silently by ESXi but may have no effect.

[
    {
        "Name": "Config.HostAgent.plugins.hostsvc.esxAdminsGroup",
        "Value": "ESX Admins",
        "Enabled": true,
        "Label": "ESX Admins group"
    }
]

The two formats differ in shape — JSON is a bare array, while .psd1 must wrap the array in a Settings key because Import-PowerShellDataFile requires a top-level hashtable. Follow the matching template rather than translating one format into the other by hand.

VCF 9 password requirements

If a password reset is requested, the new value is validated before any host is touched:

• 15 to 40 characters
• At least 1 lowercase letter
• At least 1 uppercase letter — not as the first character
• At least 1 digit — not as the last character
• At least 1 special character from: @ ! # $ % ? ^
• Only letters, digits, and @ ! # $ % ? ^ permitted
• At least 3 of the 4 character classes must be present

---

Commission-VCFHosts.ps1

Reads the CSV produced by HostPrep.ps1 and commissions all hosts into SDDC Manager in a single batch via the REST API.

What it does

1. Reads the CSV — FQDN, thumbprint, detected storage type per host
2. Prompts for SDDC Manager FQDN, username and password
3. Authenticates and retrieves a Bearer token; detects SDDC Manager version via GET /v1/sddc-managers
4. Retrieves available network pools and prompts for selection
5. Displays the detected storage type per host — no prompting; edit the CSV StorageType column before running if any value needs changing (VSAN_ESA and VVOL must be set manually)
6. Prompts for the ESXi root password (required by SDDC Manager for both validation and commissioning)
7. Saves a sanitised JSON payload to disk (password masked as ********) before sending anything
8. Validates hosts via POST /v1/hosts/validations:
   • Flattens the VCF 9 nested check structure to get per-host leaf results
   • Prints every check with PASS/FAIL/WARN icons and full error detail including errorResponse.message
   • Saves the full validation response JSON to disk
   • Writes a dark-mode HTML validation report and opens it in the browser
   • Aborts on failure
9. Commissions hosts via POST /v1/hosts
10. Polls the task every 15 seconds until SUCCESSFUL, FAILED, or timeout
11. Queries GET /v1/hosts to retrieve the SDDC Manager host UUID per commissioned host
12. Prints a colourised per-host summary table with host UUIDs
13. Writes a dark-mode HTML commissioning report and results CSV; opens the report in the browser — each host UUID has a copy-to-clipboard button for quick access

Storage type

The StorageType column is read directly from the CSV — no prompting at runtime. HostPrep.ps1 detects VMFS_FC and NFS automatically; everything else defaults to VSAN. To use VSAN_ESA or VVOL, edit the column in the CSV and re-run.

  Storage types from CSV:
  (To change a value, edit the StorageType column in the CSV and re-run)
  Valid values: VSAN, VSAN_ESA, NFS, VMFS_FC, VVOL

    esxi01.vcf.lab                             VSAN_ESA
    esxi02.vcf.lab                             VSAN_ESA
    esxi03.vcf.lab                             VMFS_FC

Validation report

The HTML validation report (Commission_<timestamp>_ValidationReport.html) is written after every validation run — pass, fail, or -ValidateOnly. It shows:

• Stat cards — overall status (from resultStatus field), plus pass/warn/fail counts for host-level checks only (the "Validating input specification" wrapper is excluded from counts)
• Per-host summary table — actual resultStatus per host matched from the flattened check list, with the error message (errorResponse.message) displayed underneath in the appropriate colour
• Validation checks table — all leaf checks from the flattened structure with nested detail expanded inline

Output files

All files are written next to the script with a timestamp prefix:

File	Written when
Commission_<ts>_Payload.json	Always — sanitised payload, password masked
Commission_<ts>_ValidationResponse.json	Always — raw SDDC Manager validation response
Commission_<ts>_ValidationReport.html	Always after validation (pass or fail)
Commission_<ts>_Report.html	After successful commissioning
Commission_<ts>_Results.csv	After successful commissioning

-ValidateOnly mode

Runs validation without commissioning anything. All output files above except the commissioning report and results CSV are written:

.\Commission-VCFHosts.ps1 -ValidateOnly

Usage

# Interactive -- all prompts at runtime
.\Commission-VCFHosts.ps1

# Pass CSV and SDDC Manager directly
.\Commission-VCFHosts.ps1 -CsvPath "C:\VCF\HostPrep_20260320_Commissioning.csv" -SddcManager sddc-manager.vcf.lab

# Validate only -- no commissioning
.\Commission-VCFHosts.ps1 -ValidateOnly

# Lab environment with self-signed certificate on SDDC Manager
.\Commission-VCFHosts.ps1 -SkipCertificateCheck

# Validate only, pass all args
.\Commission-VCFHosts.ps1 -ValidateOnly -SddcManager sddc-manager.vcf.lab -CsvPath "C:\VCF\hosts.csv"

Parameters

Parameter	Type	Default	Description
-CsvPath	string	Prompted	Path to the HostPrep commissioning CSV
-SddcManager	string	Prompted	FQDN of the SDDC Manager appliance
-TimeoutMinutes	int	30	Maximum minutes to wait for the commission task
-ValidateOnly	switch	—	Run validation only, do not commission
-SkipCertificateCheck	switch	—	Ignore TLS errors — for lab use
-SavePayload	switch	—	Retained for compatibility; payload is always saved
-ReportPath	string	Next to script	Path for the commissioning HTML report
-OutputCsvPath	string	Next to script	Path for the commissioning results CSV
-PayloadPath	string	Next to script	Path for the sanitised JSON payload
-ValidateReportPath	string	Next to script	Path for the validation HTML report

Requirements

No additional modules required beyond PowerShell 5.1. All API calls use Invoke-RestMethod.

---

Blog post

Full write-up with background and screenshots:
Automating ESXi Host Preparation for VCF 9 with PowerShell – HolleBollevSAN

---

Next step

Once your hosts are commissioned into SDDC Manager, use the scripts in VCFJsonSpecCreators to build the JSON payloads for creating network pools, workload domains, and clusters.

---

Author

Paul van Dieen — hollebollevsan.nl
