Real Robot Data Collection & Teleoperation Pipeline

This repository provides a real-robot data collection and teleoperation pipeline built on top of Diffusion Policy. It supports Franka Research 3 (FR3) control, Xbox controller teleoperation, and RGB-D data collection using RealSense cameras.

---

Install

Dependencies

• Diffusion Policy (Real Robot setup) This repository is built on top of the official Diffusion Policy implementation for real robots:

  👉 https://github.com/real-stanford/diffusion_policy?tab=readme-ov-file#-real-robot

• Franky (Franka robot control library) Franka robot control is implemented using the Franky library:

  👉 https://github.com/TimSchneider42/franky

• Intel RealSense SDK RGB-D camera support via RealSense SDK for D405, D415, and D435 cameras.

• NUC-based setup For NUC-based robot control, refer to the Universal Manipulation Interface (UMI) setup guide:

  👉 https://github.com/real-stanford/universal_manipulation_interface/blob/main/franka_instruction.md

Please follow the installation instructions in the above repositories before running this code.

---

Updates

ver 0.1

• ✅ Added Franka Research 3 (FR3) control support

• ✅ Added depth data collection (optional, can be enabled/disabled)

• ✅ Added Xbox controller teleoperation

• ✅ Added gripper control and gripper state logging

  • Gripper state is stored in the last index of the end-effector (EEF) pose

ver 0.2

• ✅ Added Realsense D405 support
• ✅ Fix Franka Research 3 (FR3) control delay

ver 0.3

• ✅ Added audio data collection support
• ✅ Added Franka Gripper control support
• ✅ Fixed Franka Research 3 (FR3) control on NUC-based setup

Data collection example:

---

Run

• Data collection and teleoperation can be started using the demo_real_robot.py script.

python demo_real_robot.py \
  --output {path/to/data/dir} \
  --robot_ip  {@@@.@@@.@@@.@@@} \
  --teleop_mode {xbox_controller}\
  --robot_model {fr3}

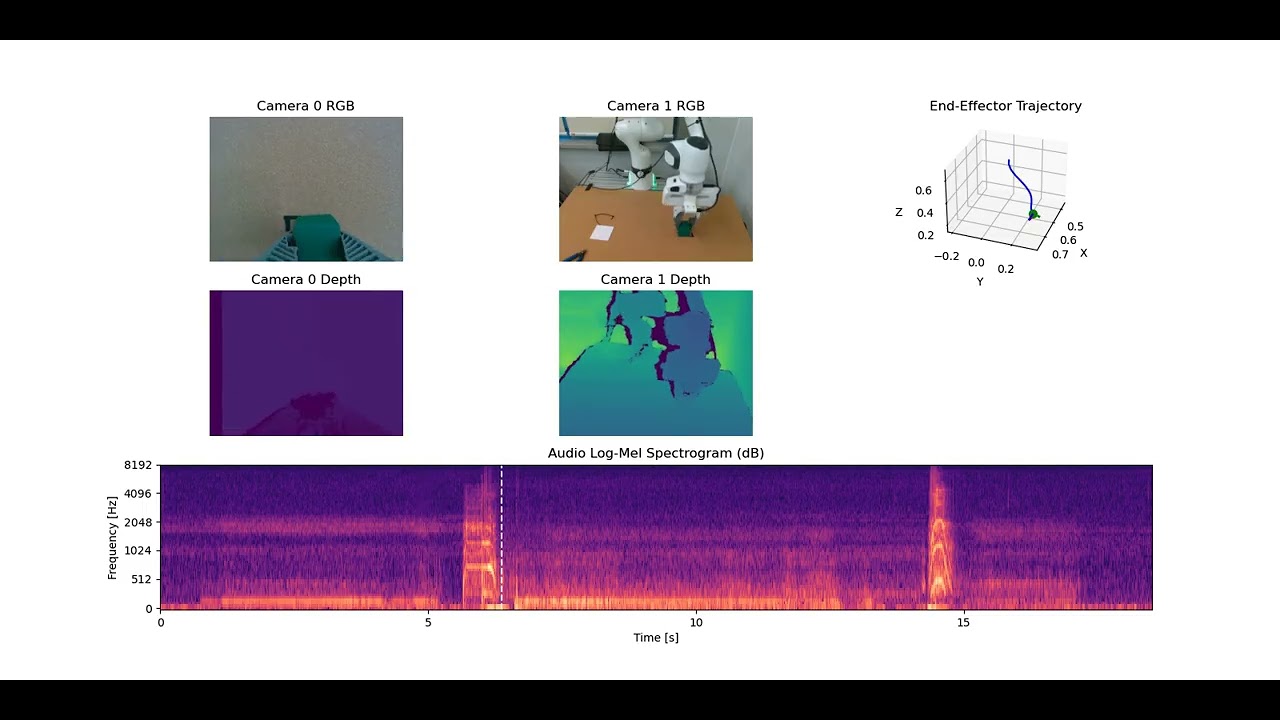

• Debug collected data using the debug_data_video_generation_audio.py script.

python debug_data_video_generation_audio.py

• Convert .mp4 data to image sequences.

python generate_replay_buffer.py /home/rvi/projects/robot-arm-real-world-data-collecting/data -o /home/rvi/projects/robot-arm-real-world-data-collecting/data/replay_buffer.zarr

---

Troubleshooting

• Depth data latency When collecting depth images, use a low resolution to reduce latency:

  (width, height) = (640, 480)


• Tested hardware setup

  • Franka Research 3 (FR3)
  • Xbox controller
  • Intel RealSense D435 × 2

• Tresh audio data collection

  • Check pavucontrol settings for microphone input source.
    • systemctl --user stop pulseaudio
    • python -m sounddevice

Other configurations are not yet fully validated.

---

To Do

• ⏳ Add VR-based teleoperation mode
• ⏳ Add xArm 7 control support
• ⏳ Add Dexterous hand support
• ⏳ Add Data convertion to RLDS
• ⏳ Fix to more Multi-modal adaptable codebase
