fix(geo3d): preserve Blob inputs and confine archive resources

[wybaby168]

Summary

• Continue feat(geo3d): add opt-in Giro3D renderer with advanced API and self-hosted assets v3 #336 with its original authorship and explicit opt-in Geo3D entry.
• Preserve the original Blob through the public viewer API, including slice-only local COPC reads. Cancel metadata probes and dispose sessions that arrive after their owner aborts, including local stream/buffer paths and asynchronous initial-fit completion.
• Reject legacy B3DM/I3DM/CMPT payloads inside 3TZ until their nested resource loaders can be confined. Validate both extensions and actual bytes; retain supported GLB/glTF/PNTS resources and dispose owned archive URLs. Confine the enabled structural-metadata plugin’s schemaUri to owned archive Blob URLs.
• Bound CityJSON CRS, GeoTIFF ASCII metadata and GLB JSON padding scans. The same adversarial inputs that occupied the parser for about 2 seconds complete in under 2 milliseconds after the fix; regression workers terminate a parser that exceeds its CPU budget.
• Return constant, plain-text errors from fixture HTTP servers without disclosing request paths or exception stacks. Build the public Vue host dependency closure during focused validation so a fresh checkout does not depend on a prior root build.
• Align security manifests, workspace overrides and lockfile with the separately reviewed fix in fix(deps): align security pins with the installed dependency graph #337. Document supported archive boundaries and add real browser/cold-consumer regressions.

Related issue

Closes #324. Continues #336; includes the dependency consistency patch from #337. No merge or npm release is requested.

Change classification

• User-visible UI or rendering change
• Non-visual change
• File-format or renderer behavior
• Public API, package, Worker, WASM, or deployment-path change

Verification

Check	Result
pnpm install --frozen-lockfile	Pass
pnpm build, pnpm type-check, pnpm test	Pass, complete final rerun
Geo3D standard checks	Pass: 114 checks, including adversarial metadata worker regressions
pnpm exec vitest run --reporter=dot	Pass: 34 files, 298 tests; 1 existing unrelated skip
pnpm --filter @file-viewer/renderer-3d verify:geo3d-browser	Pass: real Giro3D/Workers; 15 dataset and 10 concurrent/cancellation cases in both workspace and physically installed consumers; 3 additional public Vue/headless host cases; 16 negative HTTP cases and 16 real glTF/GLB schema-plugin cases across workspace and installed consumers
Remaining Public CI commands, including Rust, cold React/Vue/CLI/Angular consumers and browser checks	Pass locally: all 25 additional Public CI steps, following the seven complete build/type/test/browser/docs/governance checks
pnpm verify:renderer-sanitization	Pass, including Chromium/Firefox/WebKit RTF/DOC/CSP checks
pnpm site:build, pnpm verify:github-governance, pnpm verify:dicom-license-ledger	Pass
pnpm audit --registry=https://registry.npmjs.org --audit-level low	Pass: zero non-ignored advisories; existing Vue 2 EOL exception retained
bash .github/scripts/run-gitleaks.sh	Pass: 964 commits scanned, no leaks

On this Mac, Firefox initially failed before opening a page because it could not access its app-data directory. The final three-browser run used the same isolated Firefox binary with a separate test app-data name. No user browser profile or system permission was changed. The initial audit attempt against npmmirror lacked an audit endpoint; the final audit used the official registry.

Sample / fixture evidence

• Repository fixtures: Geo3D test files.
• Public API Blob input, local stream/buffer cancellation, probe failure and asynchronous initial-fit abort/unload/replacement regressions: test/geo3d-integration-lifecycle.spec.ts.
• Real I3DM external-fetch rejection, supported owned texture and archive-byte boundaries: test/geo3d-archive-boundaries.spec.ts.
• Enabled native metadata plugin: scripts/verify-geo3d-archive-browser.mjs reproduces an outside schema request before the fix, checks its rejection afterward and parses local schemas in glTF and GLB in Chromium/WebKit, both workspace and cold consumer.
• Metadata CPU regressions: scripts/geo3d-metadata.test.mjs and the compiled parser in a real Node Worker.
• Fixture server error-boundary browser regressions: scripts/geo3d-fixture-http.mjs. The original response reflected paths and markup; local reproduction did not observe script execution.
• Real HTTP probe replacement/unmount and headless cancellation: packages/renderers/3d/scripts/verify-geo3d-host-browser.mjs.
• Installed consumer runs the compiled package without source/build scripts, verifies its complete physical module graph and checks NodeNext/Bundler declarations.

Visual evidence

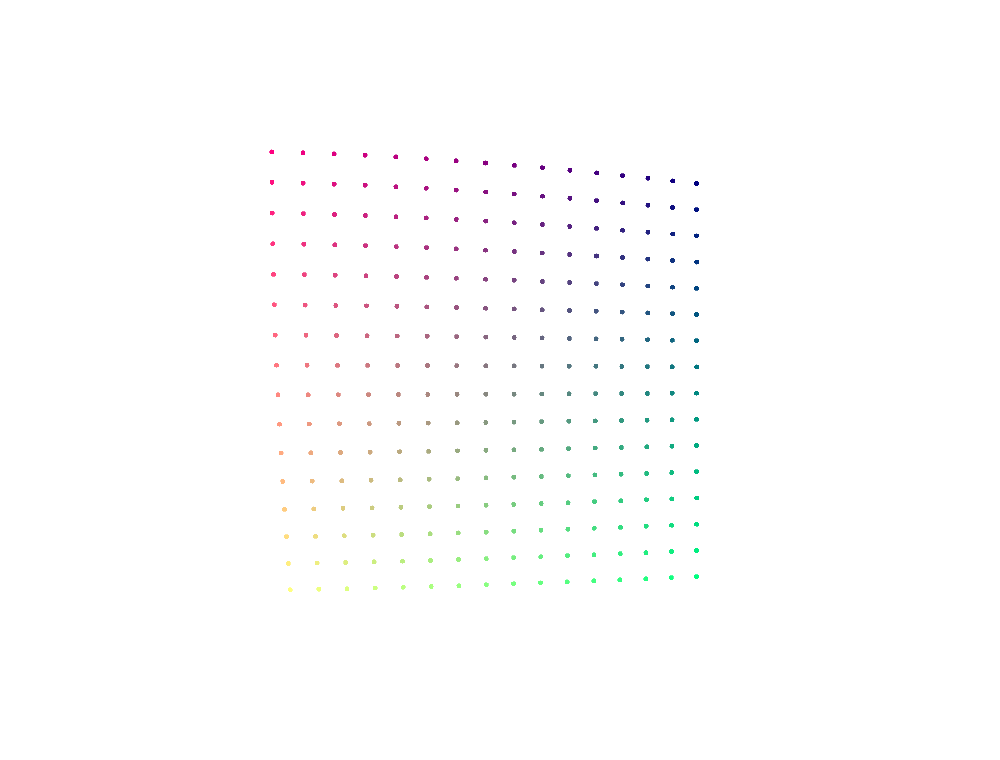

Local COPC Blob rendered through the public headless API:

Risk and compatibility

• Affected packages/formats: core source lifecycle and opt-in renderer-3d/geo3d; 3TZ/archive support.
• Compatibility or migration risk: Plain File and Blob inputs retain identity. External aborts stop real probes and suppress stale readiness. The feature remains optional, with self-hosted decoder assets.
• B3DM/I3DM/CMPT inside 3TZ are now explicitly unsupported; direct remote 3D Tiles retains its documented dataset-relative behavior. Inline model/tile data URLs are rejected; data URLs in supported glTF buffers/images follow the documented boundary.
• Consumers do not inherit workspace overrides. The upstream Mermaid/KaTeX consumer gap described in fix(deps): align security pins with the installed dependency graph #337 remains documented; this PR does not claim every consumer graph is advisory-free.
• Rollback: revert the fix commit; preserve upstream attribution and avoid releasing unsupported archive claims.

Checklist

• I added or updated focused automated coverage, or explained why it is not needed.
• I updated user-facing documentation or release notes when behavior or API changed, or marked them not applicable.
• I verified offline/private-deployment paths when changing Worker, WASM, fonts, vendor assets, or URLs.
• I did not commit secrets, customer files, private samples, generated caches, or unrelated changes.

Independent verification update — 2026-10-07

Current head: e39234ea26057ffbaa0a15959ea76d17bdbfdf2d.

• Fresh hosted validation exposed a 1 ms wall-clock expiry race in the stale raster-cache regression fixture. Commit 5e62027cf5382274c26f971ca089dfcdded41421 makes expiry explicit, retains ownership assertions, and preserves the strict final disposal assertion. A controlled-clock baseline fails before the fix; the corrected fixture passes even with an hour of simulated insertion delay, while removing actual cleanup still fails.
• The separate dependency commit updates only the Sharp 0.35.5 override/lock closure and installed-Next runtime assertion. Next remains 16.3.6; no production Geo3D behavior or compatibility floor changes in these two commits.
• The exact candidate passed complete independent Linux build/type/docs checks on 2026-10-06. On 2026-10-07 unchanged bytes passed frozen consistency, official audit, governance, 16 routing tests, 114 focused regressions, 22 contract/10 texture checks and the complete root suite (298 passed, one optional-fixture skip). Controlled-clock and missing-cleanup negative controls were rerun.
• Workspace audit has zero nonignored advisories with the existing Vue 2 low exception retained. Consumer-policy/release boundaries elsewhere in this description remain.
• Fresh exact-head Public CI, Security, and focused Geo3D validation completed successfully on 2026-10-07. The previously failing raster-cache fixture passed; source and installed browser datasets each passed 15 cases and their concurrency suites each passed 10 cases, with no unrun concurrency cases. XML and 19 strict fixture checks also passed.
• Hosted browser results supplement the independent cloud shell checks; the cloud shell's own browser gates remain blocked by its execution prerequisites. The documented cold-consumer audit limits still apply. No merge or npm publication has occurred.

[wybaby168]

Closing as superseded. The 3D input, resource and asset contracts have been checked against the accepted implementation in #350, #360, #361 and #364.

Verified on main c4cbee1b42ef1a7357e08c222da7451bf0ef2c31: Public CI, Security, and CodeQL all passed. The accepted replacement source was checked after landing.
