NC-Edit7 Pro

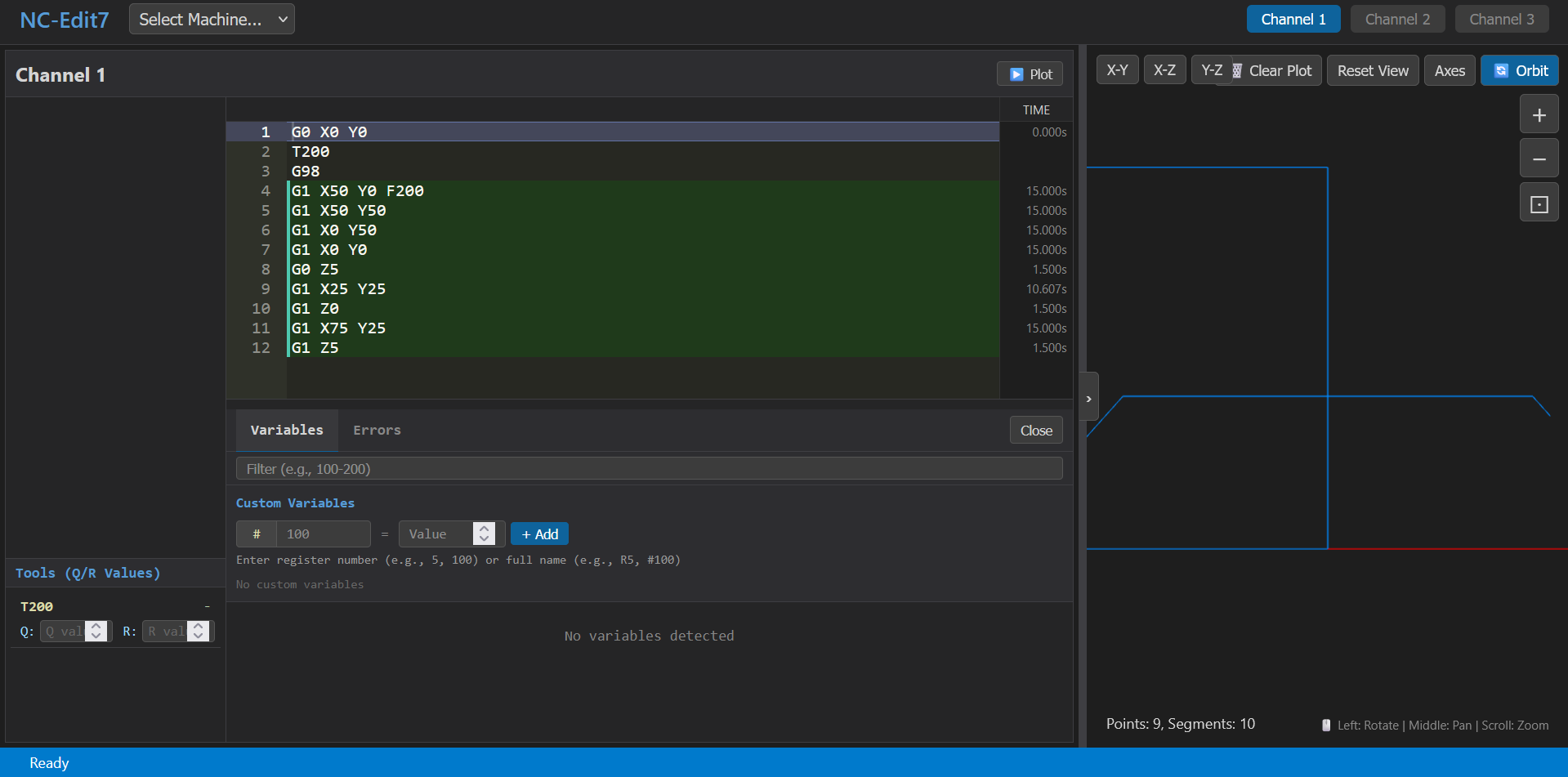

CNC NC code editor view with plot interface.

The editor integrates the ACE text editor and enables the plotting of toolpaths with the three.js library.

Licensing note: NC-Edit7 source code is licensed under the MIT License. Some repository variants or releases may also include runtime files . Those files are proprietary software, redistributed under redistribution terms, and are not covered by the MIT License.

Live Demo

You can find the new version of the editor here: https://ncedit7.azurewebsites.net/

Static assets used by the web app and this README are stored under public/favicon/ and public/images/.

Local Development

To run the project locally:

npm install

To build for production:

npm run build

Testing

Run unit tests with:

npm run test

Transfer Configuration

The transfer panel is configured at runtime through public/config.json or the VS Code host configuration.

For USB storage transfer:

{
	"showTransferPanel": true,
	"transferProtocol": "usb",
	"transferDefaultIp": "E:/"
}

In USB mode, transferDefaultIp is interpreted as a filesystem path visible to the backend process. Path 1 uses the selected root folder directly. Optional PATH2 and PATH3 subfolders are used when present.
