HABirdDashboard

Bird Card: a live bird collage for Home Assistant, fed by BirdNET-Go.

The idea in one paragraph: your Home Assistant machine can identify every bird outside your window by sound alone. A free app called BirdNET-Go listens to any microphone - including the one already in your doorbell or security camera - and names each species it hears using Cornell's BirdNET model. Bird Card turns that stream of detections into the living collage above: every species you've heard appears as a woodblock-print style illustration (kachō-e, the Japanese bird-and-flower tradition), sized by how often it calls, packed together by its actual silhouette so wings cradle tails. Birds the AI heard clearly sit perched; faint, uncertain ones fly past. Tap any bird for its recordings, description, and stats.

No bird knowledge needed, no extra hardware if you own a camera with a mic, and nothing to maintain: the card installs like any other HACS card, finds BirdNET-Go on its own, gets weather and theme from Home Assistant, and fetches each bird's artwork on demand. You do need the BirdNET-Go app running - this card is the display, not the detector - and Step 1 below covers installing it from scratch.

Bird Card began life as a fork of AvianVisitors (a BirdNET-Pi project for a dedicated Raspberry Pi) and is now maintained as an independent project. The illustrations and the silhouette-masking collage layout are AvianVisitors' work, used and adapted with attribution under CC-BY-NC-SA; everything else - the data layer, the confidence-based poses, the Home Assistant card - was built here for Home Assistant + BirdNET-Go.

---

What you get

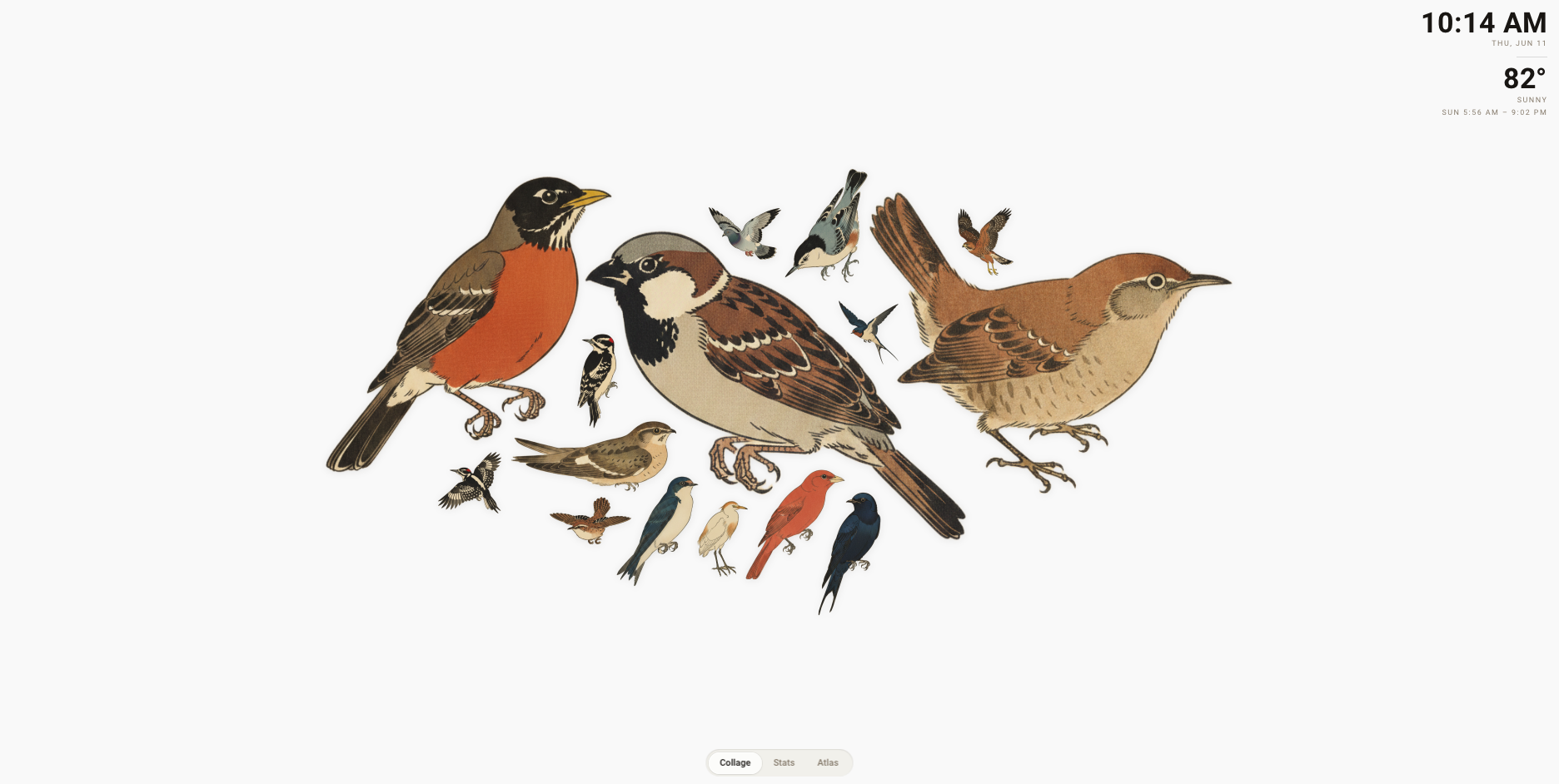

• The collage - every species heard in the selected window (1H / 12H / 24H / 7D / ALL), nested by silhouette masks with no overlaps, area scaled to call count. Hover for counts, click a bird for its detail card.
• Sitting or flying - a species shows its perched illustration when its best detection confidence in the window is ≥ 90% (configurable), and its flight pose otherwise. A clear, close bird has settled in; a faint maybe is just passing through. Birds visibly "land" when a confident detection arrives.
• Clock + weather in the collage (optional) - togglable in the card settings. The block sits in a corner of the collage and the bird-packing treats it as one of the flock: grow enough birds and they nest around the numerals. Weather comes from your HA weather integration, in your HA units, with sunrise/sunset from HA's sun - no tokens, no API keys.
• Stats - an editorial detection timeline plus by-period counts, top species, and the newest additions to your life list.
• Atlas - a field-guide card grid of every species ever heard, with playback of the latest recording and client-rendered spectrograms.
• Detail modals - per-species recording history with scrubbable spectrograms, Wikipedia descriptions, rarity, and links out to Wikipedia and eBird.
• 498 illustrations - 249 (mostly North American) species, a perched and a flight pose each, lazy-loaded per detected species (no bulk download). A regeneration pipeline builds sets for other regions.
• Light/dark follows your Home Assistant theme. Data refreshes every 30 seconds (paused while the tab is hidden). Fully responsive - the collage re-packs itself for any screen or orientation.

---

What you need

• Home Assistant OS or Supervised - apps (formerly add-ons) only exist on these install types. Container/Core installs can still use the card; run BirdNET-Go yourself (e.g. in Docker) and skip to Step 3.
• Something that can hear birds. If you already have an outdoor camera with a microphone - a doorbell, a security cam, an NVR - you're done: BirdNET-Go listens to RTSP streams, so the camera you own becomes the bird mic for free (Step 2 has the details). Otherwise a cheap USB lavalier mic in a window works great.
• About 20 minutes.

The whole setup is: install the BirdNET-Go app (the thing that listens and identifies) → confirm it's detecting → install the card → add it to a dashboard. Step by step:

---

Step 1 — Install the BirdNET-Go app

BirdNET-Go isn't in the built-in app store; it comes from alexbelgium's well-known community repository, which you add once:

1. Click this to add the repository to your HA instance:



   Or by hand: Settings → Apps (called Add-ons before 2025) → ⋮ menu (top-right) → Repositories → paste https://github.com/alexbelgium/hassio-addons → Add → Close.

2. Back in the app store, search for BirdNET-Go (refresh the page if it doesn't show up yet - it's under "Alexbelgium's Hass.io Add-ons").

3. Open it and click Install. It's a large image; give it a few minutes.

4. On the app's Configuration tab, set TZ to your timezone (this matters - the dashboard's time windows follow it), then Save.

5. On the Info tab, click Start, and watch the Log tab until it settles.

Step 2 — Get BirdNET-Go detecting

1. Open the BirdNET-Go web UI at http://<your-ha-host>:8080 (there's also an Open Web UI button on the app page).

2. In BirdNET-Go's Settings, set your latitude/longitude so it knows which species are plausible.

3. Give it ears - either works, and you can mix several:

   An outdoor camera you already own (recommended). Doorbell and security cameras have microphones, and BirdNET-Go listens to RTSP streams directly - no new hardware. In BirdNET-Go's audio settings add an RTSP stream per camera: give it a name (it becomes that mic's device name in HA, e.g. "Door Bell") and the camera's RTSP URL. Two things to check on the camera side: audio recording must be enabled in the camera's own settings, and use the low-resolution sub stream

   • BirdNET-Go only wants the audio, no point pulling main-stream video.

   For Reolink cameras behind an NVR the URL template is:

   rtsp://admin:PASSWORD@NVR.IP.ADDRESS:554/h264Preview_01_sub


   (_01_ is the camera's channel number on the NVR - _02_, _03_... for the rest; standalone Reolink cameras use the camera's own IP.) Other brands publish similar RTSP paths - search " RTSP URL".

   Or a USB microphone plugged into the HA machine - pick it as the audio capture device.

4. Wait for a bird (or play birdsong from your phone near the mic) and confirm detections appear on BirdNET-Go's own dashboard.

Tuning detections - defaults are conservative; a starting point that has worked well in practice is Settings → Analysis: Confidence Threshold 0.7, with Dynamic Threshold enabled, Trigger 0.9 and Minimum 0.5. (Dynamic threshold temporarily lowers the bar for a species right after a high-confidence detection of it, so the quieter follow-up calls of a bird that's clearly present still get logged without letting random noise in.) It pairs nicely with this card's sit/fly rule - confident detections perch, borderline ones fly past.

Don't move on until BirdNET-Go is detecting - this card is only a prettier window onto that data.

Step 3 — Install the card

With HACS (recommended): click this to open the repository directly in your HACS:

Or by hand:

1. In HACS: ⋮ menu (top-right) → Custom repositories, add https://github.com/adamoberley/HABirdDashboard with type Dashboard.
2. Search HACS for Bird Card and Download it.
3. Reload your browser when prompted.

Without HACS: download dist/habird-card.js into /config/www/ (Samba or the Terminal & SSH app), then **Settings → Dashboards → ⋮ → Resources →

• Add resource**, URL /local/habird-card.js, type JavaScript module.

Step 4 — Add the card to a dashboard

1. Edit any dashboard → + Add card → search Bird Card.
2. The visual editor has everything: BirdNET-Go URL (leave empty for the stock app on the same host), the sit/fly confidence slider, and toggles for the clock, weather, corner, theme, and cursor hiding.

For a full-screen view (the way it's meant to be seen): create a new dashboard or view, set the view's layout to Panel (single card), and put the card there - it fills the screen edge to edge. Name it "Birds", icon mdi:bird.

That's it. The collage fills in as birds are heard; if BirdNET-Go already has history, it shows up immediately.

---

Card options

All editable in the visual editor; YAML equivalents:

type: custom:habird-card
view: collage                # collage | stats | atlas - what this card shows
view_selector: true          # false hides the switcher (single-view cards;
                             #   put a collage card, a stats card and an
                             #   atlas card on one dashboard if you like)
title: ""                    # empty = no title; set any text for a heading
                             #   (birds pack around it, clock-style)
window: "24"                 # time window in hours, or "all" - the card has
                             #   no on-screen picker; this is the window
background: transparent      # transparent (blend with dashboard) | paper
font: system                 # system (HA's font) | serif (the original look)
birdnet_url: ""              # empty = this host, port 8080 (the stock app)
data_source: auto            # auto | api | ha (see Data sources below)
history_days: 10             # ha-source span; bounded by recorder retention
sit_confidence: 0.90         # perched at/above, flying below
collage_scale: 1.5           # how much of the card the flock claims (0.5-3)
                             #   (0 = always perched, 1.01 = always flying)
tap_action: info             # info (open details) | call (play the species'
                             #   reference call) | both - what tapping a bird does
xeno_canto_key: ""           # free key from xeno-canto.org/account; enables the
                             #   reference-call feature below (empty = off)
clock: true                  # time + date in a corner of the collage
weather: true                # conditions + sunrise/sunset from HA
weather_entity: ""           # empty = first weather.* entity found
corner: bottom-right         # where the clock/weather block lives
hide_cursor: false           # hide the pointer after 8s idle (wall displays)
theme: auto                  # auto = follow HA light/dark; or light / dark
image_base: ""               # empty = artwork from CDN (see below)
height: ""                   # px; empty = fill the space (560px minimum)

Weather reads your Home Assistant weather integration directly through the card's own connection - no access token, in your HA units, with sunrise/sunset from HA's sun.sun. If HA has no weather entity, the card quietly falls back to BirdNET-Go's built-in weather (yr.no).

Bird details open in place: clicking any bird - in the collage, the stats lists, or the atlas - pops its detail card (recordings, description, stats) over the current view. The card's layout is responsive to its own box via container queries, so a narrow column card gets the compact layouts even on a wide desktop. Prefer sound to stats? tap_action: call makes a tap play the bird's reference call instead; both does both at once.

Reference calls (optional): drop a free Xeno-Canto API key into xeno_canto_key and a reference call button appears in each bird's detail card - a clean example call/song for the species (fetched from Xeno-Canto, credited to the recordist) to compare against the recordings your own station actually caught. This is distinct from BirdNET-Go's captures: it's what the bird is "supposed" to sound like. Without a key the feature stays hidden and tap_action: call/both simply open the details.

Artwork lazy-loads per species from a CDN view of this repo (jsDelivr) - only birds you've actually heard are ever fetched, one PNG each, cached by the browser. For a fully offline install, copy avian/assets/ to /config/www/habird-art/ and set image_base: /local/habird-art/.

Missing artwork for your area?

The bundled library is 249 (mostly North American) species, so other regions will have gaps. (Plain photos are deliberately not used as a stand-in - they'd break the kachō-e style and have no silhouette masks for the collage packing.) Two remedies, neither needs code changes:

1. Generate illustrations for exactly YOUR birds. The art pipeline (the same one that made the bundled library - see avian/scripts/README.md for prompts, references and per-species tuning) can read your station's life list straight from BirdNET-Go and render only those species, in the matching style with proper masks:

   pip install -r avian/scripts/requirements.txt
   export GEMINI_API_KEY='your-key'
   python3 avian/scripts/pregen.py --from-birdnet http://homeassistant.local:8080
   python3 avian/scripts/cutout.py
   python3 avian/scripts/build_masks.py     # rebuilds the collage masks
   node homeassistant/card/build.js         # bakes the masks into the card

   Host the PNGs at /config/www/habird-art/ (set image_base) and add the rebuilt dist/habird-card.js as your dashboard resource.

2. Send them here. Pull requests to this repo that add species PNGs (and regenerated masks) are very welcome - every merged region makes the CDN cover the next person's backyard out of the box. Or just open an issue with your eBird region code.

---

Data sources

The card can feed from two places:

1. BirdNET-Go's REST API (the default, and the most capable): full all-time history, exact counts, and audio - the atlas play buttons and the recordings in each species' detail modal come from here.
2. Home Assistant's history of the BirdNET-Go MQTT sensors. Enable MQTT in BirdNET-Go's integration settings (the alexbelgium app can auto-configure HA's broker) and each microphone appears in HA as a device with Scientific Name / Last Species / Confidence sensors. Those sensors only hold the latest detection, but HA's recorder keeps their history - the card rebuilds the full detection stream (time, species, confidence per detection) from it through its own HA connection. No extra URL, no port, no token. The trade-offs: audio clips can't travel over MQTT (play buttons show "no audio"), and the life list / ALL window reach back only as far as your recorder retention (default ~10 days; history_days caps the query).

Enabling MQTT (recommended)

MQTT is worth the five minutes even when the API works: detections push to the card instantly (instead of waiting for the refresh timer), the data keeps flowing anywhere the API can't be reached, and every microphone becomes a real HA device you can use in automations (announce rare birds, light up a lamp for an owl...).

1. Broker: install the official Mosquitto broker app (Settings → Apps - it's in the official catalog, no custom repository needed) and start it. HA will then offer the discovered MQTT integration under Settings → Devices & Services - add it.
2. Wire BirdNET-Go to the broker - easiest way: on the BirdNET-Go app's Configuration tab, switch on mqtt_auto_config, save, and restart the app. It injects HA's broker address and credentials into BirdNET-Go for you. (Manual alternative: BirdNET-Go web UI → Settings → Integrations → MQTT: enable it, set the broker to mqtt://<your-HA-IP>:1883 - e.g. mqtt://192.168.1.2:1883 - with an HA username + password and topic birdnet. Use the real IP: container hostnames like core-mosquitto often don't resolve from inside the BirdNET-Go app.)
3. Turn on Home Assistant discovery: in BirdNET-Go's web UI → Settings → Integrations → MQTT, enable the Home Assistant (auto-discovery) option. This is a separate toggle from MQTT itself, off by default - and it's the one that creates the per-microphone device with the Scientific Name / Last Species / Confidence sensors this card uses.
4. Verify: Settings → Devices & Services → MQTT should show a "BirdNET-Go " device whose sensors update on each detection. The card picks them up automatically - nothing to configure on the card side.

data_source: auto (the default) uses the API and falls back to MQTT history automatically whenever the API isn't reachable from your browser - so if the direct connection is blocked, the collage keeps working and quietly upgrades itself once the API is reachable again. Force one or the other with api / ha. Multiple microphones are auto-discovered and summed; to pin specific ones, list their scientific-name sensors in YAML:

ha_sensors:
  - sensor.birdnet_go_door_bell_scientific_name
  - sensor.birdnet_go_garden_scientific_name

---

Wall-mounted displays

Turn on clock and weather in the card settings and put the card on a panel-view dashboard - that's the whole setup. The block sits quietly in whichever corner you pick, styled like the rest of the page (serif numerals over small letterspaced captions, following light/dark), and the bird-packing treats it as one of the flock: when enough birds show up to reach that corner, they nest around the numerals with the same silhouette-mask spacing they use against each other.

hide_cursor makes the pointer disappear after 8 seconds idle - useful for kiosk browsers (Fully Kiosk, WallPanel, or HA's own kiosk-mode dashboards) that park the mouse mid-screen.

---

How it maps onto BirdNET-Go

The card reads BirdNET-Go's API v2 (public routes, CORS-open by default):

Dashboard data	BirdNET-Go endpoint
Life list / ALL window / 7D window	/api/v2/analytics/species/summary
1H / 12H / 24H rolling windows	/api/v2/analytics/species/daily for today (+ yesterday), summing the hourly_counts buckets that intersect the window
Daily + hourly charts	/api/v2/analytics/time/daily, /api/v2/analytics/species/diversity, /api/v2/analytics/time/distribution/hourly
Per-species recordings list	/api/v2/detections?queryType=search
Audio playback + spectrograms	/api/v2/audio/:id (spectrograms rendered client-side from the audio)
Species descriptions	Wikipedia REST API, fetched directly

The 1H/12H windows are hour-bucket precise (the daily summary aggregates per hour), so the window edge can be fuzzy by up to an hour - invisible in a collage sized by relative counts.

---

Alternative: standalone webpage install

Before it was a card, this dashboard was a static page served from /config/www - that still works, and suits setups that want a plain URL (/local/habird/index.html) for an iframe or external kiosk browser:

git clone https://github.com/adamoberley/HABirdDashboard.git /tmp/habird
/tmp/habird/homeassistant/install.sh     # copies page + artwork (~350MB)
rm -rf /tmp/habird

Configure via /config/www/habird/config.js (BirdNET-Go URL, sit confidence, and wall: {...} for clock/weather - same features as the card; weather defaults to BirdNET-Go's built-in support, or set wall.haToken to use HA's). Add it with a Webpage dashboard pointing at /local/habird/index.html, and use ?wall / ?corner=top-left URL params to dress up a specific display.

---

Troubleshooting

• Some birds have no picture. The most common question, and usually not a bug: the bundled library covers 249 mostly North American species, so detections outside it simply have no illustration yet (the bird still counts everywhere - it just isn't drawn in the collage). Three checks, then the fix:
  1. Is it just certain species? That's coverage, not breakage - see Missing artwork for your area? to generate matching art for exactly your station's birds, or open an artwork request with your eBird region code.
  2. Is it ALL species? The artwork loads from a CDN (cdn.jsdelivr.net), so the browser viewing the dashboard needs internet access - on an isolated/offline network, host the art locally and point the image_base option at it (see Card options).
  3. Did you set image_base yourself? Re-check the path serves PNGs at <image_base>/illustrations/<slug>.png.
• The direct API connection doesn't work (with MQTT enabled the card still shows birds via history, but audio stays unavailable). Check, in order: (1) the BirdNET-Go app's Configuration → Network section in HA - the 8080 port must be exposed (not blank/disabled); (2) open http://<the-host-in-your-address-bar>:8080 in a new tab - the card derives its default URL from the host you're browsing HA on, so if that tab fails, set birdnet_url to a URL that works (e.g. http://192.168.1.50:8080); (3) if you browse HA over https://, the browser blocks the plain-http API (mixed content) - leave birdnet_url empty and the card routes through HA ingress instead (next item).
• Nabu Casa / HTTPS remote access. There is no direct BirdNET-Go URL that works remotely - the tunnel only carries HA itself, and browsers block an https:// page from calling a plain-http LAN address. The card handles this automatically: on an HTTPS page it discovers the app's HA ingress endpoint and routes the full API (audio included) through it. Ingress discovery needs an admin HA user and the default birdnet_url (leave it empty); if it can't be set up, data still flows via the MQTT sensors - only audio playback is lost.
• The "not it?" flag fails. The pill shows a short reason: no path means the card couldn't reach HA ingress (writes need it - check you're an admin user); err 401/403/405 means BirdNET-Go refused - the browser console ([bird-card] ...) carries the detail.
• Counts look shifted by a day. Make sure the BirdNET-Go app's TZ option matches your actual timezone - the card aligns its rolling windows with BirdNET-Go's local dates.
• Nothing loads / console shows CORS errors. BirdNET-Go allows all origins by default. If you've restricted allowedorigins in its security settings, add your HA origin (e.g. http://homeassistant.local:8123).
• BirdNET-Go auth. Only public BirdNET-Go routes are used for reading, so the card works even with the BirdNET-Go app's authentication enabled.

---

Repo layout

dist/
└── habird-card.js   # the custom card (generated - what HACS installs)
homeassistant/
├── card/build.js    # builds dist/habird-card.js from the www sources
├── install.sh       # standalone-page install (copies page + artwork)
└── www/             # source of truth: the app as a static page
    ├── index.html
    ├── config.js    # standalone-page settings
    ├── apt.js       # collage app + BirdNET-Go adapter (masks embedded)
    ├── styles.css
    └── favicon.png
avian/
├── assets/          # 498 bundled illustrations + photo-cutout fallbacks
└── scripts/         # generate -> cutout -> masks pipeline (Gemini + BiRefNet)
docs/                # screenshot
hacs.json            # HACS metadata

After editing anything in homeassistant/www/, regenerate the card with node homeassistant/card/build.js and commit dist/habird-card.js.

---

Credits & license

This project stands on excellent prior work, and the credit lines below are load-bearing, not polite:

• AvianVisitors by Teddy Warner - the kachō-e illustration library (avian/assets/), the generation pipeline (avian/scripts/), the silhouette-mask collage layout, and the visual design originate there. This repo adapts them (Home Assistant card packaging, BirdNET-Go data layer, confidence-based poses, and the changes described in the commit history) under the terms below.
• BirdNET-Go by Tomi P. Hakala - the detection engine this card displays - packaged for Home Assistant by alexbelgium.
• BirdNET (Cornell Lab of Ornithology / Chemnitz University of Technology) - the bird-identification model underneath it all.

License: CC-BY-NC-SA-4.0 (see LICENSE), carried forward from AvianVisitors / BirdNET-Pi under share-alike. The whole repo - artwork and code - is non-commercial use only, and anything built on it must keep this license and these credits.
