Embedded-System-Design

Overview

Diagrams of Robotic arm Implementation

Block Diagram

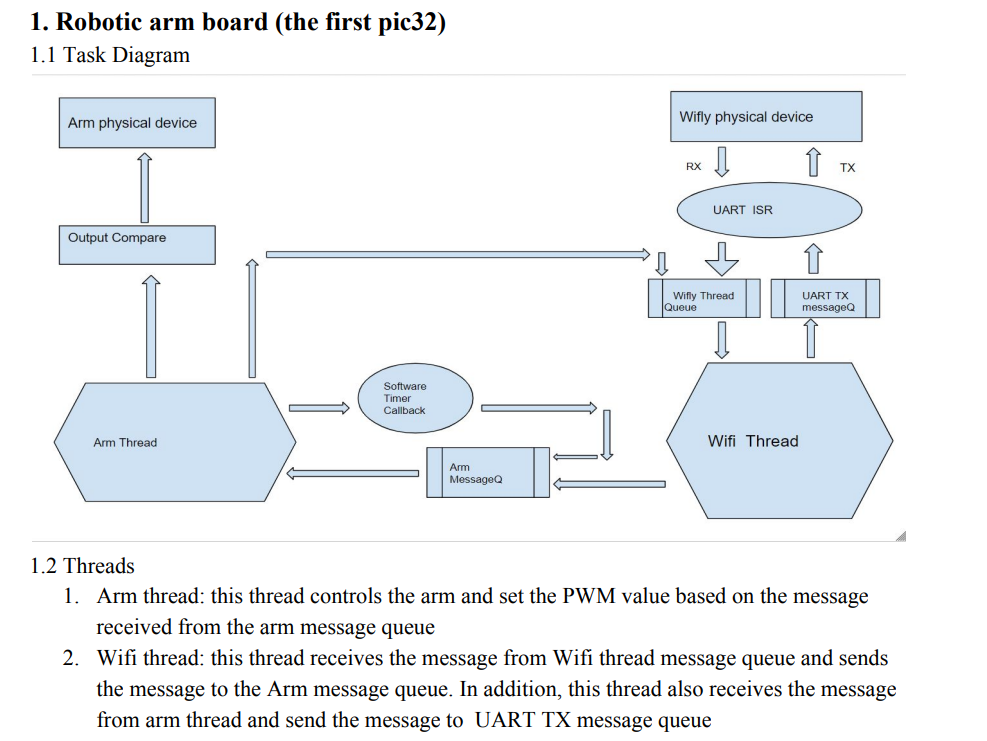

Task Diagram

Implementation detail

Define small actions, such as forearm from left to right or base from right to left, such as

threadStatus BRLfsm2(double *basePos) {
    baseRotateLeft(*basePos);
    SWtimer();
    *basePos = *basePos + 0.03;
    if(*basePos >= 1.85){
         return WAITING;
     }
     else {
         return WORKING;
     }
}

threadStatus BRRfsm(double *basePos) {
     baseRotateLeft(*basePos);
     SWtimer();
     *basePos = *basePos - 0.03;
     if(*basePos <= 1.1){
         return WAITING;
     }
     else {
         return WORKING;
     }
}

A complexMotion is defined by a set of small actions, such as

threadStatus complexMotion1(actionList *action, double *basePos, double *forearm){
     threadStatus temp;
     switch(*action) {
            case(FRF):
                temp = JumpToWorking();
                if(temp == WAITING){*action = CCLOSE;}
                return temp;
            case(CCLOSE):
                temp = clowCloseFSM();
                if(temp == WAITING){*action = BRR;}
                return temp;
            case(BRR):
                temp = BRRfsm(basePos);
                if(temp == WAITING){*action = COPEN;}
                return temp;
            case(COPEN):
                temp = clowOpenFSM();
                if(temp == WAITING){*action = CLOSE2;}
                return temp;
            case(CLOSE2):
                temp = clowCloseFSM();
                if(temp == WAITING){*action = BRL;}
                return temp;
            case(BRL):
                temp = BRLfsm(basePos);
                if(temp == WAITING){*action = COPEN2;}
                return temp;
            case(COPEN2):
                temp = clowOpenFSM2();
                if(temp == FINISHED){*action = FRF;}
                return temp;
            default:
                stopAllServos();
       }
}

Main FSM

void threadFSM(threadStatus *armThread, Instruction newInstruction) {
    static actionList inputAction = 0;
    static int start_action = 0;
    switch(*armThread) {
        case(WAITING):
             if (newInstruction.start == 2 || newInstruction.start == 3 ||newInstruction.start == 4){
                start_action = newInstruction.start;
                xTimerStop(GEToneShot,0);
                actionFSM(&inputAction, start_action);
                *armThread = WORKING;
             }
             else if(newInstruction.start == 0) {
                  WiFiQueType newResult = {.type = TX, .req = PUT, .name = ARM_NAME, .start = 1};
                  send_2_WIFI_QUEUE(newResult);
             }
             else {
                //send GET request every x miliseconds
                GET_timerStart();
             }
            break;
        case(WORKING):
              *armThread = actionFSM(&inputAction, start_action);
              if(*armThread == WAITING) {
                  WiFiQueType next = {.type = INNER_ACTION, .name = ARM_NAME, .start = start_action};
                  send_2_WIFI_QUEUE(next);
              }
            break;
        case(FINISHED):
                *armThread = WAITING;
                WiFiQueType newResult = {.type = TX, .req = PUT, .start = 1, .name = ARM_NAME};
                WiFiQueType init = {.type = TX, .name = ARM_NAME, .req = GET};
                send_2_WIFI_QUEUE(newResult);
                send_2_WIFI_QUEUE(init);
            break;
        default:
            LED_Test();
            break;
    }
}

The blocking queue. This thread is blocked here and wait for receive message from the queue

void ARM_APP_Tasks ( void )
{
    GET_timerStart();
    threadStatus inputStatus = WAITING;
    WiFiQueType init = {.type = TX, .name = ARM_NAME, .req = GET};
    send_2_WIFI_QUEUE(init);

    while(1){
        Instruction inputInstruction = ReceiveFromQueueFromServer();
        threadFSM(&inputStatus, inputInstruction);
    }
}

The init state is WAITING, and this thread send GET request every x miliseconds. The result will be send to the queue.

void GET_timerStart() {
     xTimerStart(GEToneShot,0);
}

void GET_callBack(TimerHandle_t  GEToneShot) {
     WiFiQueType init = {.type = TX, .name = ARM_NAME, .req = GET};
     send_2_WIFI_QUEUE(init);
}

If the result of the GET request is (newInstruction.start == 2 || newInstruction.start == 3 ||newInstruction.start == 4).

Then start execute a complex motion. The state is changed to WORKING

After a small action is finshed, the state is changed to WAITING, and a message will be send to the queue to WIFI thread, and WIFI thread will send a message to arm thread. Then the arm thread will execute next samll action

After a complex motion is finhsed, the state is changed to FINISHE, a message will be send to the queue to WIFI thread. The WIFI thread will send a message to server. The robotic arm is waiting for next instruction from server (send GET request every x millilseconds)

In addition, in order to decrease the moving speed. A software timer is used when execute small actions.

Implementation of server

#Name:         flaskServer.py
#Goal:         Run a flask server at a fixed address/port
#Written by:   Xuan Li
#For:          Team 10
#Last update:
#Comments:     Address: localhost / Port: 5000
#              Database: localhost:27017

from flask import Flask
app = Flask(__name__)
import pymongo
from pymongo import MongoClient
from flaskServerLogic import *

#Default host and port
client = MongoClient('localhost', 27017)
#Get database "ECE4534_test" (or create it)
db = client['ECE4534_test']
collection = db['collection']

#########################################################
#                   APP ROUTES - START
#########################################################
#Test your app with this (home)
@app.route("/")
def hello():
    return "Hello World!"

@app.route("/arm/<int:seqNum>", methods=['GET', 'PUT'])
def armRoutine(seqNum):
    checkSequence(0, seqNum)
    if request.method == 'GET':
        return get_logic("arm", collection, seqNum)
    elif request.method == 'PUT':
        return put_arm_logic("arm", collection, seqNum)

@app.route("/game/<int:seqNum>", methods=['GET', 'PUT'])
def gameRoutine(seqNum):
    checkSequence(1, seqNum)
    if request.method == 'GET':
        return get_game_logic(collection, seqNum)
    elif request.method == 'PUT':
        return put_game_logic("game", collection, seqNum)

@app.route("/pixy2/<int:seqNum>", methods=['GET', 'PUT'])
def pixytwoRoutine(seqNum):
    checkSequence(1, seqNum)
    if request.method == 'GET':
        return get_logic("pixy2", collection, seqNum)
    elif request.method == 'PUT':
        return put_pixytwo_logic("pixy2", collection, seqNum)

@app.route("/pixy3/<int:seqNum>", methods=['GET', 'PUT'])
def pixythreeRoutine(seqNum):
    checkSequence(2, seqNum)
    if request.method == 'GET':
        return get_logic("pixy3", collection, seqNum)
    elif request.method == 'PUT':
        return put_pixy_logic("pixy3", collection, seqNum)

@app.route("/pixy4/<int:seqNum>", methods=['GET', 'PUT'])
def pixyfourRoutine(seqNum):
    checkSequence(3, seqNum)
    if request.method == 'GET':
        return get_logic("pixy4", collection, seqNum)
    elif request.method == 'PUT':
        return put_pixy_logic("pixy4", collection, seqNum)

@app.route("/sonar3/<int:seqNum>", methods=['GET', 'PUT'])
def sonarthreeRoutine(seqNum):
    checkSequence(2, seqNum)
    if request.method == 'GET':
        return get_logic("sonar3", collection, seqNum)
    elif request.method == 'PUT':
        return put_sonar_logic("sonar3", collection, seqNum)

@app.route("/sonar4/<int:seqNum>", methods=['GET', 'PUT'])
def sonarfourRoutine(seqNum):
    checkSequence(3, seqNum)
    if request.method == 'GET':
        return get_logic("sonar4", collection, seqNum)
    elif request.method == 'PUT':
        return put_sonar_logic("sonar4", collection, seqNum)

@app.route("/motor3/<int:seqNum>", methods=['GET', 'PUT'])
def motorRoutine(seqNum):
    checkSequence(2, seqNum)
    if request.method == 'GET':
        return get_logic("motor3", collection, seqNum)
    elif request.method == 'PUT':
        return put_motor_logic("motor3", collection, seqNum)

@app.route("/motor4/<int:seqNum>", methods=['GET', 'PUT'])
def motorRoutines(seqNum):
    checkSequence(3, seqNum)
    if request.method == 'GET':
        return get_logic("motor4", collection, seqNum)
    elif request.method == 'PUT':
        return put_motor_logic("motor4", collection, seqNum)

@app.route("/enco/<int:seqNum>", methods=['PUT'])
def encoRoutine(seqNum):
    checkSequence(0, seqNum)
    if request.method == 'PUT':
        return put_enco_logic("enco", collection, seqNum)

@app.route("/stat0/<int:seqNum>", methods=['PUT'])
def stat0(seqNum):
    checkSequence(0, seqNum)
    if request.method == 'PUT':
        return board_stat_logic(collection, seqNum)

@app.route("/stat1/<int:seqNum>", methods=['PUT'])
def stat1(seqNum):
    checkSequence(1, seqNum)
    if request.method == 'PUT':
        return board_stat_logic(collection, seqNum)

@app.route("/stat2/<int:seqNum>", methods=['PUT'])
def stat2(seqNum):
    checkSequence(2, seqNum)
    if request.method == 'PUT':
        return board_stat_logic(collection, seqNum)

@app.route("/stat3/<int:seqNum>", methods=['PUT'])
def stat3(seqNum):
    checkSequence(3, seqNum)
    if request.method == 'PUT':
        return board_stat_logic(collection, seqNum)

@app.errorhandler(404)
def not_found(error=None):
    stat_Req_Helper(False)
    stat_Reply_Helper(False)
    return buildError(404)

@app.errorhandler(400)
def not_found(error=None):
    stat_Req_Helper(False)
    stat_Reply_Helper(False)
    return buildError(400)

#########################################################
#                    APP ROUTES - END
#########################################################


if __name__ == '__main__':
    app.run(debug = True,host='localhost',port = 5000)
    #app.run(debug = True, host = 'localhost', port = 5000, threaded=True)
