Weave — Onchain Index Protocol for Tokenized Equities

Built during the Arbitrum Open House London: Online Buildathon, 2026

Team: Yemi (Ikeh Chukwuka Favour) — OCD Labs

Weave lets anyone compose a thematic basket of tokenized stocks from Robinhood Chain's catalogue, publish it as a single investable onchain instrument, and earn a continuous share of the revenue that basket generates for as long as other investors hold it. Investors get instant diversified exposure to any equity theme through a single token that rebalances itself automatically, usable anywhere in DeFi as collateral or a transfer of value. See project description for more detailed information.

Overview

The Problem

Every thematic index that exists today was designed by a financial institution, packaged as an ETF, and sold to retail investors who had no say in its composition and no share in its economics. There is no mechanism for expressing a precise investment thesis as a composable financial instrument without institutional resources, regulatory approvals, and fund management infrastructure.

The Solution

Weave is a protocol that turns that raw material into a creator economy for financial products:

Anyone can create a basket — describe a thesis in plain language, the AI engine researches the catalogue and proposes a composition, you review and deploy it onchain.
Creators earn perpetually — every basket generates a management fee. 80% of that fee flows continuously to the basket creator through ERC-7641 revenue sharing.
Investors get DeFi-native exposure — basket tokens are standard ERC-20s usable as collateral, transferable, and redeemable at any time at current NAV.
Rebalancing is a design choice — creators choose at launch whether their basket maintains target weights automatically via Chainlink Automation or lets winners run freely.

Architecture

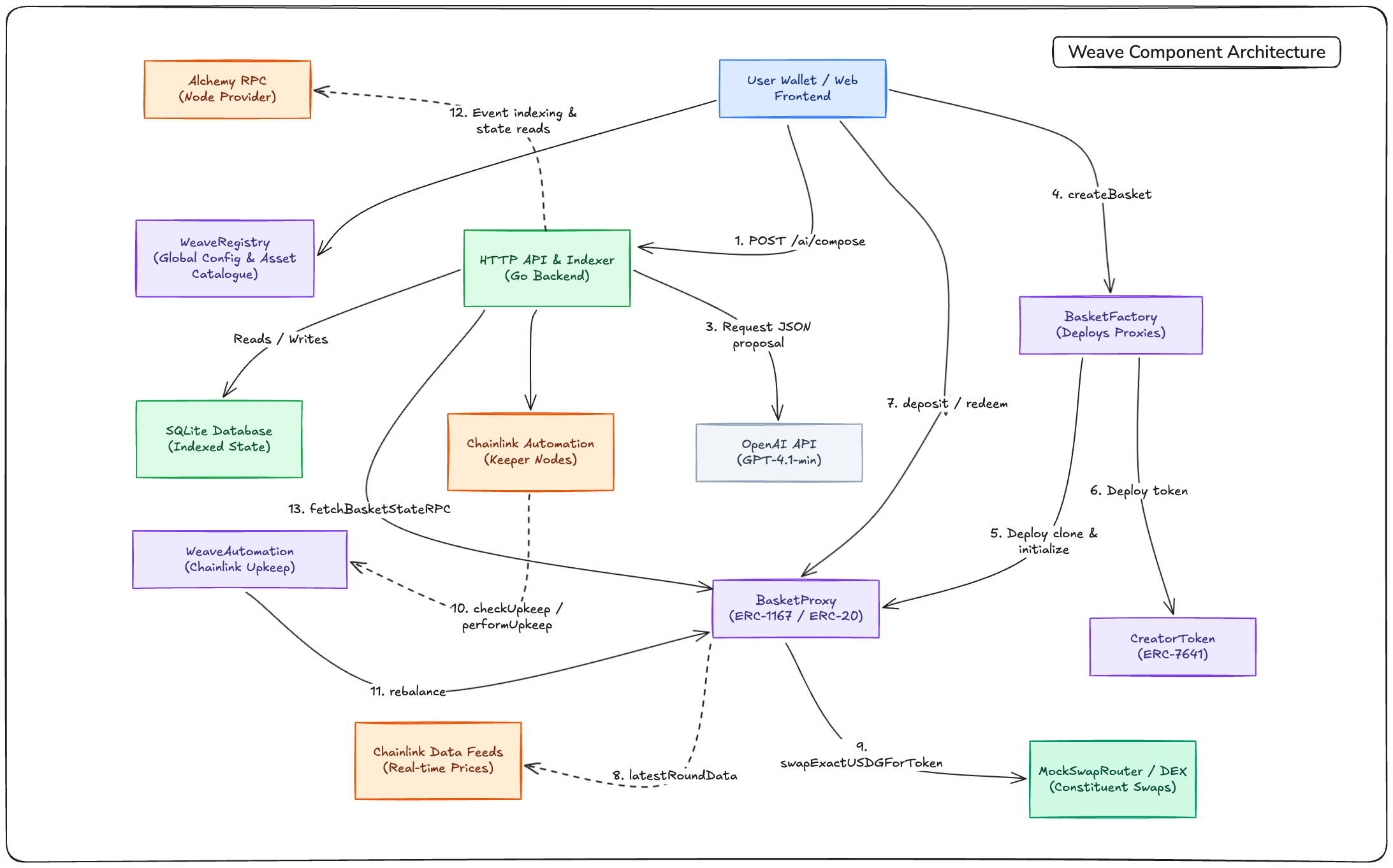

Component Architecture

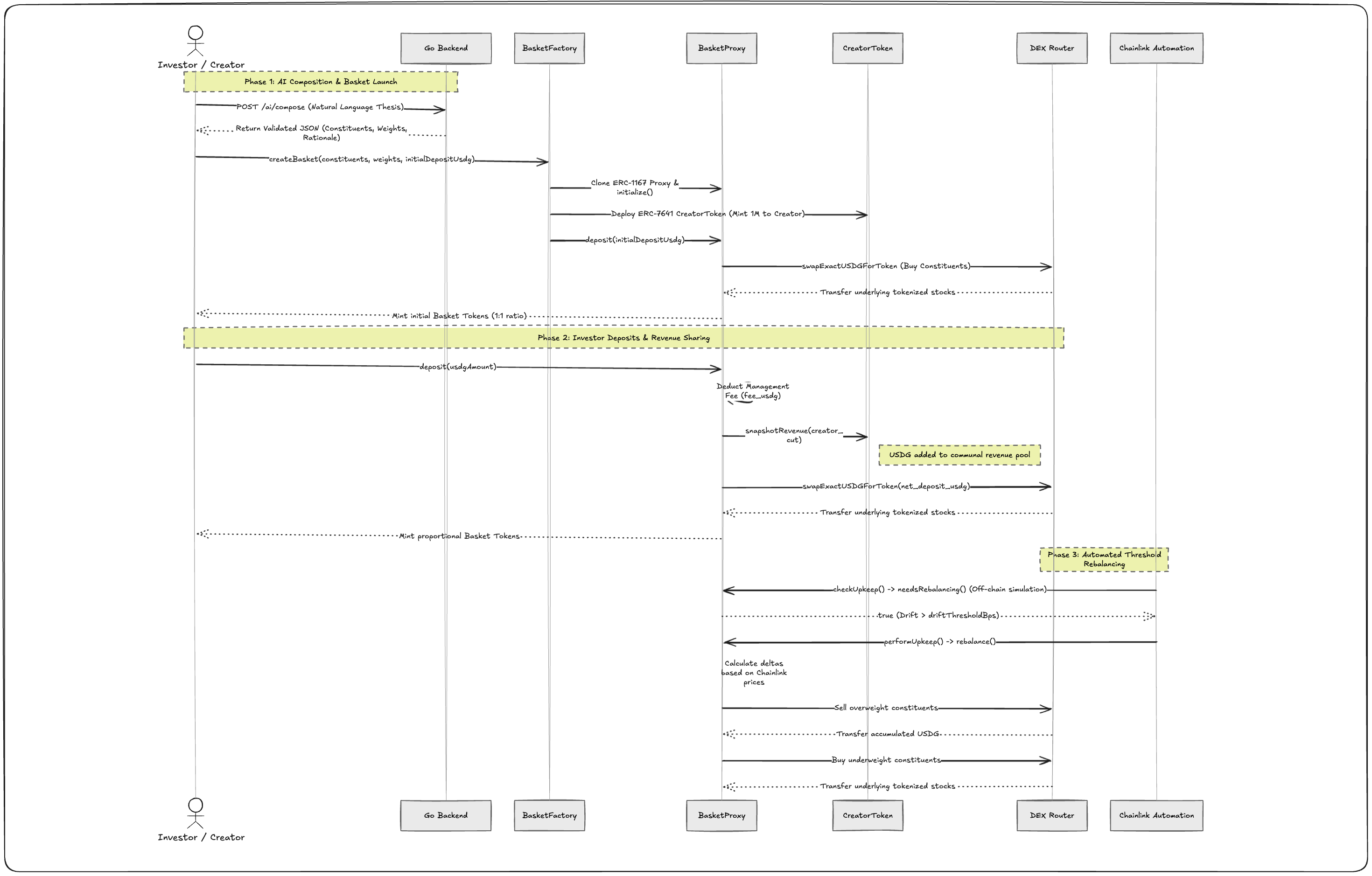

Request Sequence

Three layers:

Layer	Technology	Responsibility
Contracts	Solidity 0.8.24, Foundry	Basket deployment, deposits, redemptions, rebalancing, fee distribution, ERC-7641 revenue sharing
Backend	Go 1.22, SQLite	Event indexing, price polling, NAV computation, HTTP API, AI composition engine
Automation	Chainlink Automation	Continuous drift monitoring and permissionless rebalancing

Smart Contracts

Overview

All contracts are deployed on Robinhood Chain Testnet (chain ID 46630) and verified on Blockscout.

Contract	Purpose
`WeaveRegistry`	Single source of truth for protocol config, asset catalogue, basket index, and governance
`BasketFactory`	Deploys basket proxies and creator tokens atomically via ERC-1167 clone pattern
`BasketImplementation`	Shared logic for all basket proxies. Also the ERC-20 basket token
`CreatorToken`	ERC-7641 revenue share token. One per basket. Fixed supply of 1,000,000 units
`WeaveAutomation`	Chainlink Automation compatible upkeep. Monitors all rebalancing-enabled baskets
`SwapRouter`	Testnet DEX adapter. Executes swaps at oracle prices with a configurable spread
`OracleAdapter`	Testnet price oracle implementing `IWeaveOracle`. Drop-in replaceable with Chainlink feeds on mainnet

Key Design Decisions

ERC-1167 minimal proxy pattern. Every basket is a proxy clone pointing to a shared BasketImplementation logic contract. Deploying a basket costs ~300k gas instead of 3M+ gas for a full deployment. The storage layout in BasketImplementation is fixed and documented — never reorder fields between deployments.

ERC-7641 creator revenue sharing. The creator token implements ERC-7641 (Draft) with USDG as the revenue token. Revenue snapshots are triggered automatically by the basket on every fee collection. Holders claim proportional USDG at any time. The snapshot mechanism uses block-level balance checkpoints so transfers between snapshots are correctly handled — whoever held the tokens at the snapshot block owns that revenue.

Fee mechanics. Management fees are charged as a flat percentage on each deposit and redemption — not as a time-based AUM dilution. This keeps fee logic transparent and predictable. The fee is split 20% to the protocol treasury and 80% to the basket creator through the ERC-7641 snapshot mechanism.

NAV pricing bug found in testing. An early version of deposit() read totalValueUsdg after buying constituents, which caused the denominator to include the depositor's own tokens — systematically underpricing all deposits after the first. The fix snapshots supplyBefore and totalValueBefore before _buyConstituents runs and mints against those pre-purchase values. This is the standard and correct approach used by every production AMM and index fund.

Oracle abstraction. IWeaveOracle wraps either a real Chainlink AggregatorV3Interface feed or an OracleAdapter. Real Chainlink feed addresses for Robinhood Chain testnet stock tokens are not yet published — the registry's oracle field per asset is set to OracleAdapter contracts on testnet and will be updated via governance once Chainlink publishes addresses. No contract changes required.

Protocol pause. Governance can freeze all basket deposits and redemptions instantly via registry.pauseAll(). Rebalancing is deliberately not paused — reducing drift during a crisis is safe and desirable.

Per-leg slippage protection. Each constituent swap during a deposit is protected against oracle deviation using registry.maxSwapSlippageBps. Automation-triggered rebalance sell legs use WeaveAutomation.maxRebalanceSlippageBps. This protects against sandwich attacks on mainnet.

Building and Testing

# Install dependencies
make install

# Compile
make build

# Run full test suite
make test

# Verbose output for debugging
make test-v

# Gas snapshot
make snapshot

Deployment

# Set your environment variables
cp .env.example .env
# Fill in PRIVATE_KEY, RPC_URL, ALCHEMY_WS_URL

# Deploy all contracts to Robinhood Chain Testnet
make deploy

# Set oracle prices
make update-prices

# Fund the SwapRouter treasury
make fund-router

# Verify on Blockscout
make verify ADDR=0x... NAME=src/WeaveRegistry.sol:WeaveRegistry

The deployment script deploys in this order:

WeaveRegistry
OracleAdapter × 5 (one per stock, with initial prices)
SwapRouter
BasketImplementation
BasketFactory
WeaveAutomation
Wires everything into the registry
Registers all 5 stock assets

Go Backend

The backend is a Go service with SQLite storage. It is read-only infrastructure — it holds no private keys, submits no transactions, and does not interact with any protocol contract in a write capacity. The AI composition engine runs inside this process.

Components

Indexer (server/indexer/indexer.go)

On startup, syncs current chain state by calling registry.getSupportedAssets() and registry.getAllBaskets() directly via RPC, then seeds full basket metadata via basketState() calls. Scans historical events from the deploy block using a cursor stored in SQLite. Then subscribes to live events via Alchemy WebSocket. Events indexed:

BasketCreated — registers new baskets with full composition data
Deposited / Redeemed — investor activity
Rebalanced — rebalancing history
RevenueSnapshoted — creator fee distributions
AssetAdded / AssetDeactivated — catalogue changes
Suspended — basket suspension

Price Poller (server/prices/prices.go)

Reads IWeaveOracle.latestRoundData() for every asset that is a constituent of at least one active basket, every 60 seconds. Assets not held by any basket are not polled.

NAV Poller (server/nav/nav.go)

Calls navPerToken() and totalValueUsdg() on every non-suspended basket every 5 minutes via a 5-worker pool and writes to nav_history.

AI Composition Engine (server/ai/compose.go)

Receives a natural language thesis, reads the active catalogue from SQLite, calls OpenAI GPT-4.1-mini, validates the response against strict weight rules, and returns a structured JSON proposal. Retries once on validation failure with a stricter prompt.

HTTP API (server/api/api.go)

Eleven endpoints covering catalogue, baskets, portfolio, creator dashboard, and AI composition. Full interactive documentation at GET /docs.

Database (server/db/)

SQLite with WAL journal mode. WAL allows concurrent readers with a single writer, appropriate for a workload where the indexer writes continuously and HTTP handlers read simultaneously.

Running

# Install Go dependencies
make go-deps

# Build binary
make go-build

# Run (requires .env)
make go-run

The backend starts at http://localhost:8080. Interactive API docs at http://localhost:8080/docs.

AI Composition Engine

The AI composition engine is embedded in the Go backend (server/ai/compose.go). It calls OpenAI GPT-4.1-mini directly via the OpenAI REST API.

Why GPT-4.1-mini? GPT-4.1 was specifically trained for instruction-following reliability. On OpenAI's internal hard instruction eval, GPT-4.1 scores 49.1% vs GPT-4o's 29.2% — a 20-point gap that directly translates to fewer retry failures when the model must return exactly 10,000 bps summed weights with only valid catalogue addresses. GPT-4.1-mini carries most of that improvement at significantly lower cost.

Validation

Every LLM response is validated before returning to the caller:

All constituent addresses exist in the active catalogue
Symbol matches the catalogue entry for each address
No duplicate constituent addresses
Weight sum equals exactly 10,000 bps
3–12 constituents
No individual weight below 100 bps or above 5,000 bps
Non-empty rationale for each constituent

If validation fails, the engine retries once with a stricter JSON-only prompt before returning a 502 to the frontend.

Price Simulation

Oracle prices drift automatically on the deployed testnet deployment using a simulation script:

# Run price simulation (drifts each price ±5% from its current on-chain value)
set -a && source .env && set +a && \
  while true; do ./script/update-prices.sh || true; sleep 300; done >> /tmp/weave-prices.log 2>&1 &

# Monitor
tail -f /tmp/weave-prices.log

API Reference

Interactive Swagger UI documentation is served by the Go backend at:

http://localhost:8080/docs
https://weave.up.railway.app/docs

The raw OpenAPI 3.0 specification is available at:

http://localhost:8080/openapi.json

Quick Reference

Method	Path	Description
`GET`	`/catalogue`	All active tokenized stock assets with oracle prices
`GET`	`/catalogue/:address`	Single asset by token address
`GET`	`/prices`	Latest oracle prices for constituent assets
`GET`	`/baskets`	All published baskets with NAV and AUM
`GET`	`/baskets/:address`	Full basket detail
`GET`	`/baskets/:address/performance`	NAV history time series
`GET`	`/baskets/:address/positions/:wallet`	Investor position in a basket
`GET`	`/positions/:wallet`	All positions for a wallet
`GET`	`/creator/:wallet`	Creator dashboard with claimable revenue
`GET`	`/creator-tokens/:address`	Creator token revenue snapshot history
`POST`	`/ai/compose`	AI basket composition from natural language thesis

Decimal Conventions

All token amounts are raw uint256 strings to avoid JavaScript precision loss:

Asset	Decimals	Raw example	Display
USDG	6	`"100000000"`	$100.00
Basket tokens	18	`"1000000000000000000"`	1.0
Oracle prices	8	`"49701000000"`	$497.01
Weights	bps	`5000`	50%

Local Development

Prerequisites

Foundry — Solidity toolchain
Go 1.22+
SQLite3 (sudo apt-get install sqlite3 on Ubuntu)
An Alchemy account with a Robinhood Chain Testnet app
An OpenAI API key

First-Time Setup

# Clone
git clone git@github.com:OCD-Labs/Weave.git
cd Weave

# Install Forge dependencies
make install

# Install Go dependencies
make go-deps

# Copy environment template
cp .env.example .env
# Fill in: PRIVATE_KEY, RPC_URL, ALCHEMY_WS_URL, OPENAI_API_KEY

Getting Testnet Tokens

Add Robinhood Chain Testnet to MetaMask:
- RPC: https://rpc.testnet.chain.robinhood.com
- Chain ID: 46630
- Symbol: ETH
- Explorer: https://explorer.testnet.chain.robinhood.com
Get ETH and stock tokens from the Robinhood faucet: https://faucet.testnet.chain.robinhood.com
Get an Alchemy API key: https://dashboard.alchemy.com → Create App → Robinhood Chain Testnet

Running

make go-run

The backend starts at http://localhost:8080.

Deployment

Contract Deployment (Robinhood Chain Testnet)

make deploy

After deployment, update .env with the printed contract addresses, then:

make update-prices   # set initial oracle prices
make fund-router     # fund the SwapRouter treasury

Verify all contracts:

make verify ADDR=<REGISTRY>    NAME=src/WeaveRegistry.sol:WeaveRegistry
make verify ADDR=<ROUTER>      NAME=src/SwapRouter.sol:SwapRouter
make verify ADDR=<IMPL>        NAME=src/BasketImplementation.sol:BasketImplementation
make verify ADDR=<FACTORY>     NAME=src/BasketFactory.sol:BasketFactory
make verify ADDR=<AUTOMATION>  NAME=src/WeaveAutomation.sol:WeaveAutomation
make verify ADDR=<ORACLE_TSLA> NAME=src/OracleAdapter.sol:OracleAdapter

Environment Variables

Copy .env.example to .env and fill in all required values.

Variable	Required	Description
`PRIVATE_KEY`	Yes	Deployer wallet private key (testnet only)
`DEPLOYER_ADDRESS`	Yes	Deployer wallet address
`RPC_URL`	Yes	Robinhood Chain testnet public RPC (`https://rpc.testnet.chain.robinhood.com`)
`ALCHEMY_WS_URL`	Yes	Alchemy WebSocket RPC for the live event subscription
`WEAVE_REGISTRY_ADDRESS`	Yes (after deploy)	Deployed registry address
`BASKET_FACTORY_ADDRESS`	Yes (after deploy)	Deployed factory address
`SWAP_ROUTER_ADDRESS`	Yes (after deploy)	Deployed SwapRouter address
`DEPLOY_BLOCK`	Yes (after deploy)	Block number of registry deployment for indexer cursor
`OPENAI_API_KEY`	Yes	OpenAI API key for the AI composition engine
`OPENAI_MODEL`	No	Defaults to `gpt-4.1-mini`
`DB_PATH`	No	SQLite path. Defaults to `./server/weave.db`
`API_PORT`	No	Backend HTTP port. Defaults to `8080`
`PRICE_POLL_INTERVAL_SECS`	No	Oracle price poll interval in seconds. Defaults to `60`
`NAV_POLL_INTERVAL_SECS`	No	NAV computation interval in seconds. Defaults to `300`

Built on Robinhood Chain testnet — an Arbitrum L2 designed for tokenized real-world assets. Robinhood Chain is the only blockchain with a catalogue of tokenized equities at meaningful scale, making Weave's equity index protocol possible for the first time.
