Water Level Monitoring & Pump Control System is a dynamic prototype developed as part of our Computer Organization and Architecture and Design Thinking and Management courses. This project combines both hardware and software to create a fully functional model that simulates water level detection and pump control in an innovative way.
Find Documentation & Resources Below! 📚
This project employs an ultrasonic sensor to measure water level and automatically controls a pump—with the option for manual override. Key highlights include:
- Accurate Measurement: The sensor calculates water level percentage based on a calibrated value stored in EEPROM.
- Smart Pump Control: A motor-driven wheel (representing a water pump) starts rotating when the water level is low and stops when the level is full.
- Prototype Innovation: Instead of using real water, a paper blocks the ultrasonic sensor to mimic the water level in a tank.

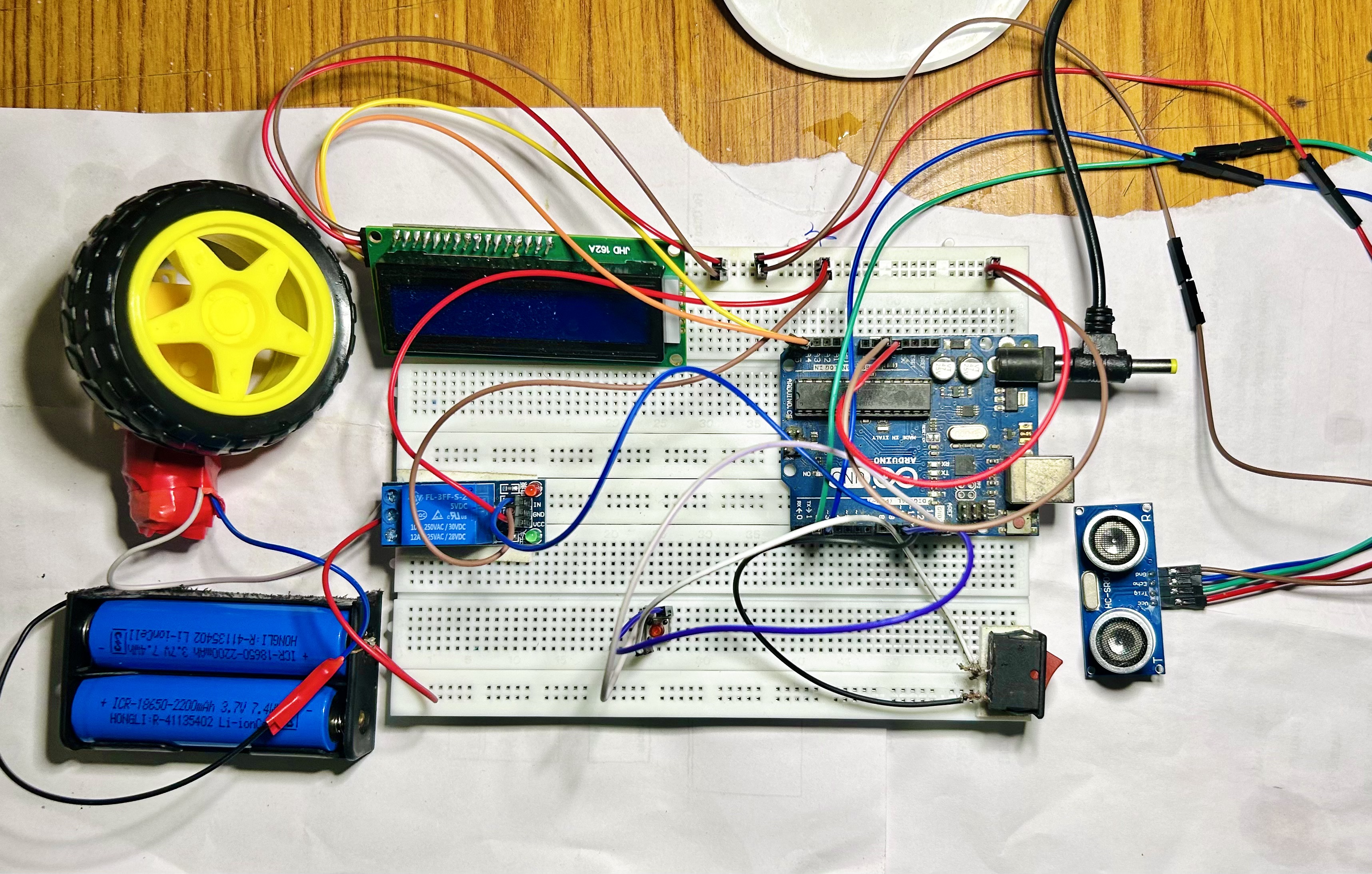

Check the image above for our working model!
-
Real-Time Monitoring:
The ultrasonic sensor provides continuous water level readings, which are displayed on an I²C LCD. -
Automatic & Manual Modes:
The system switches to automatic pump control when water is low and allows manual override via push buttons. -
Prototype Simulation:
Our model uses a motor and wheel to simulate a water pump—when activated, the wheel spins (indicating water pumping), and it stops when the simulated tank is full.
Working Model Video Demo:
Watch the Demo
- Ultrasonic Sensor: Measures water level.
- I²C LCD Display: Shows water level, pump status, and operating mode.
- Motor & Wheel: Mimic a water pump; the wheel rotates when the pump is on.
- Paper Tank Model: Simulates water by blocking the ultrasonic sensor.
- Platform: Arduino (C/C++ programming)
- Libraries Used:
EEPROMWireLiquidCrystal_I2C
- Working Demo Video: Watch Here
- Photo of the Model:
- IEEE Paper: Download IEEE Paper
- Arduino IDE installed with required libraries.
- Basic understanding of Arduino programming and electronic circuit assembly.
-
Assemble the Hardware:
Follow the schematic to connect the ultrasonic sensor, LCD, motor, and push buttons to your Arduino.(Refer IEEE Paper for the circuit diagram) -
Upload the Code:
Open the project in Arduino IDE, select the correct board and port, and upload the code. -
Calibrate & Run:
Use the provided buttons to calibrate the system and observe real-time water level monitoring and pump control.
