WebLBM

Fast, memory-efficient Lattice Boltzmann CFD (D2Q9) in the browser via WebGPU.

Live Demo

Overview

WebLBM runs a 2D D2Q9 LBM solver fully on the GPU with WGSL compute shaders. The implementation is optimized for speed and memory efficiency with:

• Shifted DDFs
• FP16 storage (f16) with FP32 arithmetic
• Esoteric Pull in-place streaming
• SoA layout for populations

This project is strongly inspired by Moritz Lehmann's work, especially FluidX3D and related LBM optimization papers.

Startup defaults:

• Preset: Von Kármán Street
• Resolution: 1024 x 1024

Requirements

• Node.js + npm for local development
• A WebGPU-enabled browser
• shader-f16 GPU feature support (required by the app)

If shader-f16 is unavailable, initialization fails with an explicit error message.

Quick Start

npm install
npm run dev

Runtime Controls

• Restart Sim: reinitializes the current simulation state
• Pause/Resume: toggles stepping
• Settings / Hide: toggles the control panel visibility; on small screens settings use a dedicated full-screen view
• Scene selector: switches between geometry presets
• Resolution: 256, 512, 1024, 2048 (power-of-two options, clamped by hardware limits and app cap)
• Vis Type: velocity magnitude or vorticity
• Colormap: VIRIDIS, TURBO, RdBu
• Paint mode: adds solid cells
• Erase mode: restores fluid cells
• Reset Paint: clears all manual paint/erase changes and restores the current scene's default cells
• Brush size slider: controls paint radius

Runtime Metrics

• Total MLUPS: end-to-end throughput using all cells
• Fluid MLUPS: end-to-end throughput excluding solid-mask cells

Presets

Current built-in scenes:

• Empty Tunnel
• Von Kármán Street
• Staggered Grid
• Backward-Facing Step
• Venturi (Nozzle)
• Porous Media (Random Disks)

Technical Notes

Shifted DDFs (Skordos, 1993)

The solver works with shifted populations:

$f_i^{\text{shifted}} = f_i - w_i$

where $w_i = f_i^{\mathrm{eq}}(\rho = 1, \vec{u} = 0)$ are the lattice weights.

Macroscopic fields are recovered from shifted populations as:

• $\rho = 1 + \sum_i f_i^{\text{shifted}}$
• $\vec{u} = \frac{1}{\rho}\sum_i \left(\mathbf{c}_i f_i^{\text{shifted}}\right)$

This is exactly how density/velocity are reconstructed in the step shader.

Paper: https://arxiv.org/abs/comp-gas/9306002

FP16 storage

DDFs are stored as scaled f16 values and decoded to f32 for arithmetic. This reduces memory traffic and capacity pressure for large grids. With a $2^{15}$ scaling, represented values cover about $[-2, 2]$ in shifted space, which matches the typical DDF magnitude range well.

const FP16S_SCALE     : f32 = 32768.0;       // 2^15
const FP16S_INV_SCALE : f32 = 1.0 / 32768.0; // 2^-15

fn decode_f16s(p: f16) -> f32 {
  return f32(p) * FP16S_INV_SCALE;
}

fn pack_f16s(v: f32) -> f16 {
  return f16(v * FP16S_SCALE);
}

Paper: https://epub.uni-bayreuth.de/id/eprint/6559/

Collision model (BGK / SRT)

Collision uses single-relaxation-time BGK:

$f_i \leftarrow (1 - \omega)f_i + \omega f_i^{\mathrm{eq}}$

with:

• $\omega = \frac{1}{\tau}$
• $\nu = c_s^2\left(\tau - \frac{1}{2}\right)$, with $c_s^2 = \frac{1}{3}$ for D2Q9

The same omega/tau relation is used in the implementation.

Esoteric Pull (Lehmann, 2022)

Streaming is done in-place (single-population storage, parity-controlled access) instead of ping-pong buffers.

Paper: https://www.mdpi.com/2079-3197/10/6/92

Memory layout and mask

Populations are stored in SoA form:

f[dir * C + cell], where C = Nx * Ny, dir in [0..8].

The stepping shader uses bitmask-based wrap indexing, so power-of-two grid sizes are enforced in the UI.

Mask flags:

• CELL.FLUID: fluid cell
• CELL.SOLID: bounce-back solid
• CELL.EQ: equilibrium boundary (inlet/outlet)

Acknowledgments

This project was inspired by Moritz Lehmann's FluidX3D work and related LBM optimization papers. FluidX3D: https://github.com/ProjectPhysX/FluidX3D

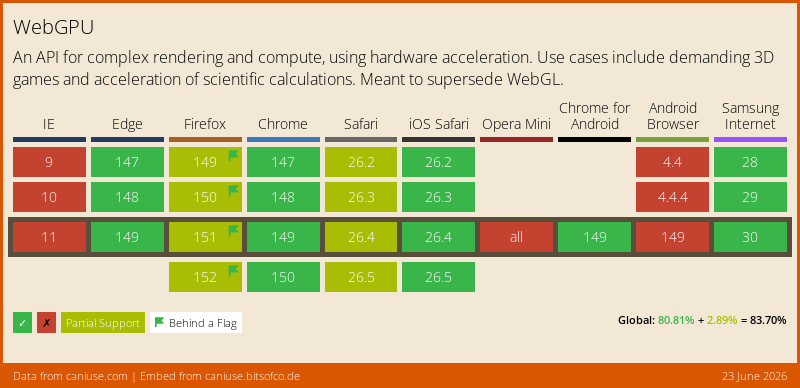

Browser Support
