fix(dashboard): auto-expand small containers on layer navigation#492
fix(dashboard): auto-expand small containers on layer navigation#492Muammer06 wants to merge 5 commits into
Conversation
Collapsed ContainerNode groups were nearly invisible at typical fitted
zoom levels (0.10–0.20×), forcing users to click each container manually
or zoom to 1.0× before any file nodes became visible.
Two-part fix:
1. Auto-expand on first layer visit (GraphView.tsx)
- On `drillIntoLayer`, expand all containers whose child count is
≤ AUTO_EXPAND_MAX_CHILDREN (10). Large containers stay collapsed to
avoid cascading ELK Stage 1 re-layouts that can freeze the UI.
- Per-layer Set (autoExpandedLayersRef) prevents re-expansion on
return visits, preserving manual collapse/expand decisions.
- After expansion triggers a bumpStage1Tick re-layout, a second
effect fires fitView() once layoutStatus returns to "ready",
keeping all expanded nodes in the viewport.
- `newLayoutRef` (new ref) blocks a premature fitView on the previous
layer's stale nodes while the new ELK layout is in flight.
2. Collapsed container visibility (ContainerNode.tsx)
- Raised border opacity: 0.25 → 0.55 (collapsed), 0.6 → 0.85 (expanded)
- Border always 1.5 px (was 1 px when collapsed)
- Background: slight gold tint (rgba 212,165,116,0.06) when collapsed,
near-transparent white when expanded
Co-Authored-By: Claude Sonnet 4.6 <noreply@anthropic.com>
This reverts commit a5b0038.
|
@codex review this |
![chatgpt-codex-connector[bot]](https://avatars.githubusercontent.com/in/1144995?s=60&v=4){kind=small}
There was a problem hiding this comment.
💡 Codex Review
Here are some automated review suggestions for this pull request.
Reviewed commit: 935b6ecda8
ℹ️ About Codex in GitHub
Your team has set up Codex to review pull requests in this repo. Reviews are triggered when you
- Open a pull request for review
- Mark a draft as ready
- Comment "@codex review".
If Codex has suggestions, it will comment; otherwise it will react with 👍.
Codex can also answer questions or update the PR. Try commenting "@codex address that feedback".
| if (navigationLevel !== "layer-detail" || !activeLayerId) return; | ||
| if (!containerIds || containerIds.length === 0 || !containers) return; | ||
| if (autoExpandedLayersRef.current.has(activeLayerId)) return; | ||
| autoExpandedLayersRef.current.add(activeLayerId); |
There was a problem hiding this comment.
When navigating directly from one detail layer to another (for example via a portal or tour step), topo.containers still holds the previous layer until the async Stage 1 layout calls setTopology. This effect runs immediately on the activeLayerId change, records the new layer as already auto-expanded, and then filters/expands stale container ids; once the real topology arrives the guard skips the layer, so small containers are not auto-expanded, and colliding ids can even expand a large container based on the previous layer’s child count. Gate this on fresh topology/layout for the current layer before adding it to autoExpandedLayersRef.
Useful? React with 👍 / 👎.
There was a problem hiding this comment.
Confirmed and fixed in 33b42d8.
Root cause: containers / containerIds / nodes all derive from the same topo topology state, so on a direct layer→layer jump (portal/tour, where navigationLevel stays "layer-detail") they hold the previous layer for one flush until the async Stage 1 ELK calls setTopology. The effect ran in that window, added the new activeLayerId to autoExpandedLayersRef, and expanded stale ids — so once fresh topology arrived the has(activeLayerId) guard skipped the layer and its small containers never expanded.
This staleness window was already known: the sibling fitView effect bails on it via newLayoutRef. The fix applies the same guard before mutating the ref:
if (navigationLevel !== "layer-detail" || !activeLayerId) return;
if (!containerIds || containerIds.length === 0 || !containers) return;
if (newLayoutRef?.current) return; // stale topology — wait for fresh layout
if (autoExpandedLayersRef.current.has(activeLayerId)) return;
autoExpandedLayersRef.current.add(activeLayerId);When ELK completes, newLayoutRef clears and setTopology re-renders → the effect re-runs with fresh containers and marks/expands the layer correctly.
On a direct layer→layer navigation (portal/tour, navigationLevel stays "layer-detail"), containers/containerIds still hold the previous layer's topology until the async Stage 1 ELK setTopology lands. The initial auto-expand effect ran in that window, marked the new layer in autoExpandedLayersRef and expanded stale container ids; once fresh topology arrived the guard skipped the layer, so the new layer's small containers never auto-expanded. Bail while a new-layer layout is in flight using the existing newLayoutRef (same guard the fitView effect already uses) before mutating the ref. Co-Authored-By: Claude Opus 4.8 (1M context) <noreply@anthropic.com>
|
@Lum1104 I solved the probably bug, you can check |
2 participants
Problem
When navigating into a layer, all file nodes were hidden inside collapsed

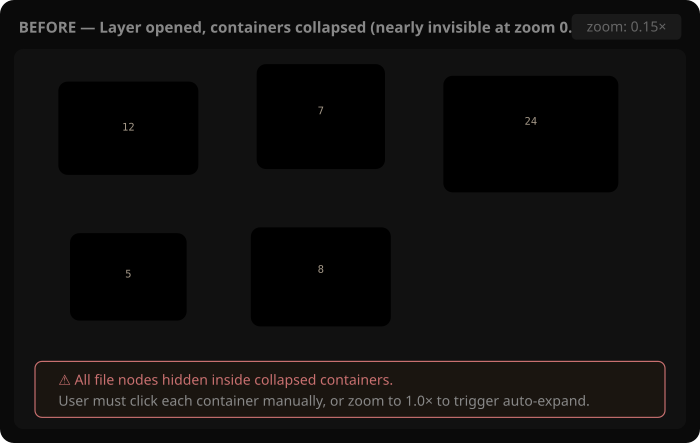

ContainerNodegroups. At the typical fitted zoom level (0.10–0.20×), collapsed containers appeared as nearly-invisible dark boxes with faint 1px borders — users had to either click every container manually or zoom in to 1.0× before any file nodes became readable.Before

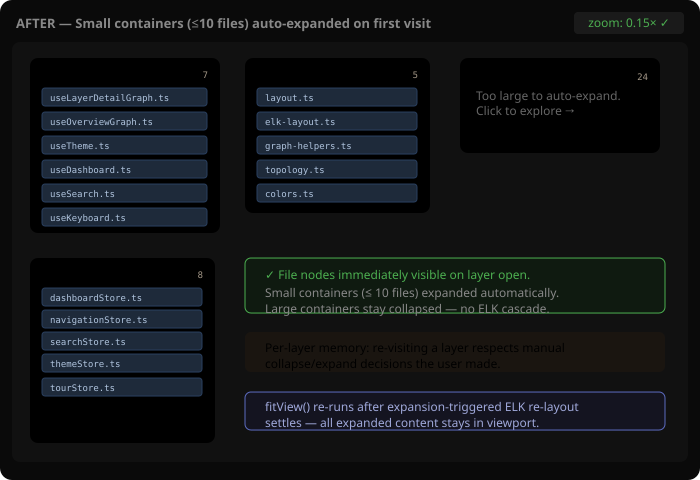

After
Solution
Two-part fix across
GraphView.tsxandContainerNode.tsx.1. Auto-expand small containers on first layer visit (
GraphView.tsx)drillIntoLayerfires, an effect expands all containers whose child count ≤AUTO_EXPAND_MAX_CHILDREN(10)Set(autoExpandedLayersRef) ensures re-visiting a layer respects whatever the user collapsed/expanded manually — no second auto-expandbumpStage1Tickre-layout, a second effect callsfitView()oncelayoutStatusreturns to"ready", keeping all expanded nodes in the viewportNew
newLayoutRefguard (premature fitView fix):A ref set synchronously in the ELK Stage 1 effect prevents the
nodes-watchfitView effect from firing on the previous layer's stale nodes before the new layout arrives.2. Collapsed container visibility (

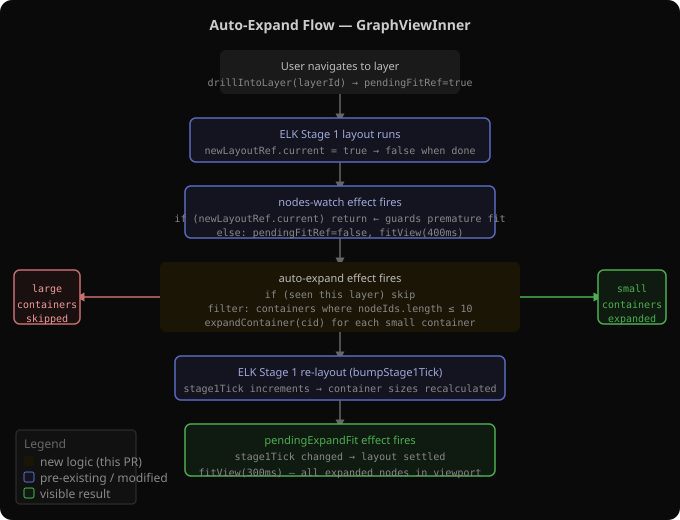

ContainerNode.tsx)rgba(212,165,116,0.25)1pxrgba(212,165,116,0.55)1.5pxrgba(212,165,116,0.60)1.5pxrgba(212,165,116,0.85)1.5pxrgba(255,255,255,0.02)rgba(212,165,116,0.06)(gold tint)rgba(255,255,255,0.02)rgba(255,255,255,0.04)Flow diagram
Why not expand ALL containers?
Expanding every container on a large layer (e.g. 30 folders × 40 files each) triggers 30 parallel ELK layouts, then a
bumpStage1Tickper container whose estimated size deviates > 20% from Stage 1, leading to cascading re-layouts. The≤ 10threshold bounds ELK work: a layer with 20 folders where 15 are large still expands the 5 small ones instantly, and the remaining 15 stay readable as labeled collapsed boxes.The threshold is a constant (
AUTO_EXPAND_MAX_CHILDREN) — easy to tune or make configurable later.Testing
