🌐 Traffic Monitor

A modern, feature-rich Windows network traffic monitoring application — rebuilt from the ground up.

---

📖 What is Traffic Monitor?

Traffic Monitor is a lightweight yet powerful Windows application that monitors your internet and network traffic in real time. It displays live upload/download speeds directly on your desktop and inside the Windows taskbar — designed with a modern, clean UI that adapts to your system's dark or light theme.

Built with WPF on .NET 8, Traffic Monitor is fully portable, supports multiple languages including Arabic (RTL), and comes packed with advanced features like a built-in speed test, process-level network tracking, and detailed historical traffic statistics.

---

✨ Features at a Glance

Category	Features
📊 Live Monitoring	Real-time upload/download speed, today's total usage, active connection type
🪟 Taskbar Window	Embedded taskbar widget that auto-detects light/dark theme
🔍 Speed Test	Built-in speed test with animated gauge, ping, jitter, packet loss, ISP info
🧩 Process Monitor	Per-process network usage with icons, live bars, and sortable list
📅 Traffic History	Daily/monthly/yearly stats with list view and interactive calendar view
⚙️ Options	Full settings panel: theme, language, opacity, startup, intervals, notifications
🌍 Multi-Language	5 languages: English, Arabic (RTL), Spanish, French, Russian
🔔 Notifications	Custom animated toast notifications (success, warning, error, info)
🎨 Theming	Light / Dark / Auto theme with smooth transitions and DPI-aware rendering
🪟 Transparency	Global window opacity control (30–100%)

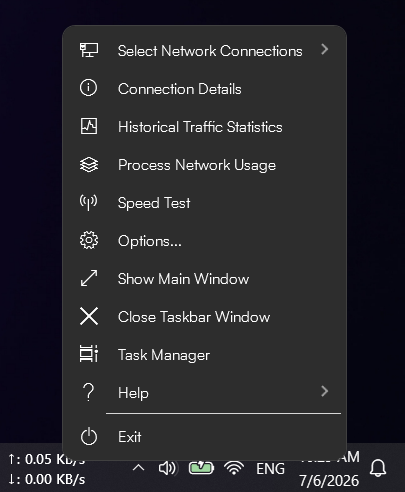

📋 System Tray	Minimize to tray, tooltip with live stats, context menu

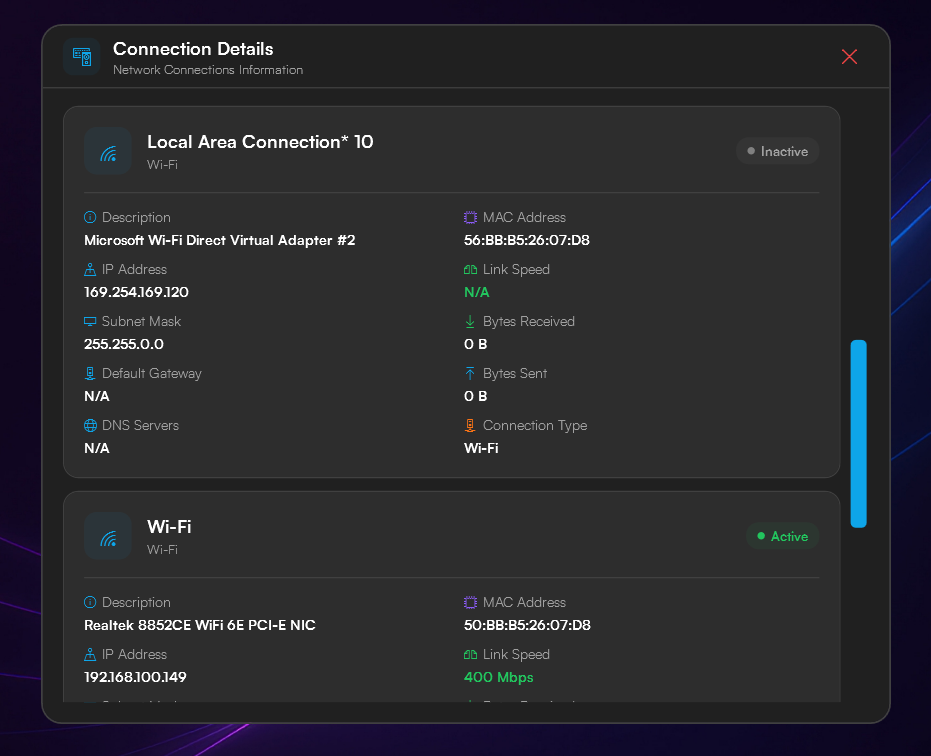

🌐 Connection Details	Full adapter info: IP, MAC, gateway, DNS, speed, bytes sent/received

---

🖼️ Screenshots

---

🚀 Quick Start

📥 Download

Download the latest release from the Releases page.

💻 System Requirements

Requirement	Value
OS	Windows 10 / 11 (Windows 7/8 supported)
Framework	.NET 8.0-windows
Architecture	x64 / x86 (AnyCPU)
RAM	~20 MB
Disk	~15 MB

🛠️ Installation

1. Download TrafficMonitor.exe from Releases
2. Run the executable — no installation required (fully portable)
3. Settings are stored in: HKEY_CURRENT_USER\SOFTWARE\TrafficMonitor
4. Traffic history is saved to: %AppData%\TrafficMonitor\history.json

---

🏗️ Architecture Overview

🪟 Application Windows

Window	Purpose

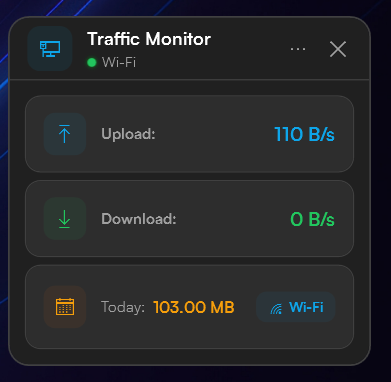

MainWindow	Desktop overlay: live upload/download/today stats, connection badge
TaskbarWindow	Embedded taskbar widget with auto theme detection

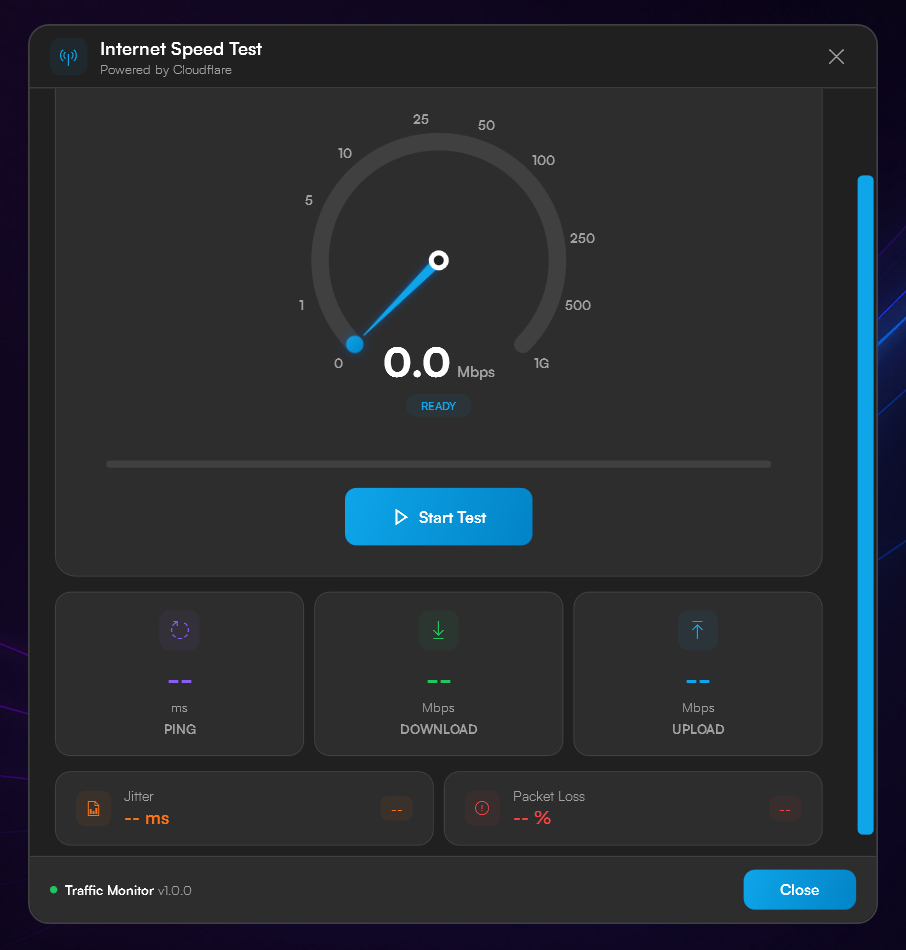

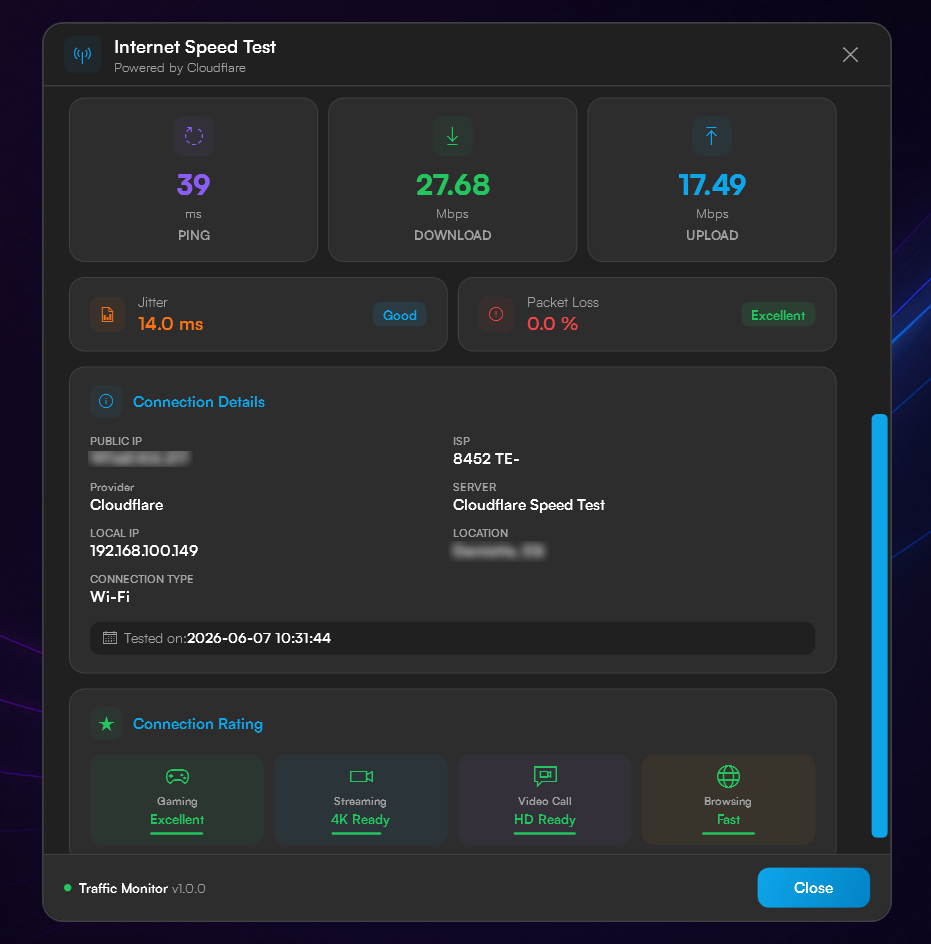

SpeedTestWindow	Full speed test with animated gauge, results, and connection ratings
ProcessNetworkWindow	Per-process network usage with real-time bars

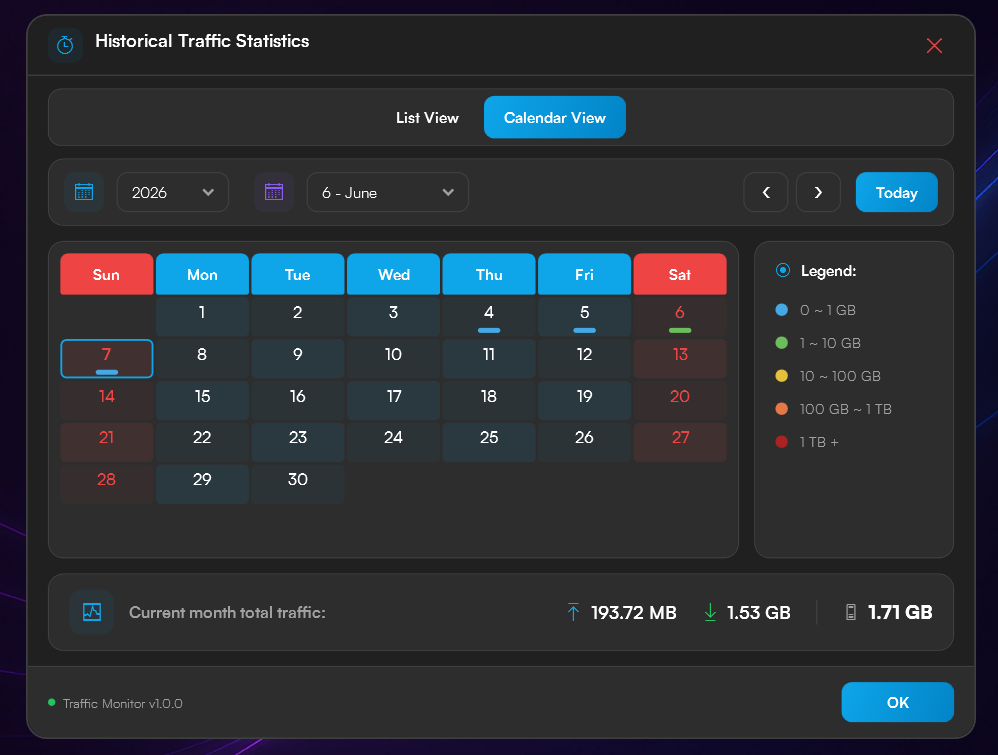

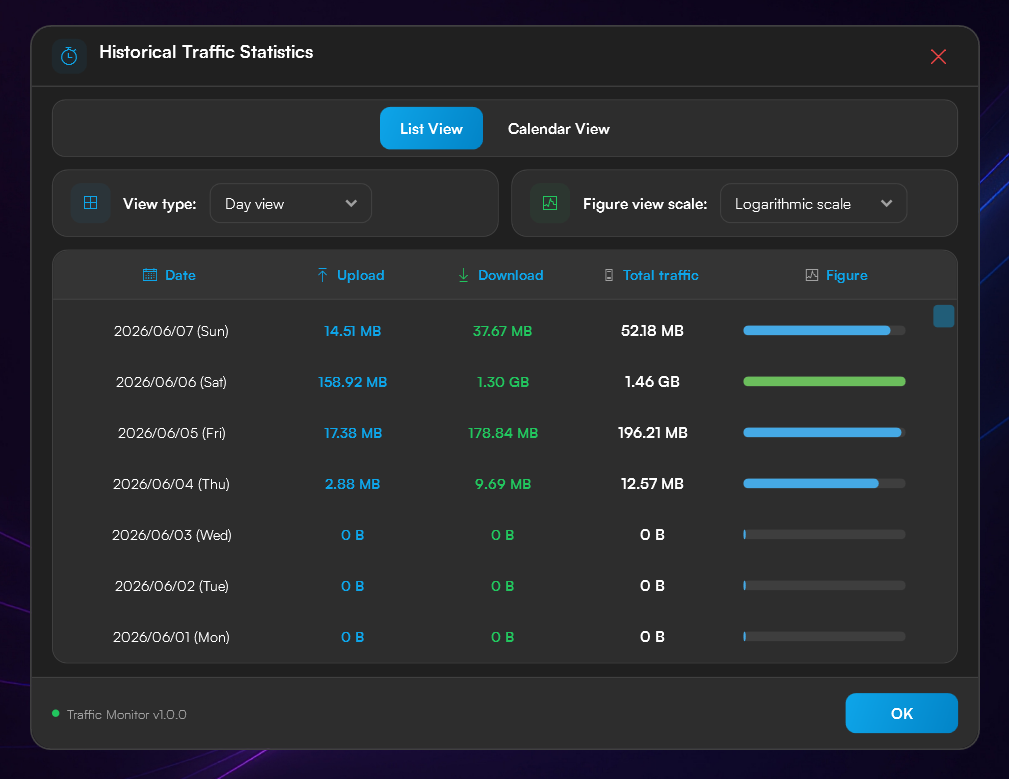

HistoryWindow	Traffic history (list + calendar views) with month summary
NetworkInfoWindow	Detailed adapter information for all connections

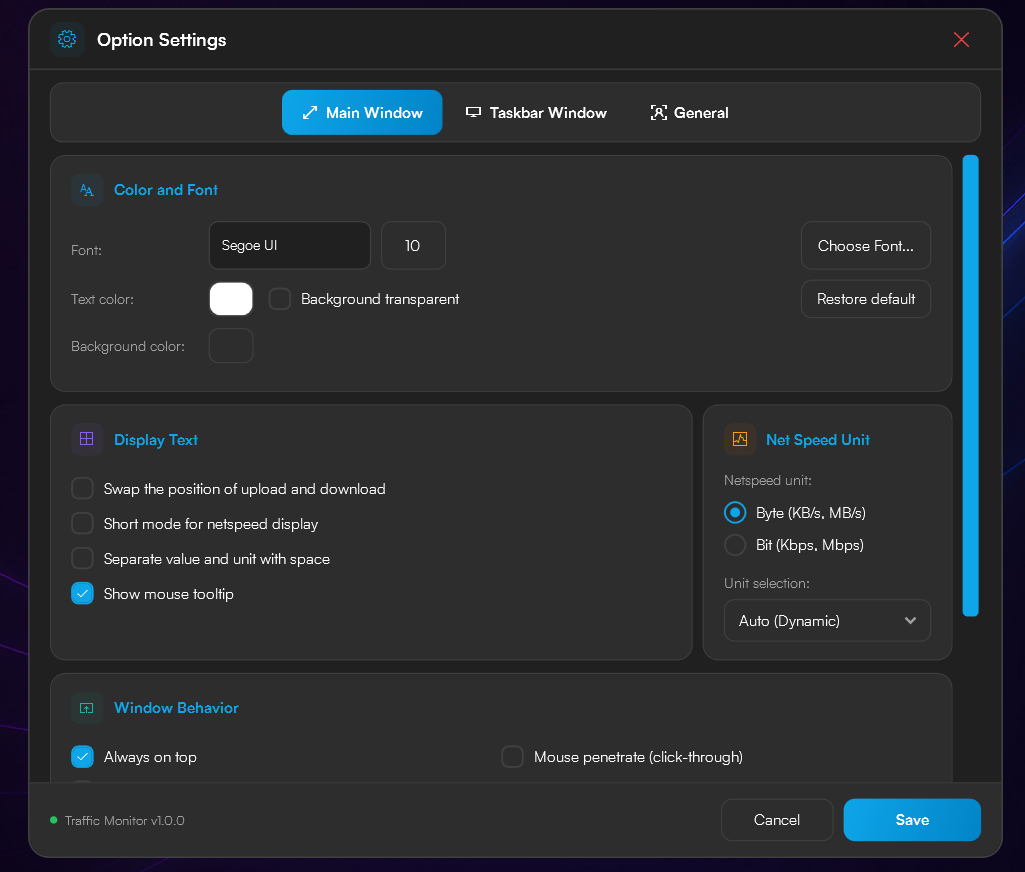

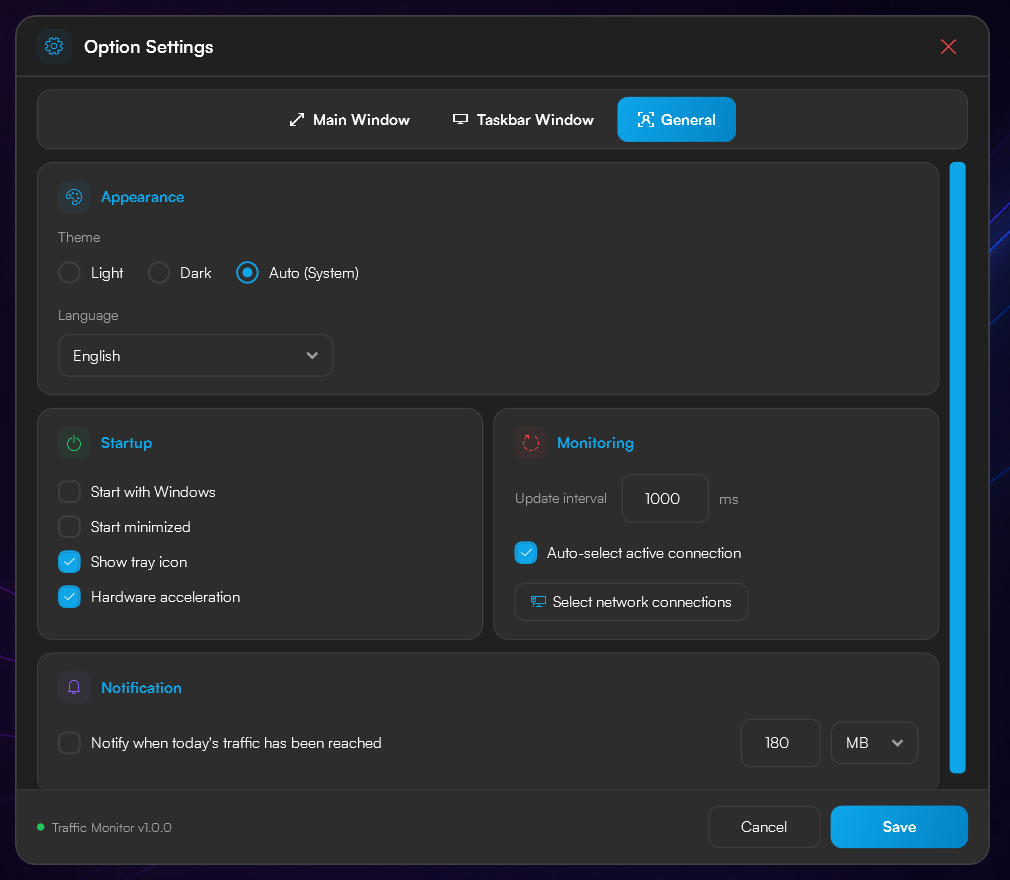

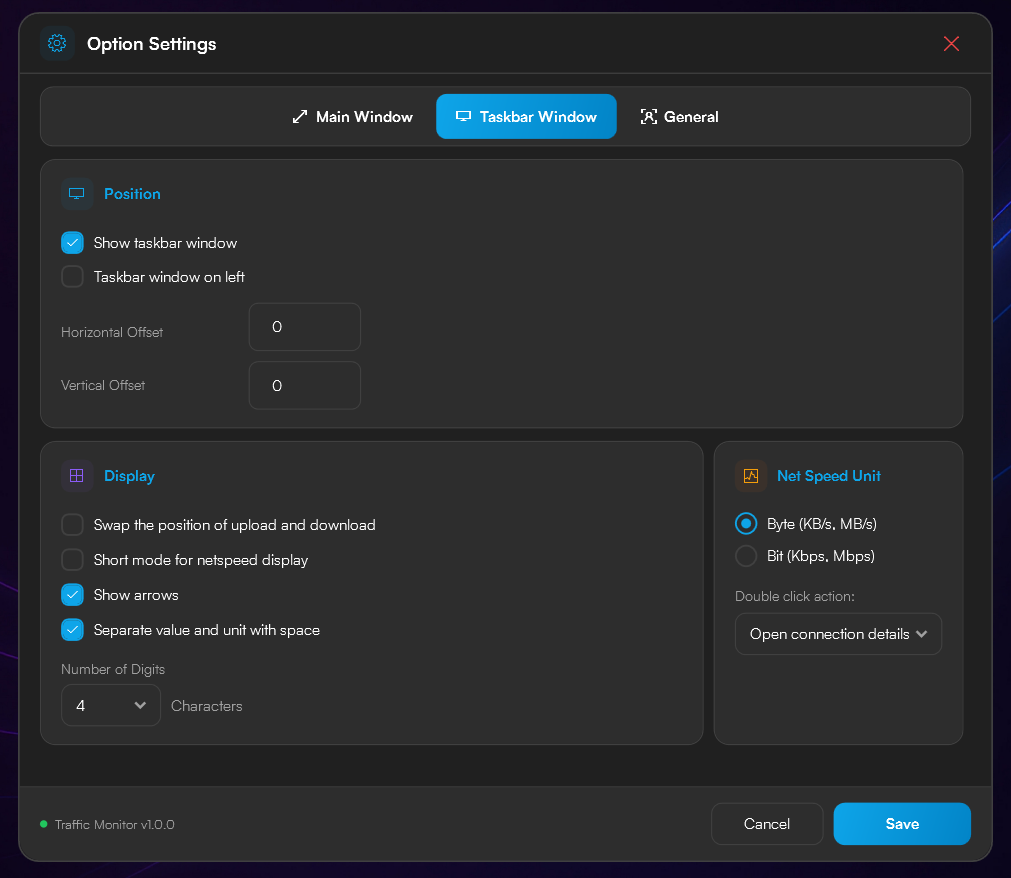

OptionsWindow	Settings panel (Main Window, Taskbar, General tabs)

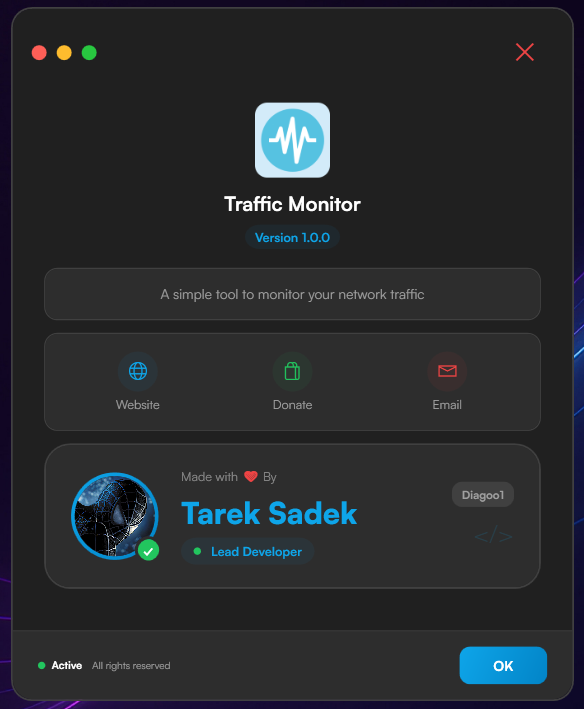

AboutWindow	Credits, links, animated heart

⚙️ Core Services

Service	Description
NetworkService	Polls NetworkInterface every N ms, calculates speeds, manages daily history flush
HistoryService	Persists daily traffic to history.json with atomic file writes
RegistrySettingsService	Loads/saves all settings to Windows Registry
SpeedTestService	Orchestrates full speed test via provider chain
SpeedTestManager	Selects best provider: Cloudflare → Multi-CDN → Local Fallback
CloudflareProvider	Primary speed test via speed.cloudflare.com with geo-server selection
ProcessNetworkService	Reads per-process I/O counters via Win32 + TCP/UDP table PIDs
ToastManager	Floating overlay notification system with animations and RTL support

🎨 Theming System

Component	Description
ThemeManager	Light/Dark/Auto mode, listens to Windows WM_SETTINGCHANGE, saves to registry
App.xaml	Dynamic resource dictionary with full light/dark color token sets
GlobalFontFamily	Per-language font switching (Satoshi, 29LT Bukra, Stem-Regular)

---

🌍 Language Support

Language	Code	RTL
English	en	❌
العربية (Arabic)	ar	✅
Español (Spanish)	es	❌
Français (French)	fr	❌
Русский (Russian)	ru	❌

Language is stored in HKEY_CURRENT_USER\SOFTWARE\TrafficMonitor\Language and can be changed live from Options without restarting.

---

🔧 Registry Keys

All settings are stored under: HKEY_CURRENT_USER\SOFTWARE\TrafficMonitor

Key	Type	Description
Language	String	en, ar, es, fr, ru
ThemeMode	Integer	0 = Light, 1 = Dark, 2 = Auto
Opacity	Double	Window transparency (30–100)
UpdateInterval	Integer	Polling interval in milliseconds
ShowTaskbarWindow	Integer	1 = show embedded taskbar widget
AutoSelect	Integer	1 = auto-select best network adapter
ShowTrayIcon	Integer	1 = show system tray icon
TrafficTipEnable	Integer	1 = enable daily traffic limit alert
TrafficTipValue	Integer	Limit value (in MB or GB)
StartWithWindows	Integer	1 = add to startup registry

---

📁 Project Structure

TrafficMonitor/
│
├── App.xaml / App.xaml.cs           ← Application entry, tray, context menu, language engine
├── MainWindow.xaml / .cs            ← Desktop overlay window
├── TaskbarWindow.xaml / .cs         ← Taskbar-embedded widget (Win32 SetParent)
│
├── Views/
│   ├── SpeedTestWindow              ← Speed test with animated gauge
│   ├── ProcessNetworkWindow         ← Per-process traffic monitor
│   ├── HistoryWindow                ← Traffic history list + calendar
│   ├── NetworkInfoWindow            ← Network adapter details
│   ├── OptionsWindow                ← Full settings panel
│   └── AboutWindow                  ← About / credits
│
├── Services/
│   ├── NetworkService               ← Core traffic polling engine
│   ├── HistoryService               ← JSON-based history persistence
│   ├── RegistrySettingsService      ← Settings load/save (Registry)
│   ├── SpeedTestService             ← Speed test orchestrator
│   ├── SpeedTestManager             ← Provider selection
│   ├── CloudflareProvider           ← Cloudflare speed test + geo-server selector
│   ├── MultiCdnProvider             ← CDN fallback (OVH, Hetzner, etc.)
│   ├── LocalFallbackProvider        ← Offline ping-based estimation
│   ├── GeoServerSelector            ← Nearest server selection by GPS distance
│   ├── ProcessNetworkService        ← Win32 TCP/UDP table + I/O counters
│   └── ToastManager                 ← Animated overlay notifications
│
├── Models/
│   ├── NetworkData                  ← Live speed/today data model
│   ├── HistoryData                  ← Daily history entry
│   └── SettingsData                 ← All app settings (with Clone())
│
├── Themes/
│   └── ThemeManager                 ← Light/Dark/Auto engine
│
├── Lang/
│   ├── Lang-EN.xaml
│   ├── Lang-AR.xaml
│   ├── Lang-FR.xaml
│   ├── Lang-ES.xaml
│   └── Lang-RU.xaml
│
└── Assets/
    ├── Icons/
    ├── Avatars/
    └── Fonts/

---

🔬 Technical Highlights

• Taskbar embedding via SetParent() Win32 API — the widget is a real child window of Shell_TrayWnd with automatic DPI-aware positioning
• Auto theme detection by hooking WM_SETTINGCHANGE from a hidden message-only window
• Named pipe IPC for single-instance enforcement
• Atomic history writes using .tmp → rename to prevent data corruption
• Per-process I/O tracking using GetExtendedTcpTable, GetExtendedUdpTable, and GetProcessIoCounters Win32 APIs
• Geo-aware speed test server selection using Haversine distance calculation against 30+ global Cloudflare edge locations
• RTL-aware toast notifications with slide-in/out animations that flip direction for Arabic

---
