All large frontend game client/server files are not included in the GitHub repository due to size limits.
Please download all build .zip files if possible. They are provided in the Release section:
Instructions:
- Download and unzip each file in the root directory of the project.
- After extraction, your folder structure should match the repository structure.
- Run
chmod +x ./scripts/local-dev-start.shand then./scripts/local-dev-start.shto launch the full system locally.
This ensures that
./scripts/local-dev-start.shcan find all necessary files and run the complete XFighterZone system.
# Clone this repository and run locally
git clone https://github.com/2703roy/LineraOrchestrator_XFighterZone.git
cd LineraOrchestrator_XFighterZone
# Run script to complete system (LineraOrchestrator + Game Server)
chmod +x ./scripts/local-dev-start.sh
./scripts/local-dev-start.sh
Wait until you see the following message in the logs:
XFighterZone Docker setup completed successfully!
# Test basic local endpoints when finish setup Localhost + Docker
curl http://localhost:5290/health
curl http://localhost:5290/linera/linera-config
curl http://localhost:5290/linera/user/list
curl http://localhost:5290/linera/get-leaderboard-data
- Full debugging capabilities
- Direct Linera GraphQL access (port 8080)
- Game Client: http://localhost:5173
- Fastest response times, easy run with Docker
For clients, demo & production testing.
🎮 WebGL Game Client Live Demo: https://xfighterzone.com/game/
# Test the live application (accessible globally)
curl -X POST https://api.xfighterzone.com/linera/start-linera-node
curl -X GET https://api.xfighterzone.com/linera/linera-config
curl -X GET https://api.xfighterzone.com/linera/user/list
curl -X GET https://api.xfighterzone.com/linera/get-leaderboard-data- Cloudflare Tunnel (no open ports required)
- Automatic SSL/TLS encryption
- Global CDN & DDoS protection
- Multi-chain Conway Testnet integration
All test commands Orchestrator: all-test-commands.md.
Create a new publisher chain & user chain data on Docker
cd LineraOrchestrator_XFighterZone
chmod +x TestScripts/reset_data.sh
./TestScripts/reset_data.sh
| Environment | Response Time | Availability | Features |
|---|---|---|---|
| Live Demo | ~200ms | Ready | Production |
| Localhost | ~50ms | Local | Full debugging |
⚡ Publisher chain / Appchains
- Publisher Chain ID:
07db9ad3cf3cc818ed1d5ce543f0889420209100aef2b22795a6409fe02d97fa - XFighter App:
a5f73711b4425e1e3c6d75680d9112b071fa4ae4dcbc095e07e67fdd25418017 - Leaderboard App:
896f0c19a9fe7357cbbf64cb9cb1f122b9d825fb0b03fc6fae0c5da40ee3e832 - Tournament App:
ed485ccdc113f162ca54f8e2ed87f3be9e6989bd5155b20c099af528815701e6 - Fungible Token App:
a52b5122a22eb7a6e7bba00adfa7800c3c324a2f18c81622f62c2bbfe868535a - Friend App:
09c6e33c9e0b507aa969abd0c52dc5e42336981683c1fa2a6bfaa96438fffb42
| Layer | Technology |
|---|---|
| Blockchain | Linera Protocol Conway Testnet |
| Smart Contracts | Rust 1.86.0, Linera SDK v0.15.5 |
| Orchestrator | C#, ASP.NET, GraphQL Client |
| Infrastructure | Docker, Multi-wallet Management, Cloudflare Tunnel |
| Frontend | Unity Client WebGL: localhost:5173, Live-Demo |
| Database | RocksDB (Linera Native) |
| Wave | Focus | Status |
|---|---|---|
| Wave 1 | MVP Foundation: Core Gameplay, On-chain Integration | ✅ Complete |
| Wave 2 | Multiplatform Support, Friend System, Hero System, Normal/Rank Modes | ✅ Complete |
| Wave 3 | Tournament Expansion, User Chains, Social on-chain features & Cross-chain Betting | ✅ Complete |
| Wave 4 | Metaverse Lobby, Prediction Bet System & Cross-chain Asset Management | 🔄 In Progress |
| Wave 5 | Marketplace, Quest System & Advanced Prediction Pools | 🔄 In Progress |
| Wave 6 | Full Metaverse: Decentralization & Social Features | ⏳ Planned |
- Environment 1: Live Demo Production
- Environment 2: Local Development & Testing
- Multi-chain architecture with user chains
- Complete cross-chain betting system
- User global metrics / User profile
- Tournament and Leaderboard management with multi-season support
- Social features with friend system
- Decentralized economy with Fungible Token integration
- Real-time gameplay with good performance for WebGL
Details upgrades: CHANGELOG.md.
Multi-Chain Gaming Infrastructure
┌───────────────────────────────────────────────────────────────────────────────────────────────┐
│ PUBLISHER CHAIN │
├──────────────┬──────────────┬──────────────┬──────────────┬──────────────┬────────────────────┤
│ TOURNAMENT │ LEADERBOARD │ XFIGHTER │ FUNGIBLE │ FRIEND │ XFIGHTER │
│ APP │ APP │ APP │ TOKEN APP │ XFIGHTER │ (Game Logic) │
├──────────────┼──────────────┼──────────────┼──────────────┼──────────────┼────────────────────┤
│ - Seasons │ - Rankings │ - Match Flow │ - Token Mgmt │ - Social │ - Real-time fights │
│ - Brackets │ - Stats │ - Score Sync │ - Transfers │ - FriendReq │ - Match meta store │
│ - Betting │ - Leaderboard│ - Chain Mgmt │ - Balances │ - Graph Sync │ - Result messages │
│ - Payouts │ - Rewards │ - FactoryOps │ │ │ │
└──────────────┴──────────────┴──────────────┴──────────────┴──────────────┴────────────────────┘
│ │ │ │ │
│ Cross-app │ Cross-app │ Cross-chain │ Cross-chain │ Cross-chain
│ calls │ calls │ messages │ transfers │ messages
▼ ▼ ▼ ▼ ▼
┌───────────────────────────────────────────────────────────────────────────────────────────────┐
│ USER CHAINS │
├──────────┬──────────┬──────────┬──────────┬──────────┬────────────────────────────────────────┤
│ USER 1 │ USER 2 │ USER 3 │ USER 4 │ USER N │ ... │
│ CHAIN │ CHAIN │ CHAIN │ CHAIN │ CHAIN │ │
├──────────┼──────────┼──────────┼──────────┼──────────┼────────────────────────────────────────┤
│ UserXF │ UserXF │ UserXF │ UserXF │ UserXF │ │
│ Local Tournament │ Local Fungible Token│ Local FriendXFighter │ │
└──────────┴──────────┴──────────┴──────────┴──────────┴────────────────────────────────────────┘
SETUP & REGISTRATION
1. Deploy Tournament Main on Publisher Chain
2. Each user initializes UserXFighter on their own chain
3. UserXFighter auto-registers to Tournament Local
TOURNAMENT MANAGEMENT
1. Admin starts a season (e.g., "Summer Championship")
2. Admin sets participant list & bracket
3. Tournament stores season metadata
BETTING FLOW (Userchain → Tournament → Userchain)
User Chain → Publisher Chain Cross-chain Betting:
1. Userchain → UserXFighter: Send Placebet crosschain message to Tournament
2. UserXFighter → Fungible Token: Transfer 100 tokens to Tournament Owner
3. UserXFighter → Tournament Local: PlaceBet operation (CALL APPLICATION)
5. Tournament Main saves bet to state with user chain local transaction
MATCH SETTLEMENT & PAYOUT
1. Admin → Tournament Main: SettleMatch(match_id="MATCH_1", winner="p1")
2. Tournament Main:
- Find all winning bets
- Send payouts via Fungible Token to users
- Send cross-chain payout messages to User chains
3. Tournament Local receives message → calls UserXFighter
4. UserXFighter updates transaction status: "paid" → "won/lost"
SOCIAL FEATURES
1. Userchain → UserXFighter: SendFriendRequest(other_user_chain)
2. UserXFighter → FriendXFighter UserXFighter → Userchain: Call Crosschain-message to each other
3. Friend system manages friend lists, match chain history, user metrics & friend profiles
- Cross-app Calls: Tournament calls Fungible for payouts; Xfighter calls Leaderboard for score updates.
- Cross-chain Messages: User chains send PlaceBet messages to Tournament; Tournament sends Payout messages to User chains.
- Cross-chain Transfers: Fungible Token handles token movements between chains for bets and winnings.
- Social Flow: FriendXFighter manages friend requests and updates across user chains via cross-chain messages.
Each browser tab represents a separate player 1. Launch Client
- Player opens the game at: http://localhost:5173
- To simulate multiple users, open multiple tabs (e.g., Player test1 and test2).
2. Login
- Each tab logs in with a separate test account.
- A unique wallet, chain, keystore, and storage are automatically created per user.
3. Play Matchmaking (PvP)
When a player clicks Play Matchmaking: The client sends a matchmaking calling to the Orchestrator request match chainID.
When two players match:
- A duel session is created with match chainID
- Both players receive the same match chainID & fighter data
- The fight runs deterministically on the client
- Submit match send cross-chain message to publisher and leaderboard appchain
4. Submit Result
The Leaderboard app updates:
- Auto-updated as players win/lose, total match, winrate
- All recent duels store on global leaderboard
- Fully verifiable across microchains
5. Check Profile Features
- Friend List
- Match History, User Stats
- Add friend, Remove friend
- Accept requests
- Show friend status (online/offline), check friend profile onchain
1. Launch Admin:
- Admin runs the Tournament Orchestrator UI at: http://localhost:5174
- Admin uses tournament code (example): `18124`
2. Tournament Setup
1. Start Tournament: Validate Top 8 from Leaderboard & Initializes the tournament session.
2. Generate Brackets
- Quarterfinal → Semifinal → Final
- Bracket seeds follow Leaderboard rank.
3. Run Tournament
For each match in the bracket:
Admin calls Start Match
Two users play PvP using the normal matchmaking → but with forced pairing
Results are pushed back to Tournament App
4. Progress Tournament
- After each match:
- Tournament App updates bracket winners
- Continues until the final champion is determined
5. End Tournament
- Admin clicks End Tournament:
- Winner / Runner Up is auto recorded onchain
- Rewards distributed NFT Trophies (Wave4)
- Tournament marked as completed
- XFighterZone Plan document: [Google Drive]

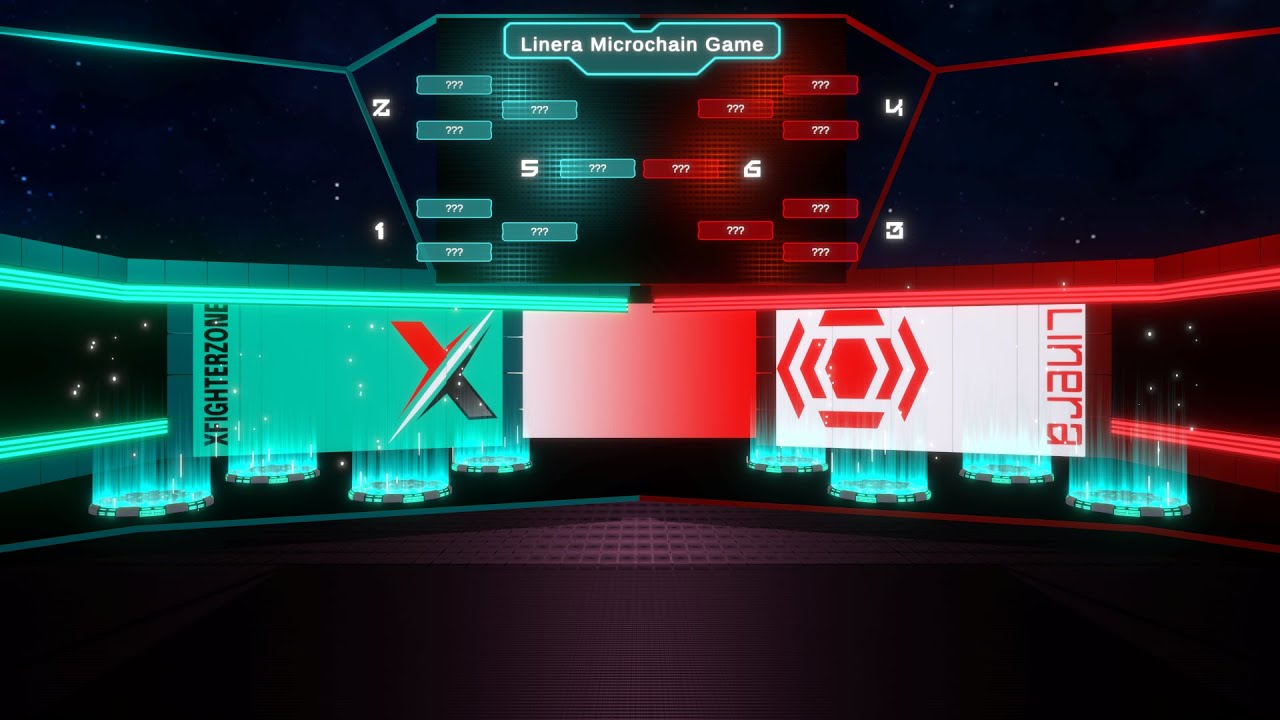

- Full Playlists Buildathon Demo: https://youtu.be/tf6PkybCmtI?si=ZZ2fSCO7kMLJCqa5
Team: Roystudios
Discord: roycrypto
Author: roycrypto
